Part 1:  Humanoid animation (HAnim) architecture

Annex B

(informative)

Feature points for the human body

--- HAnim separator bar ---

cube B.1 General

B.1.1 Overview

This annex specifies a list of surface features on the body that can be used for a variety of purposes.

B.1.2 Topics

Table B.1 lists the major topics in this annex.

Table B.1 — Topics



cube B.2 Feature points

HAnim feature point names are derived from the 3D Landmarks defined in the CAESAR project (see [CAESAR]) and the body-measurement landmarks in ISO 7250 (see [ISO 7250]), a widely used set of human measurements that are traditional univariate measures, commonly used in anthropometric surveys.

The listed names have been modified to conform with common anatomical spellings and the naming conventions used in the rest of this document.

The feature point names defined here are the basis for names fields used by Displacer and Site nodes. Suffixes (corresponding to purpose) are appended, and optional prefixes (corresponding to Humanoid name) are prepended, as appropriate for each object.

The positions of the HAnim feature points are indicated using the index values of Table B.2 in the follow-on location diagram Figure B.1.

Table B.2 — Feature points

Index HAnim feature point name CAESAR 2018 name ISO 7250 reference Aliases
0 skull_vertex   5.22 vertex (top of head) skull_tip
1 glabella Glabella 5.6 glabella
2 sellion Sellion 5.15 sellion
3 l_infraorbitale Left Infraorbitale
4 l_tragion Left Tragion 5.20 tragion
5 l_gonion Left Gonion
6 r_infraorbitale Right Infraorbitale 5.13 orbitale
7 r_tragion Right Tragion 5.20 tragion
8 r_gonion Right Gonion
9 supramenton Supramenton
10 cervicale Cervicale (spine 1) 5.3 cervicale
11 adams_apple Adam's Apple
12 suprasternale Suprasternale
13 substernale Substernale
14 l_clavicale Left Clavicale
15 l_acromion Left Acromion 5.2 acromion
16 l_axilla_proximal Left Axilla Proximal   l_axilla_ant
17 l_axilla_distal Left Axilla Distal   l_axilla_post
18 l_axilla_posterior_folds Left Posterior Axillary Folds
19 r_clavicale Right Clavicale
20 r_acromion Right Acromion 5.2 acromion
21 r_axilla_proximal Right Axilla Proximal   r_axilla_ant
22 r_axilla_distal Right Axilla Distal   r_axilla_post
23 r_axilla_posterior_folds Right Posterior Axillary Folds
24 spine_1_middle_back Spine I (middle back)
25 spine_2_lower_back Spine II (lower back)   rib10_midspine
26 waist_preferred_anterior Preferred Waist Anterior
27 waist_preferred_posterior Preferred Waist Posterior
28 l_rib_10 Left 10th Rib 5.8 lowest point of the rib cage
29 l_thelion Left Thelion 5.18 thelion
30 r_rib_10 Right 10th Rib 5.8 lowest point of the rib cage
31 r_thelion Right Thelion 5.18 thelion
32 l_asis Left ASIS 5.7 iliospinale anterius
33 l_iliocristale Left iliocristale 6.1.6 Iliac spine height
34 l_psis Left PSIS
35 r_asis Right ASIS 5.7 iliospinale anterius
36 r_iliocristale Right iliocristale 6.1.6 Iliac spine height
37 r_psis Right PSIS
38 crotch Crotch 5.4 crotch level
39 l_femoral_medial_epicondyles Left Femoral Medial Epicondyles   l_femoral_medial_epicn
40 l_femoral_lateral_epicondyles Left Femoral Lateral Epicondyles   l_femoral_lateral_epicn
41 l_suprapatella Left Suprapatella 5.17 suprapatella
42 l_trochanterion Left Trochanterion
43 r_femoral_medial_epicondyles Right Femoral Medial Epicondyles   r_femoral_medial_epicn
44 r_femoral_lateral_epicondyles Right Femoral Lateral Epicondyles   r_femoral_lateral_epicn
45 r_suprapatella Right Suprapatella 5.17 suprapatella
46 r_trochanterion Right Trochanterion
47 l_tibiale Left Tibiale 5.19 tibiale
48 l_medial_malleolus Left Medial Malleolus
49 l_lateral_malleolus Left Lateral Malleolus
50 l_sphyrion Left Sphyrion
51 r_tibiale Right Tibiale 5.19 tibiale
52 r_medial_malleolus Right Medial Malleolus
53 r_lateral_malleolus Right Lateral Malleolus
54 r_sphyrion Right Sphyrion
55 l_metatarsal_phalanx_1 Left Metatarsal-Phalangeal I   l_metatarsal_pha1
56 l_metatarsal_phalanx_5 Left Metatarsal-Phalangeal V   l_metatarsal_pha5
57 l_dactylion Left Digit II
58 l_calcaneus_posterior Left Posterior Calcaneous   l_calcaneus_post
59 r_metatarsal_phalanx_1 Right Metatarsal-Phalangeal I   r_metatarsal_pha1
60 r_metatarsal_phalanx_5 Right Metatarsal-Phalangeal V   r_metatarsal_pha5
61 r_dactylion Right Digit II
62 r_calcaneus_posterior Right Posterior Calcaneous   r_calcaneus_post
63 l_humeral_lateral_epicondyles Left Humeral Medial Epicondyle   l_humeral_lateral_epicn
64 l_humeral_medial_epicondyles Left Humeral Lateral Epicondyle   l_humeral_medial_epicn
65 l_olecranon Left Olecranon 5.12 olecranon
66 r_humeral_lateral_epicondyles Right Humeral Medial Epicondyle   r_humeral_lateral_epicn
67 r_humeral_medial_epicondyles Right Humeral Lateral Epicondyle   r_humeral_medial_epicn
68 r_olecranon Right Olecranon 5.12 olecranon
69 l_radiale Left Radiale 6.2.9 Elbow-to-elbow
70 l_ulnar_styloid Left Ulnar Styloid 5.21 ulnar stylion
71 l_radial_styloid Left Radial Styloid 5.16 stylion
72 r_radiale Right Radiale 6.2.9 Elbow-to-elbow
73 r_ulnar_styloid Right Ulnar Styloid 5.21 ulnar stylion
74 r_radial_styloid Right Radial Styloid 5.16 stylion
75 l_metacarpal_phalanx_2 Left Metacarpal Phalange Joint II   l_metacarpal_pha2
76 l_metacarpal_phalanx_3 Left Metacarpal III
77 l_metacarpal_phalanx_5 Left Metacarpal Phalange Joint V   l_metacarpal_pha5
78 r_metacarpal_phalanx_2 Right Metacarpal Phalange Joint II   r_metacarpal_pha2
79 r_metacarpal_phalanx_3 Right Metacarpal III
80 r_metacarpal_phalanx_5 Right Metacarpal Phalange Joint V   r_metacarpal_pha5
81 nuchale   5.11 Nuchale
82 l_neck_base
83 r_neck_base
84 navel
85 l_ectocanthus   5.5 ectocanthus
86 r_ectocanthus   5.5 ectocanthus
87 menton   5.9 menton chin
88 mesosternale   5.10 mesosternale
89 opisthocranion   5.14 opisthocranion
90 l_knee_crease   various measurements
91 r_knee_crease   various measurements
92 rear_center_midsagittal_plane   6.1.9 Chest depth
93 buttocks_standing_wall_contact_point   6.1.10 Body depth
94 l_chest_midsagittal_plane   6.1.11 Chest breadth
95 r_chest_midsagittal_plane   6.1.11 Chest breadth
96 l_bideltoid   6.2.8 Shoulder (bideltoid) breadth
97 r_bideltoid   6.2.8 Shoulder (bideltoid) breadth
98 (reserved)
99 (reserved)
100 (reserved)
101 l_carpal_distal_phalanx_1     l_thumb_distal
102 l_carpal_distal_phalanx_2     l_index_distal
103 l_carpal_distal_phalanx_3     l_middle_distal
104 l_carpal_distal_phalanx_4     l_ring_distal
105 l_carpal_distal_phalanx_5     l_pinky_distal
106 r_carpal_distal_phalanx_1     r_thumb_distal
107 r_carpal_distal_phalanx_2     r_index_distal
108 r_carpal_distal_phalanx_3     r_middle_distal
109 r_carpal_distal_phalanx_4     r_ring_distal
110 r_carpal_distal_phalanx_5     r_pinky_distal
111 l_tarsal_distal_phalanx_1     l_forefoot
112 l_tarsal_distal_phalanx_2     l_digit2
113 l_tarsal_distal_phalanx_3
114 l_tarsal_distal_phalanx_4
115 l_tarsal_distal_phalanx_5     l_tarsal_interphalangeal_pha5
116 r_tarsal_distal_phalanx_1     r_forefoot
117 r_tarsal_distal_phalanx_2     r_digit2
118 r_tarsal_distal_phalanx_3
119 r_tarsal_distal_phalanx_4
120 r_tarsal_distal_phalanx_5     r_tarsal_interphalangeal_pha5
landmark feature points

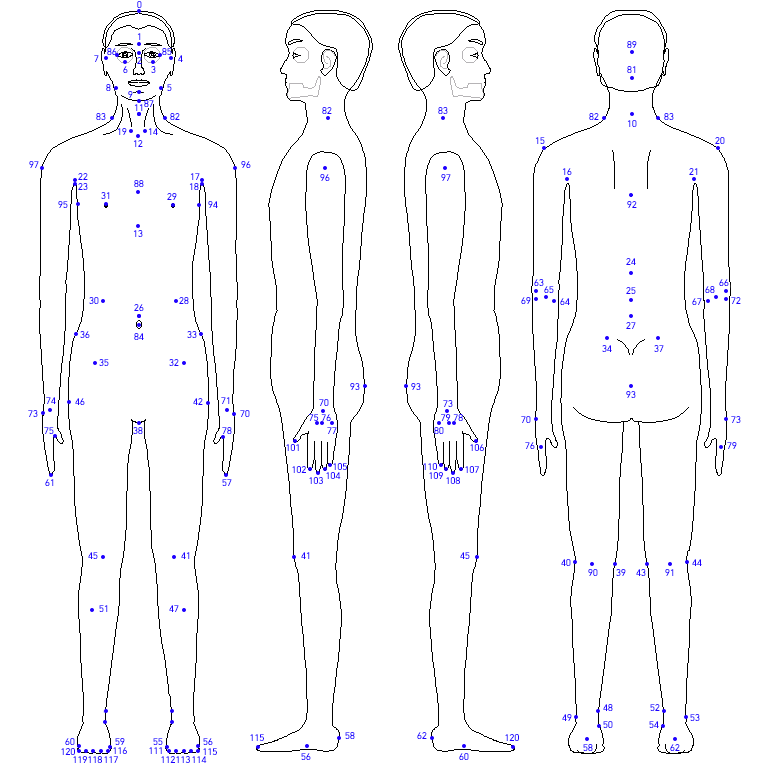

Figure B.1 — Feature points on the human body
