[x3d-public] Links
John Carlson
yottzumm at gmail.com
Sun Jan 22 04:15:15 PST 2023
On Sun, Jan 22, 2023 at 3:15 AM John Carlson <yottzumm at gmail.com> wrote:
> Okay. We can go through schema on sourceforge:
>
>
> https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/specifications/x3d-4.0.xsd
>
Wrong. vl5 is not parented by sacroiliac.
<xs:enumeration value="vl5">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="index" type="xs:integer"
fixed="59"/>
<xs:attribute name="default" type="SFVec3f"
fixed="0.0028 1.0568 -0.0776"/>
<xs:attribute name="parent"
type="hanimJointNameValues" fixed="sacroiliac"/>
<xs:attribute name="loa" type="loaType" fixed="1"/>
</xs:appinfo>
<xs:documentation
source="https://en.wikipedia.org/wiki/Vertebral_column"/>
</xs:annotation>
</xs:enumeration>
vc7 is not l_sternoclavicular's parent
<xs:enumeration value="l_sternoclavicular">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="index" type="xs:integer"
fixed="91"/>
<xs:attribute name="default" type="SFVec3f"
fixed="0.0820 1.4488 -0.0353"/>
<xs:attribute name="parent"
type="hanimJointNameValues" fixed="vc7"/>
<xs:attribute name="loa" type="loaType" fixed="2"/>
</xs:appinfo>
<xs:documentation
source="https://en.wikipedia.org/wiki/Sternoclavicular_joint"/>
</xs:annotation>
</xs:enumeration>
vc7 is not r_sternoclavicular's parent
<xs:enumeration value="r_sternoclavicular">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="index" type="xs:integer"
fixed="119"/>
<xs:attribute name="default" type="SFVec3f"
fixed="-0.0694 1.4600 -0.0330"/>
<xs:attribute name="parent"
type="hanimJointNameValues" fixed="vc7"/>
<xs:attribute name="loa" type="loaType" fixed="2"/>
</xs:appinfo>
<xs:documentation
source="https://en.wikipedia.org/wiki/Sternoclavicular_joint"/>
</xs:annotation>
</xs:enumeration>
X3DUOM:
>
>
> https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/specifications/X3dUnifiedObjectModel-4.0.xml
>
Wrong. vl5's parent is humanoid_root.
<enumeration value="vl5" index="59" default="0.0028 1.0568 -0.0776" parent="
sacroiliac" loa="1" documentation="
https://en.wikipedia.org/wiki/Vertebral_column"/>
l_sternoclavicular's parent is vt1.
<enumeration value="l_sternoclavicular" index="91" default="0.0820 1.4488
-0.0353" parent="vc7" loa="2" documentation="
https://en.wikipedia.org/wiki/Sternoclavicular_joint"/>
r_sternoclavicular's parent is vt1.
<enumeration value="r_sternoclavicular" index="119" default="-0.0694 1.4600
-0.0330" parent="vc7" loa="2" documentation="
https://en.wikipedia.org/wiki/Sternoclavicular_joint"/>
>
> Hierarchy:
>
>
> https://www.web3d.org/documents/specifications/19774/V2.0/Architecture/concepts.html#Hierarchy4
>
vl5 is not a sibling of r_hip, clearly shown below.
[image: image.png]

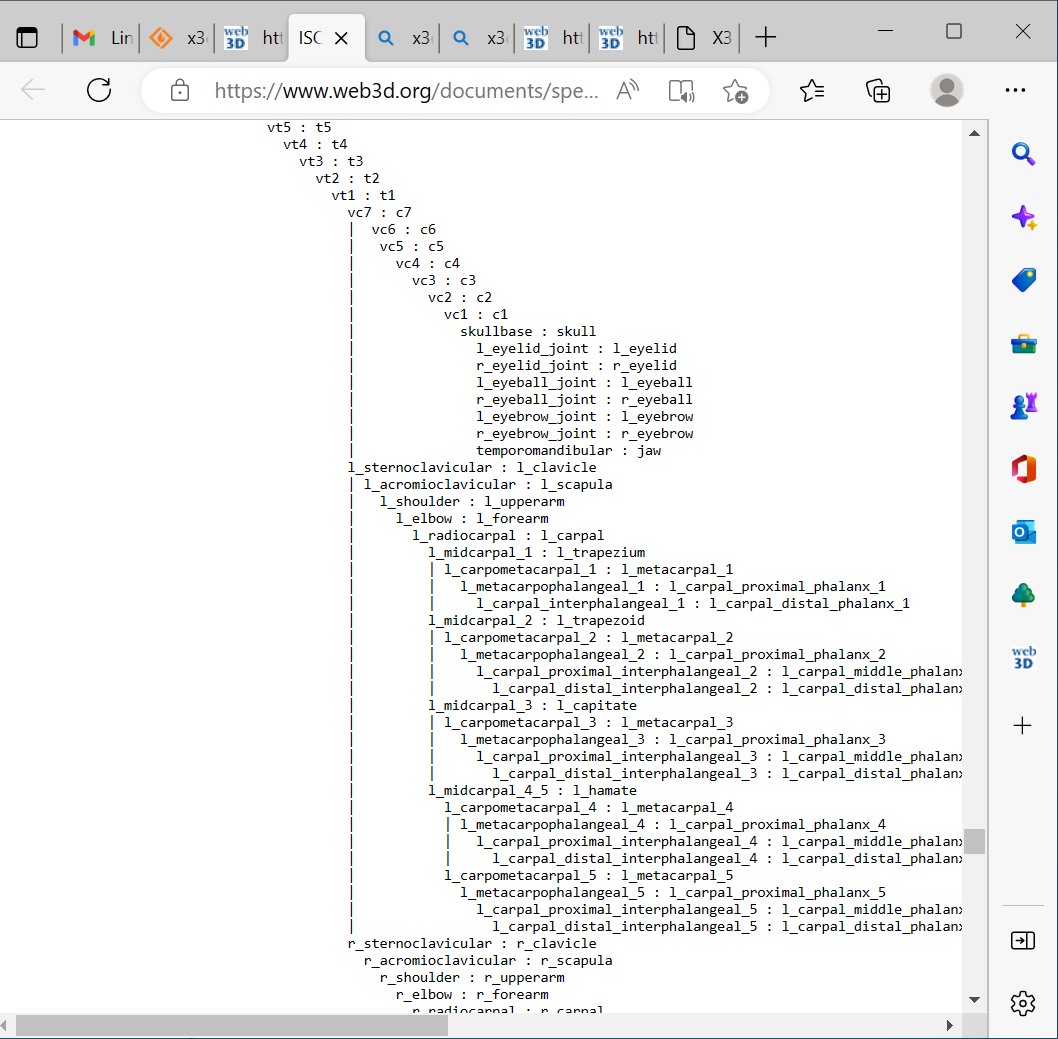

vc7, l_sternoclavicular and r_sternoclavicular are siblings of the vt1
parent.
[image: image.png]
>
> Then there’s schematron rules:
>
> https://www.web3d.org/x3d/tools/schematron/X3dSchematronValidityChecks.sch
>
>
<report test="$isHAnim2 and (@name='vl5') and
parent::HAnimJoint[not(@name='sacroiliac')]" role="warning">
<
<name/>
DEF='
<value-of select="@DEF"/>
' name='
<value-of select="@name"/>
'/> has parent HAnimJoint name='
<value-of select="parent::HAnimJoint/@name"/>
' rather than expected parent name='sacroiliac', recommend checking model
</report>
I believe that this is the report that sacroiliac is supposedly vl5's
parent.
Suggested change: Look for the parent to be the HAnimHumanoid element,
name='humanoid_root'.
Other schematron rules (vc7 should be vt1 in both cases):
<report test="$isHAnim2 and (@name='l_sternoclavicular') and
parent::HAnimJoint[not(@name='vc7')]" role="warning">
<
<name/>
DEF='
<value-of select="@DEF"/>
' name='
<value-of select="@name"/>
'/> has parent HAnimJoint name='
<value-of select="parent::HAnimJoint/@name"/>
' rather than expected parent name='vc7', recommend checking model
</report>
<report test="$isHAnim2 and (@name='r_sternoclavicular') and
parent::HAnimJoint[not(@name='vc7')]" role="warning">
<
<name/>
DEF='
<value-of select="@DEF"/>
' name='
<value-of select="@name"/>
'/> has parent HAnimJoint name='
<value-of select="parent::HAnimJoint/@name"/>
' rather than expected parent name='vc7', recommend checking model
</report>
---
Here are the three parent/child issues we have with schematron. I have
attached a more complete .x3d file.
<HAnimJoint DEF='hanim_l_sternoclavicular' name='l_sternoclavicular'/> has
parent HAnimJoint name='vt1' rather than expected parent name='vc7',
recommend checking model
<HAnimJoint DEF='hanim_vl5' name='vl5'/> has parent HAnimJoint
name='humanoid_root' rather than expected parent name='sacroiliac',
recommend checking model
<HAnimJoint DEF='hanim_r_sternoclavicular' name='r_sternoclavicular'/> has
parent HAnimJoint name='vt1' rather than expected parent name='vc7',
recommend checking model
You will find 'rather than expected parent' in 3 places in the schematron
log, stemming from misunderstandings of the standard LOA4 hierarchy.
I hope that this information, along with Joe's excellent writeup, will
prompt changes in the Schema, etc.
John
> I will likely get up in an hour or so and fill in information, but it
> would probably be easiest to simply for each of us to check? Run
> JohnJoint2.x3d through the validator, make sure it passes schematron, then
> ask why it doesn’t.
>
> This wild goose chase ends at the standard, the schematron messages and
> the .x3d files.
> X3DUOM and XML Schema will be shown wrong IMO, once every agrees what the
> standard says.
>
> I have not really reviewed the above links as the best link, instead, I’ve
> preferred version control.
>
> On Fri, Jan 20, 2023 at 7:25 PM John Carlson <yottzumm at gmail.com> wrote:
>
>> I’m ok with tailbone being child of root.
>>
>> John
>>
>> On Fri, Jan 20, 2023 at 7:21 PM John Carlson <yottzumm at gmail.com> wrote:
>>
>>> The only thing i am struggling with is the tailbone, and what its parent
>>> is.
>>>
>>> Jo
>>>
>>
