[x3d-public] [x3dom-users] PointProperties in X_ITE

[John Carlson]

It must be full moon, because this message popped up when I was looking for
PointProperties.  I wonder if this was ever solved?

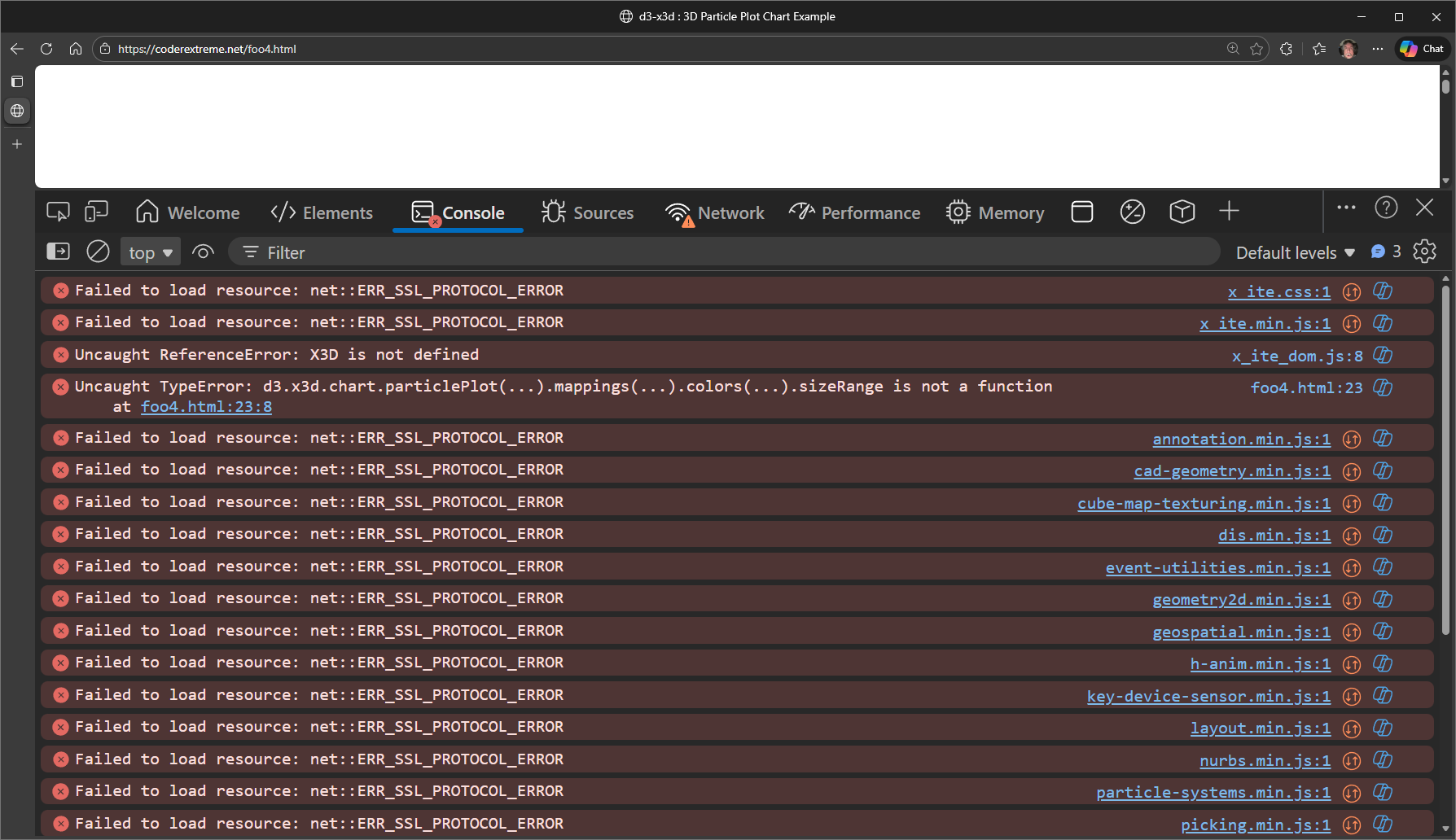

See attached console log:

[image: image.png]

On Fri, Nov 22, 2019 at 4:44 PM James Saunders <james at saunders-family.net>
wrote:

> HI John,
>
> Thanks for looking.
>
> One reason why the reason why the HTML file you have built does not work
> is because it is failing to load d3-x3d:
> In the html file header:
>   <script src="../../../dist/d3-x3d.js"></script>
> Needs swapping for:
>    <script src="
> https://raw.githack.com/jamesleesaunders/d3-x3d/master/dist/d3-x3d.js
> "></script>
>
> It also needs D3.
>
> Thanks anyway. All the best,
>
> Jim
>
> On Fri, Nov 22, 2019 at 4:54 AM <yottzumm at gmail.com> wrote:
>
>> I copied the DOM document from “Elements” into foo4.html and got the
>> following:
>>
>>
>>
>> Uncaught TypeError: Cannot read property 'chart' of undefined
>>
>>
>>
>> I don’t know why the original code doesn’t show the same error, but
>> here’s foo4.html attached.
>>
>>
>>
>> John
>>
>>
>>
>> Sent from Mail <https://go.microsoft.com/fwlink/?LinkId=550986> for
>> Windows 10
>>
>>
>>
>> *From: *yottzumm at gmail.com
>> *Sent: *Thursday, November 21, 2019 10:39 PM
>> *To: *James Saunders <james at saunders-family.net>; X3D Graphics public
>> mailing list <x3d-public at web3d.org>; x3dom users mailing list
>> <x3dom-users at lists.sourceforge.net>
>> *Subject: *RE: [x3dom-users] PointProperties in X_ITE
>>
>>
>>
>> Your response is null????
>>
>>
>>
>> See console.
>>
>>
>>
>> John
>>
>>
>>
>> Sent from Mail <https://go.microsoft.com/fwlink/?LinkId=550986> for
>> Windows 10
>>
>>
>>
>> *From: *James Saunders <james at saunders-family.net>
>> *Sent: *Thursday, November 21, 2019 5:00 PM
>> *To: *X3D Graphics public mailing list <x3d-public at web3d.org>; x3dom
>> users mailing list <x3dom-users at lists.sourceforge.net>
>> *Subject: *[x3dom-users] PointProperties in X_ITE
>>
>>
>>
>> Hi All,
>>
>>
>>
>> I appreciate the PointProperties node is a new proposal in v4 and at he
>> moment it has not yet been implemented in x3dom. However I see this is
>> implemented in x_ite (
>> http://create3000.de/users-guide/components/shape/pointproperties/).
>>
>>
>>
>> I am trying to use PointProperties to get larger particles on the
>> following chart:
>>
>>
>> https://raw.githack.com/jamesleesaunders/d3-x3d/ScatterPlot/examples/X_ITE/chart/ParticlePlot.html
>>
>>
>>
>> <Shape class="particles">
>>
>>   <Appearance>
>>
>>     <PointProperties colorMode="POINT_COLOR" pointSizeMinValue="1"
>> pointSizeMaxValue="5" pointSizeScaleFactor="100"></PointProperties>
>>
>>   </Appearance>
>>
>>   <PointSet>
>>
>>     <Coordinate point="4.444444444444445 22.22222222222222
>> 17.77777777777778 ...."></coordinate>
>>
>>     <Color color="0.8431 0.1882 0.1529 ...."></color>
>>
>>   </PointSet>
>>
>> </Shape>
>>
>>
>>
>> But the points still only come out as single pixels?
>>
>> What am I doing wrong?
>>
>> I want to make the particles (points) larger.
>>
>>
>>
>> I can see PointProperties working here:
>>
>>
>> https://www.web3d.org/x3d/content/examples/Basic/Points/ArchimedesPointPropertiesIndex.html
>>
>>
>>
>> Jim
>>
>>
>>
>>
>>
>>
>>
>
