[x3d-public] InlineGeometry node and PLY format support in Castle Game Engine
Don Brutzman
don.brutzman at gmail.com
Thu Apr 9 19:11:24 PDT 2026
Not a spec problem. Level 1 is written to provide options for Interchange
profile, namely minimal support on minimal platforms.
Thanks for checking Joe... Nothing we have to worry about here.
all the best, Don
--
X3D Graphics, Maritime Robotics, Distributed Simulation
Relative Motion Consulting https://RelativeMotion.info
On Thu, Apr 9, 2026 at 4:42 PM Joe D Williams <joedwil at earthlink.net> wrote:
> OK, so IFS lists two versions of creaseAngle
>
>
>
> Table 13.2 — Geometry3D component support levels
> Level 2
> IndexedFaceSet
> Core 1
> Grouping 1
> Rendering 1
> Shape 1
> For creaseAngle, only 0 and π radians supported
>
>
> except:
>
> 13.3.6 IndexedFaceSet
> SFFloat [] creaseAngle 0 [0,∞)
>
>
>
> and,
>
>
>
> Table 11.2 — Rendering component support levels
> IndexedTriangleSet
> Level 3
> Core 1
> Grouping 1
> All fields fully supported.
> (No creaseAngle)
>
>
>
> OK, but IFS creaseAngle technically ends up 0 to pi whatever you put in
> there,
>
> but by experiment it seems to work in that range.
>
> and the note should be removed from 13.2 and moved to ITS?
>
>
>
> Thanks,
>
> Joe
>
>
>
>
>
>
>
>
>
>
>
> Table 13.2 — Geometry3D component support levels
> Level 2
> IndexedFaceSet
> Core 1
> Grouping 1
> Rendering 1
> Shape 1
> For creaseAngle, only 0 and π radians supported
>
>
>
> Table 11.2 — Rendering component support levels
> IndexedTriangleSet
> Level 3
> Core 1
> Grouping 1
>
>
>
> Is this a spec problem?
>
> I can be ok with ITS 0 or pi creaseAngle value
>
> but I thought IFS could 0 to pi.
>
> So use know that
>
>
>
>
>
> -----Original Message-----
> From: Don Brutzman <don.brutzman at gmail.com>
> Sent: Apr 9, 2026 3:33 PM
> To: Michalis Kamburelis <michalis at castle-engine.io>
> Cc: Extensible 3D \(X3D\) Graphics public discussion <x3d-public at web3d.org>,
> <joedwil at earthlink.net>
> Subject: Re: [x3d-public] InlineGeometry node and PLY format support in
> Castle Game Engine
>
>
> Good points all in this thread, lots to consider here as we strive for
> simple effectiveness.
>
> Any geometry type might be returned... if there was an <InlineGeometry
> url="MyExpensiveCadModel.x3d#QuadSetOfInterest"/> it seems likely a QuadSet
> would be returned.
>
> A creaseAngle field might lead to much downstream confusion, even if a
> satisfactory specification definition was crafted.
>
> A much-simpler possible field to express author intent: a 'smooth' field
> declaring a hint for applying smooth versus sharp shading, if possible.
>
> - SFBool [in out] smooth TRUE
>
> all the best, Don
> --
> X3D Graphics, Maritime Robotics, Distributed Simulation
> Relative Motion Consulting https://RelativeMotion.info
>
> On Thu, Apr 9, 2026 at 2:12 PM Michalis Kamburelis <
> michalis at castle-engine.io> wrote:
>
>> To Don's idea of "creaseAngle as a suggestion":
>>
>> I'm not against it (and I would support it in CGE as much as we could :)
>> ). But as a hint, it could be problematic, as users will find it is not
>> reliable and could have "wrong expectations".
>>
>>
>> - E.g. X_ITE generates IndexedTriangleSet from PLY mesh, while CGE
>> generates (right now!) IndexedFaceSet. This means that users could have
>> wrong expectations from X_ITE -- creaseAngle, for PLY, in X_ITE would not
>> work.
>>
>>
>>
>> - ( Unless X_ITE changes algorithm to use IndexedFaceSet. But forcing
>> this would be bad -- a browser should have a choice what geometry type to
>> use here, not be forced to use IndexedFaceSet . Which geometry type is more
>> suitable -> depends on internal optimizations. )
>>
>>
>>
>> - If CGE changes our algorithm (which I reserve the right to do! we
>> had in the past occasions when it made sense to change geometry types for
>> terrains), then suddenly we will have bugreports
>> "InlineGeometry.createAngle for PLY worked in Castle Model Viewer version
>> 5, but no longer works in version 6". This will make users unhappy:)
>> Explaining to users that "InlineGeometry.creaseAngle was always supposed to
>> be only a hint, never guarantee" will not be of much help -- because users
>> will then have models that depended on the old behavior, and will consider
>> the new behavior a regression.
>>
>>
>> Also: browsers should be "consistent by default" anyway. We should to
>> "what is expected by given format". Which means that, if PLY models are (by
>> convention) displayed with smooth normals (when no explicit normals are
>> provided) -> then all viewers, X_ITE and CGE, should display them by
>> default with smooth normals. (Which is what happens now, after my change
>> yesterday:) ).
>>
>> IOW, I'm not against InlineGeometry.creaseAngle (as long as default would
>> be "-1" meaning "no override")... but it doesn't achieve that much (we need
>> to make our defaults consistent anyway), and may in fact give wrong
>> expectations to users (when it will work only in certain browsers/versions).
>>
>>
>>
>> To Joe: I'm afraid making the geometry type depending on profile would be
>> surprising to users, and would not really solve the issue discussed here :)
>>
>> Both browsers (X_ITE and CGE) support both geometry types
>> (IndexedTriangleSet and IndexedFaceSet). It's not a question of support.
>> Both browsers choose to load PLY as most optimal format, which may be a
>> different decision for each browser. This should not be influenced by
>> profile of enclosing file, this would be quite non-standard (as the profile
>> also doesn't influence regular Inline).
>>
>> Regards,
>> Michalis
>> On Thursday, April 9th, 2026 at 03:09, Don Brutzman via x3d-public <
>> x3d-public at web3d.org> wrote:
>>
>> Please re-read my suggestions from earlier today. Apologies for not being
>> clearer.
>>
>> I was trying to express that creaseAngle might be a hint from the author,
>> regardless of original inlined geometry mesh type and also independent of
>> the browsers choice of geometry (IFS, triangles, etc.). It is a way for
>> author to express whether smooth rendering is desired.
>>
>> For example, a literal creaseAngle might be literally unusable if browser
>> chooses to return a TriangleSet, but the browser might add Normal values to
>> address smooth/sharp edges.
>>
>> all the best, Don
>> --
>> X3D Graphics, Maritime Robotics, Distributed Simulation
>> Relative Motion Consulting https://RelativeMotion.info
>>
>> On Wed, Apr 8, 2026 at 5:30 PM Joe D Williams via x3d-public <
>> x3d-public at web3d.org> wrote:
>>
>>> Choice of IFS or ITS could be a choice of Profile.
>>>
>>> IFS is simple profile, rendering 1 for IFS and rendering 3 for ITS.
>>>
>>> Joe
>>>
>>> -----Original Message-----
>>> From: Michalis Kamburelis via x3d-public <x3d-public at web3d.org>
>>> Sent: Apr 8, 2026 1:17 PM
>>> To: Holger Seelig <holger.seelig at yahoo.de>
>>> Cc: Michalis Kamburelis <michalis at castle-engine.io>, Extensible 3D
>>> (X3D) Graphics public discussion <x3d-public at web3d.org>
>>> Subject: Re: [x3d-public] InlineGeometry node and PLY format support in
>>> Castle Game Engine
>>>
>>>
>>> Hm, good point about the geometry type and so, the creaseAngle not being
>>> that much useful...
>>>
>>> Indeed the difference in look between X_ITE and CGE is then because of
>>> different geometry choice.
>>>
>>>
>>> - Castle Game Engine converts PLY mesh into IndexedFaceSet, where
>>> the creaseAngle (default 0, so flat shading) decides the look. I've done it
>>> because PLY meshes have polygons and we have already handling for
>>> possibly-concave polygons (which I understand PLY may have) at
>>> IndexedFaceSet. So we generate PLY -> IndexedFaceSet, set
>>> IndexedFaceSet.convex=FALSE, and we're done.
>>>
>>>
>>>
>>> - ( To be clear, this decision is not set in stone. My past
>>> experience with e.g. terrains showed that sometimes changing the generated
>>> primitive/geometry type is useful, for unforeseen reasons :) So this is
>>> _not_ a guarantee that CGE will always read PLY to IndexedFaceSet, and not
>>> e.g. IndexedTriangleSet. )
>>>
>>>
>>>
>>> - If X_ITE converts PLY mesh into IndexedTriangleSet, then
>>> creaseAngle doesn't exist (IndexedTriangleSet.normalPerVertex decides, and
>>> it's either all flat or all smooth).
>>>
>>>
>>>
>>>
>>> Indeed we're not going to reconcile this with creaseAngle.
>>>
>>> I think in the end, it comes down to the underlying formats -- is there
>>> any spec, or just a hint / consensus, how should normals for PLY models be
>>> generated? Does everyone create smooth meshes then, like X_ITE? If the
>>> consensus is to generate smooth normals -> then the fix is just on CGE
>>> side, we can trivially change our PLY -> IndexedFaceSet to set
>>> creaseAngle>=pi and then CGE and X_ITE will be consistent. Seems like this
>>> is the simplest way to go :)
>>>
>>> Hm, done in
>>> https://github.com/castle-engine/castle-engine/commit/bbbfc016ed179b2009cf8194dd692b81adf1f6e3

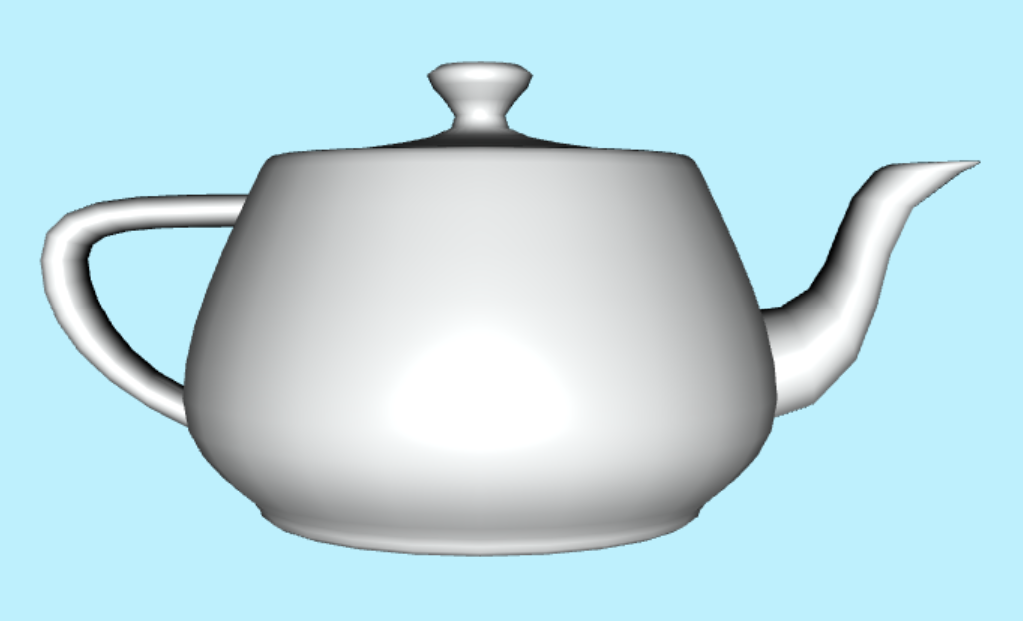

>>> :) PLY teapot from
>>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/TeapotInlineGeometryPlyIndex.html
>>> is now smooth in our rendering.
>>>
>>> Regards,
>>> Michalis
>>>
>>>
>>> On Wednesday, April 8th, 2026 at 21:00, Holger Seelig <
>>> holger.seelig at yahoo.de> wrote:
>>>
>>> If the teapot is faceted in Castle, it’s more likely because a different
>>> geometry was used. X_ITE converts the PLY teapot into an
>>> IndexedTriangleSet, which, as mentioned earlier, does not have a
>>> creaseAngle field.
>>>
>>> If InlineGeometry has a creaseAngle field, it gives the impression that
>>> the creaseAngle can be set for the loaded geometry, but this is only
>>> possible in the rarest of cases.
>>>
>>> Best regards,
>>> Holger
>>>
>>> —
>>> Holger Seelig
>>> holger.seelig at yahoo.de
>>>
>>>
>>> Am 08.04.2026 um 20:49 schrieb Holger Seelig via x3d-public <
>>> x3d-public at web3d.org>:
>>> I would like to point out that only 4 of the 32 X3DGeometryNode's have a
>>> creaseAngle field. On the other hand, why is creaseAngle preferred here?
>>> The solid field or ccw can also be useful, but they are not available on
>>> all X3DGeometryNode's either.
>>>
>>> Best regards,
>>> Holger
>>>
>>> —
>>> Holger Seelig
>>> holger.seelig at yahoo.de
>>>
>>>
>>> Am 08.04.2026 um 18:13 schrieb Michalis Kamburelis via x3d-public <
>>> x3d-public at web3d.org>:
>>> Confirming Don's observations -- the difference in rendering of Teapot
>>> from PLY in
>>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/TeapotInlineGeometryPlyIndex.html
>>> seems to come from difference in creaseAngle.
>>>
>>> In Castle Game Engine, when we load PLY -> we leave
>>> "IndexedFaceSet.creaseAngle" at default in X3D, which is 0, which results
>>> in flat shading (
>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/geometry3D.html#IndexedFaceSet
>>> ).
>>>
>>> Note that PLY files _can_ provide their own, explicit normal vectors. In
>>> which case there would be non inconsistency. But, well, this PLY model (
>>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/teapot.ply
>>> ) does not provide normals. It only has vertex positions.
>>>
>>> Introducing "InlineGeometry.creaseAngle" makes sense to me.
>>>
>>> Internally, I would also allow loading options as URL anchor, so one
>>> could load "xxx.ply#crease-angle=123" thus it would be possible to
>>> influence creaseAngle also for models loaded through "Inline", like
>>> """Inline { url "model.ply#crease-angle=123" />"""
>>>
>>> Compared to Don prose, I would say to allow an option to _don't change
>>> the underlying value (or browser default)_. Because when we inline e.g. X3D
>>> geometry, then (possibly) it already has a useful creaseAngle? So I would
>>> define it like:
>>>
>>> """
>>> InlineGeometry {
>>> ...
>>> creaseAngle initializeOnly -1
>>> }
>>>
>>> creaseAngle determines the the automatic calculation of normal vectors
>>> for the imported geometry. It is only used if all of the below are true:
>>>
>>> 1. Given creaseAngle is >= 0. The default, -1, means to use
>>> creaseAngle specified in the imported model (if the format of it allows
>>> creaseAngle, like X3D allows) or browser-specific default.
>>> 2. Imported geometry results in X3D geometry with creaseAngle, e.g.
>>> in IndexedFaceSet. For other geometry types, like PointSet, creaseAngle is
>>> ignored.
>>> 3. Imported geometry doesn't have explicit normal values. E.g. if
>>> PLY file has explicit normal provided, then these are used, and the
>>> creaseAngle value doesn't matter.
>>>
>>>
>>> """
>>>
>>> Regards,
>>> Michalis
>>>
>>>
>>> On Tuesday, April 7th, 2026 at 23:52, Don Brutzman <
>>> don.brutzman at gmail.com> wrote:
>>>
>>> Thanks for references Michalis. Here is an example test scene.
>>>
>>> - X3D Example Archives: X3D4AM, X3D for Advanced Modeling, Additive
>>> Manufacturing, Teapot Inline Geometry Ply
>>> - Loading a classic teapot model in PLY format
>>> -
>>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/TeapotInlineGeometryPlyIndex.html
>>>
>>> Implementation and evaluation always helps... Note significant
>>> differences in rendering due to implicit choices for *creaseAngle*:
>>>
>>> -
>>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/TeapotInlineGeometryPlyCastle.png
>>> -
>>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/TeapotInlineGeometryPlySunrize.png
>>> <image.png> <image.png>
>>>
>>> Currently the author has no settings to adjust the handling of the mesh.
>>>
>>> Suggestion: might we consider adding creaseAngle as a field for
>>> InlineGeometry node? It is defined in the specification as follows.
>>>
>>> - X3D Architecture 4.1 draft — ISO/IEC 19775-1:202x — 11 Rendering
>>> component
>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/components/rendering.html#CommonGeometryFields> 11.2.3
>>> Common geometry fields
>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/components/rendering.html#CommonGeometryFields>
>>> -
>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/components/rendering.html#CommonGeometryFields
>>>
>>> The *creaseAngle* field affects how default normals are generated. If
>>>> the angle between the geometric normals of two adjacent faces is less than
>>>> the crease angle, normals shall be calculated so that the faces are shaded
>>>> smoothly across the edge; otherwise, normals shall be calculated so that a
>>>> lighting discontinuity across the edge is produced. Crease angles shall be
>>>> greater than or equal to 0.0 angle base units.
>>>
>>> EXAMPLE A crease angle of 0.5 angle base units means that an edge
>>>> between two adjacent polygonal faces will be smooth shaded if the geometric
>>>> normals of the two faces form an angle that is less than 0.5 angle base
>>>> units. Otherwise, the faces will appear faceted.
>>>
>>>
>>> However, typically an author has no idea on what might be an appropriate
>>> value, unless they do extensive sleuthing on an unchanging piece of
>>> geometry. Thus we might pick a default value for *creaseAngle* field
>>> that always results in smooth shading.
>>>
>>> - SFFloat [ ] creaseAngle 3.14159 [0,+inf)
>>>
>>> Further descriptions found in X3D tooltips.
>>>
>>> - X3D Tooltips in English version 4.0 (with X3D version 4.1 draft),
>>> IndexedFaceSet.creaseAngle
>>> <https://www.web3d.org/x3d/tooltips/X3dTooltips.html#IndexedFaceSet.creaseAngle>
>>> -
>>> https://www.web3d.org/x3d/tooltips/X3dTooltips.html#IndexedFaceSet.creaseAngle
>>>
>>> *[creaseAngle accessType initializeOnly
>>> <https://www.web3d.org/x3d/tooltips/X3dTooltips.html#accessType>, type
>>> SFFloat <https://www.web3d.org/x3d/tooltips/X3dTooltips.html#SFFloat> CDATA
>>> <https://www.web3d.org/x3d/tooltips/X3dTooltips.html#CDATA> "0"] [0,+∞)
>>> <https://www.web3d.org/x3d/tooltips/X3dTooltips.html#RangeIntervals>*
>>> creaseAngle defines angle (in radians) for determining whether adjacent
>>> polygons are drawn with sharp edges or smooth shading. If angle between
>>> normals of two adjacent polygons is less than creaseAngle, smooth shading
>>> is rendered across the shared line segment.
>>> *Hint:* in Interchange profile only 0 and π radians supported.
>>> *Hint:* creaseAngle=0 means render all edges sharply,
>>> creaseAngle=3.14159 means render all edges smoothly.
>>> *Hint:* radian units for angular measure
>>> https://en.wikipedia.org/wiki/Radian
>>> all the best, Don
>>> --
>>> X3D Graphics, Maritime Robotics, Distributed Simulation
>>> Relative Motion Consulting https://RelativeMotion.info
>>> <https://relativemotion.info/>
>>>
>>> On Mon, Apr 6, 2026 at 5:26 PM Michalis Kamburelis <
>>> michalis at castle-engine.io> wrote:
>>>
>>>> As for black points reported by John in some PLY files: Fixed.
>>>>
>>>> I added to Castle Game Engine / Castle Model Viewer support for reading
>>>> color values from PLY through alternative properties. Details and links to
>>>> more explanation in commit
>>>> https://github.com/castle-engine/castle-engine/commit/c6d9acc08aa7a20e991b140d1379e265ea496faf
>>>> . Screenshot attached.
>>>>
>>>> Note: All this is doing is adding alternative way to read colors from
>>>> PLY, which lands in X3D per-vertex colors (Color or ColorRGBA node).
>>>>
>>>> I'm not entering the Gaussian Splat discussion in related thread(s) :),
>>>> as I have to educate myself better about Gaussian Splats first. Tomorrow's
>>>> Khronos lecture seems like a good opportunity to start learning.
>>>>
>>>> Regards,
>>>> Michalis
>>>>
>>>>
>>>>
>>>>
>>>>
>>>> On Monday, April 6th, 2026 at 20:49, John Carlson via x3d-public <
>>>> x3d-public at web3d.org> wrote:
>>>>
>>>> Sorry I meant I was able to see black point clouds without color
>>>> (Michalis apparently uses different properties?).
>>>> On Mon, Apr 6, 2026 at 1:00 PM John Carlson <yottzumm at gmail.com> wrote:
>>>>
>>>>> I agree that the PLYs that I worked with weren’t suitable for X3D.
>>>>> Either my parser was off, or there were negative color values, negative
>>>>> scales etc. I thought a second person could look at the same files and make
>>>>> better progress. I was able to view black points clouds (no clouds) from
>>>>> the PLY files in castle. I can probably change the property in the PLY file
>>>>> to achieve color in the point cloud. The point is, I don’t know if there’s
>>>>> standard PLY color properties.
>>>>>
>>>>> Thanks,
>>>>>
>>>>> John
>>>>>
>>>>> On Mon, Apr 6, 2026 at 12:18 AM Don Brutzman <don.brutzman at gmail.com>
>>>>> wrote:
>>>>>
>>>>>> Thank you Michalis for implementing the draft InlineGeometry node.
>>>>>> Having both Castle Game Engine and (already supporting)
>>>>>> X_ITE/Playground/Sunrize is definitely accelerating our design,
>>>>>> implementation and evaluation of LOA-5 bone segments for HAnim. Tests of
>>>>>> your Castle Model Viewer beta release look good on this end.
>>>>>>
>>>>>> Repeating a prior reply: "Gaussian Splat PLYs" (whatever that means)
>>>>>> does not seem like a good use of effort. There is a lot of ongoing
>>>>>> developmental work on gaussian splat formats by various companies that are
>>>>>> nonstandard, inconsistent, possibly unstable, and often proprietary. Some
>>>>>> happen to use .ply as a container. A prudent approach is to wait and see
>>>>>> what glTF does once things stabilize. Using Inline with glTF 2.0 (in json
>>>>>> or glb) is already in X3D 4.0, extension support by browsers is optional,
>>>>>> so that is a reasonable future path if consensus ever emerges.
>>>>>>
>>>>>> The draft X3D specification for InlineGeometry describes rationale
>>>>>> and includes references for the PLY format.
>>>>>>
>>>>>> - X3D Architecture 4.1 draft — ISO/IEC 19775-1:202x — 9
>>>>>> Networking component
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/components/networking.html#InlineGeometry> 9.4.3
>>>>>> InlineGeometry
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/components/networking.html#InlineGeometry>
>>>>>> -
>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/components/networking.html#InlineGeometry 9.4.3
>>>>>> InlineGeometry
>>>>>>
>>>>>> InlineGeometry : X3DGeometryNode, X3DUrlObject {
>>>>>> SFTime [in,out] autoRefresh 0.0 [0,infinity)
>>>>>> SFTime [in,out] autoRefreshTimeLimit 3600.0 [0,infinity)
>>>>>> SFString [in,out] description ""
>>>>>> SFBool [in,out] load TRUE
>>>>>> SFNode [in,out] metadata NULL [X3DMetadataObject]
>>>>>> MFString [in,out] url [] [URI]
>>>>>> }
>>>>>>
>>>>>> InlineGeometry loads geometry from an external file. The result
>>>>>> provides a polygonal mesh, set of lines, point cloud, parametric surface,
>>>>>> or other geometry.
>>>>>>
>>>>>> The *url* field can support loading a variety of file formats
>>>>>> defining polygonal mesh geometry. When the *url* field contains
>>>>>> no values ([]), no default geometry is provided. Required
>>>>>> Recommended support by X3D browsers includes both ASCII and
>>>>>> binary encodings for the STL format (see STL
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/bibliography.html#STL>)
>>>>>> as well as the PLY polygonal geometry format (see PLY
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/bibliography.html#PLY>),
>>>>>> respectively. Other file types can be optionally supported by a browser.
>>>>>> TODO: consider "required support" of STL/PLY formats rather than
>>>>>> "recommended support" since numerous open-source conversion implementations
>>>>>> are available, no IPR considerations pertain, and STL/PLY formats are the
>>>>>> primary use case.
>>>>>>
>>>>>> If the *url* field refers to an X3D file or a VRML97 file, the
>>>>>> first geometry node found in that file (excluding both prototype
>>>>>> declarations and prototype instances) is used to provide the InlineGeometry
>>>>>> contents. X3D browsers shall recognize *url* fields that end with
>>>>>> "#*DEFname*" to mean the geometry node with DEF label of *DEFname*
>>>>>> in the given X3D or VRML97 file.
>>>>>>
>>>>>> The run-time system can support any number of 3D model resource
>>>>>> types as long as those follow the available Model Primary Content Type for
>>>>>> Multipurpose Internet Mail Extensions (MIME) model definition (see
>>>>>> RFC2077
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/references.html#RFC2077>),
>>>>>> provide a registered content type (e.g., model/stl, text/plain etc.) (see
>>>>>> IANA_MEDIA
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/references.html#IANA_MEDIA>
>>>>>> and IANA_STL
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/references.html#IANA_STL>),
>>>>>> and can be determined with some form of content negotiation (see
>>>>>> RFC9110
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/references.html#RFC9110>).
>>>>>> Support is recommended for both text and binary encodings associated with a
>>>>>> given model format, when so defined.
>>>>>>
>>>>>> NOTE Experimental variations of PLY format used for Gaussian
>>>>>> Splat rendering are not expected for InlineGeometry. Such capabilities are
>>>>>> better supported by Inline node loading of glTF models.
>>>>>>
>>>>>> EXAMPLES
>>>>>>
>>>>>> Shape {
>>>>>> geometry InlineGeometry { url [ "MyFavoriteMesh.stl" ] }
>>>>>>
>>>>>> appearance USE FancyPaintAppearance # previously defined
>>>>>> }
>>>>>>
>>>>>> Shape {
>>>>>> geometry InlineGeometry { url [ "HelloWorld.x3d#TextMessage" ] }
>>>>>>
>>>>>> appearance USE FancyPaintAppearance # previously defined
>>>>>> }
>>>>>>
>>>>>> Editors notes.
>>>>>> - Are better authoritative references possible for STL and PLY?
>>>>>> See Mantis 1522 <https://mantis.web3d.org/view.php?id=1522>.
>>>>>> - InlineGeometry results differ from an Inline node, which
>>>>>> produces an X3DChildNode scene subgraph implementing the X3DBoundedObject
>>>>>> interface. An Inline node cannot be used as the *geometry*
>>>>>> field of a Shape.
>>>>>> - Results from browser loading may be any kind of polygonal
>>>>>> mesh or parametric surface (e.g. IndexedFaceSet, TriangleSet, Extrusion,
>>>>>> etc.) but cannot be further manipulated or animated by events from the
>>>>>> scene.
>>>>>> - Direct loading of such geometry files eliminates the need
>>>>>> for prior model conversion into X3D, and adds flexibility when applying
>>>>>> Appearance to the result.
>>>>>> - The "#*DEFname*" syntax directly matches EXTERNPROTO URL
>>>>>> semantics
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/concepts.html#EXTERNPROTOURLSemantics>
>>>>>> considerations. Not requiring IMPORT/EXPORT statements provides greater
>>>>>> backwards compatibility with legacy models, avoiding unnecessary
>>>>>> complications and possible ambiguity.
>>>>>> - Composition of online addresses and parameter values within
>>>>>> a *url* field offers the possibility of invoking an online
>>>>>> server to perform file-format conversions. See email thread [x3d-public]
>>>>>> Inline > type field > for loading / converting / parsing other content
>>>>>> <https://web3d.org/pipermail/x3d-public_web3d.org/2026-March/022355.html>
>>>>>> for further discussion. Such additional functionality supports the use
>>>>>> cases under consideration by Metaverse Standards Forum (MSF) 3D
>>>>>> Web Interoperability
>>>>>> <https://metaverse-standards.org/domain-groups/3d-web-interoperability>
>>>>>> Working Group.
>>>>>>
>>>>>>
>>>>>> Worth reading: the original PLY definition first defined in 1994 by
>>>>>> Greg Turk at Stanford University., references above.
>>>>>>
>>>>>> - [PLY
>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/bibliography.html#PLY>
>>>>>> ]
>>>>>> -
>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/bibliography.html#PLY
>>>>>> - Wikipedia, PLY (file format), 26 February 2026.
>>>>>> https://en.wikipedia.org/wiki/PLY_(file_format)
>>>>>>
>>>>>> and
>>>>>>
>>>>>> 1. Greg Turk. "The PLY Polygon File Format"
>>>>>> <https://web.archive.org/web/20161204152348/http://www.dcs.ed.ac.uk/teaching/cs4/www/graphics/Web/ply.html>.
>>>>>> Archived from the original
>>>>>> <http://www.dcs.ed.ac.uk/teaching/cs4/www/graphics/Web/ply.html>
>>>>>> on 2016-12-04.
>>>>>> 2. Greg Turk. "The PLY Polygon File Format (extended)"
>>>>>> <https://gamma.cs.unc.edu/POWERPLANT/papers/ply.pdf> (PDF).
>>>>>>
>>>>>> and
>>>>>>
>>>>>> - PLY - Polygon File Format
>>>>>> <https://paulbourke.net/dataformats/ply/>
>>>>>> https://paulbourke.net/dataformats/ply
>>>>>>
>>>>>> Improvements to draft specification, especially with implementation
>>>>>> and evaluation, are always welcome.
>>>>>> all the best, Don
>>>>>> --
>>>>>> X3D Graphics, Maritime Robotics, Distributed Simulation
>>>>>> Relative Motion Consulting https://RelativeMotion.info
>>>>>> <https://relativemotion.info/>
>>>>>>
>>>>>> On Sun, Apr 5, 2026 at 6:39 PM John Carlson via x3d-public <
>>>>>> x3d-public at web3d.org> wrote:
>>>>>>
>>>>>>> Hi, Michalis, Seeing Gaussian Splat PLYs renderered with humanoid
>>>>>>> animation would be cool to see. With your expertise in binary formats and
>>>>>>> binary PLY, probably an easy next step!
>>>>>>>
>>>>>>> John
>>>>>>>
>>>>>>> On Sun, Apr 5, 2026 at 8:05 PM Michalis Kamburelis via x3d-public <
>>>>>>> x3d-public at web3d.org> wrote:
>>>>>>>
>>>>>>>> With big thanks to Don who provided information and pushed me to
>>>>>>>> implement it!:)
>>>>>>>>
>>>>>>>> 1. We support now InlineGeometry in Castle Game Engine and Castle
>>>>>>>> Model Viewer.
>>>>>>>>
>>>>>>>> - I tested on a few examples, and made our own:
>>>>>>>> https://github.com/castle-engine/demo-models/tree/master/x3d/inline_geometry
>>>>>>>>
>>>>>>>> - You can refer to a geometry from any model format we support,
>>>>>>>> including X3D, glTF, STL, PLY...:
>>>>>>>> https://castle-engine.io/model_formats
>>>>>>>>
>>>>>>>> 2. We support now loading models in a PLY format.
>>>>>>>>
>>>>>>>> - ASCII and binary versions.
>>>>>>>>
>>>>>>>> - Faces or without faces (point cloud, i.e. just our PointSet).
>>>>>>>>
>>>>>>>> - Testcases include
>>>>>>>> https://github.com/castle-engine/demo-models/tree/master/ply and
>>>>>>>> https://sketchfab.com/3d-models/kaktus-ply-7b7cc7188f17468595506500e186a9c0
>>>>>>>> .
>>>>>>>>
>>>>>>>> More information and screenshots about both features in our news
>>>>>>>> post on
>>>>>>>> https://castle-engine.io/wp/2026/04/06/support-for-ply-model-format-and-inlinegeometry-node/
>>>>>>>> .
>>>>>>>>
>>>>>>>> They are available to test right now if you download
>>>>>>>> - the "snapshot" version of Castle Model Viewer
>>>>>>>> https://castle-engine.io/castle-model-viewer
>>>>>>>> - or full engine from https://castle-engine.io/download .
>>>>>>>>
>>>>>>>> Regards,
>>>>>>>> Michalis
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> x3d-public mailing list
>>>>>>>> x3d-public at web3d.org
>>>>>>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>>>>>
>>>>>>> _______________________________________________
>>>>>>> x3d-public mailing list
>>>>>>> x3d-public at web3d.org
>>>>>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>>>>
>>>>>> _______________________________________________
>>> x3d-public mailing list
>>> x3d-public at web3d.org
>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>
>>> _______________________________________________
>>> x3d-public mailing list
>>> x3d-public at web3d.org
>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>
>>>
>>> _______________________________________________
>>> x3d-public mailing list
>>> x3d-public at web3d.org
>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>
>>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20260409/3316d4ca/attachment-0001.html>
More information about the x3d-public
mailing list
