x3d-3.0 - ShapeChildContentModel

group ShapeChildContentModel

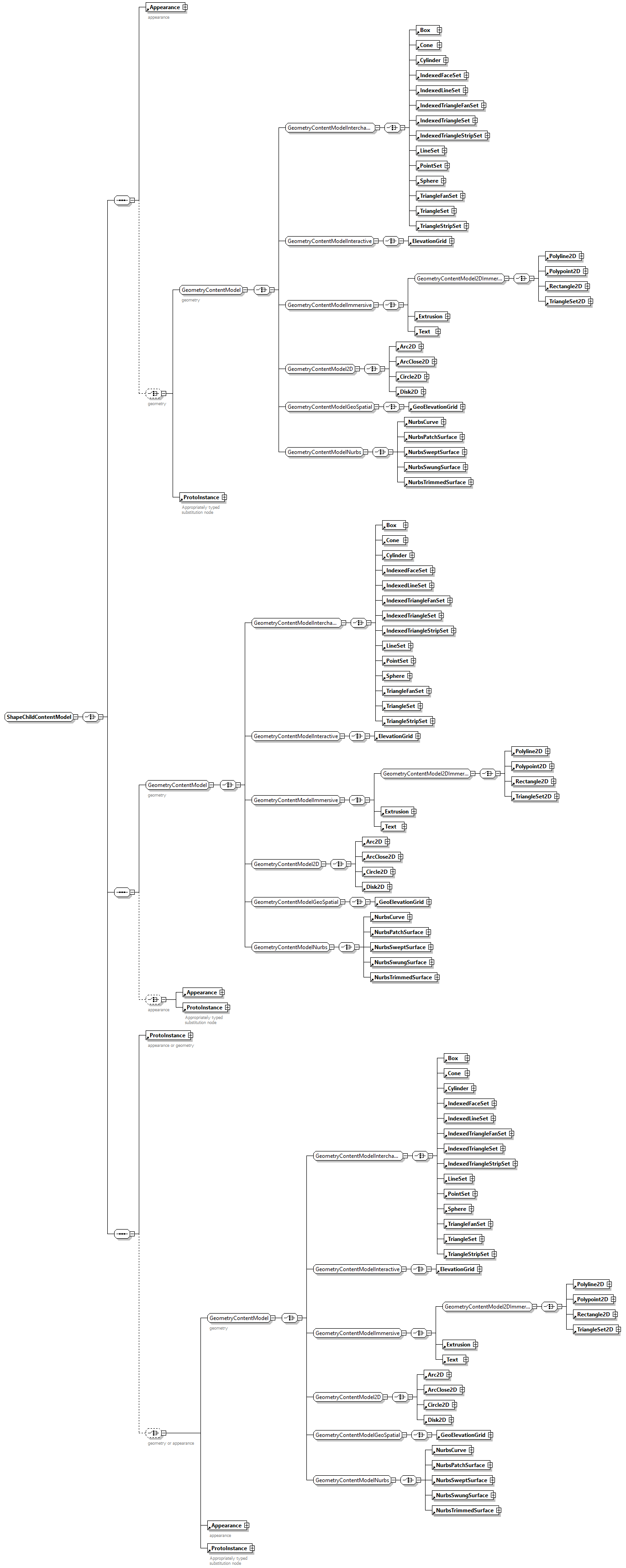

diagram

children

Appearance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance

used by

complexType

X3DShapeNode

annotation

appinfo

ShapeChildContentModel is the child-node content model utilized by X3DShapeNode. ShapeChildContentModel can contain a single Appearance node and a single geometry node, in any order.

source

<xs:group name="ShapeChildContentModel">
<xs:annotation>
    <xs:appinfo>ShapeChildContentModel is the child-node content model utilized by X3DShapeNode. ShapeChildContentModel can contain a single Appearance node and a single geometry node, in any order.</xs:appinfo>
    <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shape.html#Shapenodes"/>
</xs:annotation>
<xs:choice>
    <xs:sequence>
      <xs:element ref="Appearance">
        <xs:annotation>
          <xs:documentation>appearance</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:choice minOccurs="0">
        <xs:annotation>
          <xs:documentation>geometry</xs:documentation>
        </xs:annotation>
        <xs:group ref="GeometryContentModel"/>
        <xs:element ref="ProtoInstance">
          <xs:annotation>
            <xs:documentation>Appropriately typed substitution node</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:sequence>
    <xs:sequence>
      <xs:group ref="GeometryContentModel">
        <xs:annotation>
          <xs:documentation>geometry</xs:documentation>
        </xs:annotation>
      </xs:group>
      <xs:choice minOccurs="0">
        <xs:annotation>
          <xs:documentation>appearance</xs:documentation>
        </xs:annotation>
        <xs:element ref="Appearance"/>
        <xs:element ref="ProtoInstance">
          <xs:annotation>
            <xs:documentation>Appropriately typed substitution node</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:sequence>
    <xs:sequence>
      <xs:element ref="ProtoInstance">
        <xs:annotation>
          <xs:documentation>appearance or geometry</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:choice minOccurs="0">
        <xs:annotation>
          <xs:documentation>geometry or appearance</xs:documentation>
        </xs:annotation>
        <xs:group ref="GeometryContentModel">
          <xs:annotation>
            <xs:documentation>geometry</xs:documentation>
          </xs:annotation>
        </xs:group>
        <xs:element ref="Appearance">
          <xs:annotation>
            <xs:documentation>appearance</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="ProtoInstance">
          <xs:annotation>
            <xs:documentation>Appropriately typed substitution node</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:sequence>
</xs:choice>
</xs:group>
