complexType AbstractStyleSelectorType

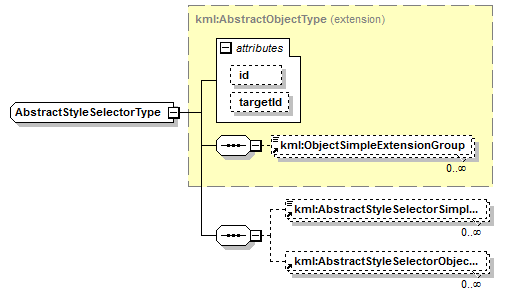

diagram
namespace	http://www.opengis.net/kml/2.2
type	extension of kml:AbstractObjectType
properties	base  kml:AbstractObjectType abstract  true
children	kml:ObjectSimpleExtensionGroup kml:AbstractStyleSelectorSimpleExtensionGroup kml:AbstractStyleSelectorObjectExtensionGroup
used by	element  AbstractStyleSelectorGroup complexTypes  StyleMapType StyleType
attributes	Name   Type   Use   Default   Fixed   Annotation id   ID   optional         targetId   NCName   optional
source	<complexType name="AbstractStyleSelectorType" abstract="true">   <complexContent>     <extension base="kml:AbstractObjectType">       <sequence>         <element ref="kml:AbstractStyleSelectorSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>         <element ref="kml:AbstractStyleSelectorObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>
