complexType BalloonStyleType

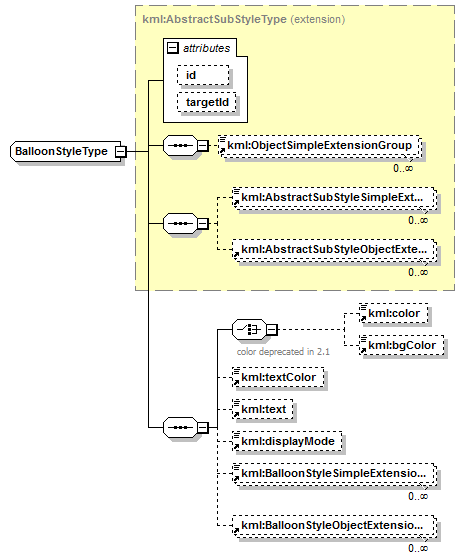

diagram kml22gx_diagrams/kml22gx_p308.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractSubStyleType
properties
base kml:AbstractSubStyleType
final #all
children kml:ObjectSimpleExtensionGroup kml:AbstractSubStyleSimpleExtensionGroup kml:AbstractSubStyleObjectExtensionGroup kml:color kml:bgColor kml:textColor kml:text kml:displayMode kml:BalloonStyleSimpleExtensionGroup kml:BalloonStyleObjectExtensionGroup
used by
element BalloonStyle
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="BalloonStyleType" final="#all">
  <complexContent>
    <extension base="kml:AbstractSubStyleType">
      <sequence>
        <choice>
          <annotation>
            <documentation>color deprecated in 2.1</documentation>
          </annotation>
          <element ref="kml:color" minOccurs="0"/>
          <element ref="kml:bgColor" minOccurs="0"/>
        </choice>
        <element ref="kml:textColor" minOccurs="0"/>
        <element ref="kml:text" minOccurs="0"/>
        <element ref="kml:displayMode" minOccurs="0"/>
        <element ref="kml:BalloonStyleSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="kml:BalloonStyleObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
