complexType ListStyleType

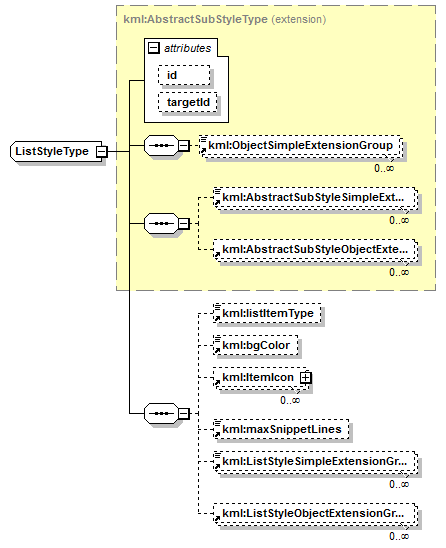

diagram kml22gx_diagrams/kml22gx_p332.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractSubStyleType
properties
base kml:AbstractSubStyleType
final #all
children kml:ObjectSimpleExtensionGroup kml:AbstractSubStyleSimpleExtensionGroup kml:AbstractSubStyleObjectExtensionGroup kml:listItemType kml:bgColor kml:ItemIcon kml:maxSnippetLines kml:ListStyleSimpleExtensionGroup kml:ListStyleObjectExtensionGroup
used by
element ListStyle
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="ListStyleType" final="#all">

<complexContent>

<extension base="kml:AbstractSubStyleType">

<sequence>

<element ref="kml:listItemType" minOccurs="0"/>

<element ref="kml:bgColor" minOccurs="0"/>

<element ref="kml:ItemIcon" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:maxSnippetLines" minOccurs="0"/>

<element ref="kml:ListStyleSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:ListStyleObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>
