complexType ScaleType

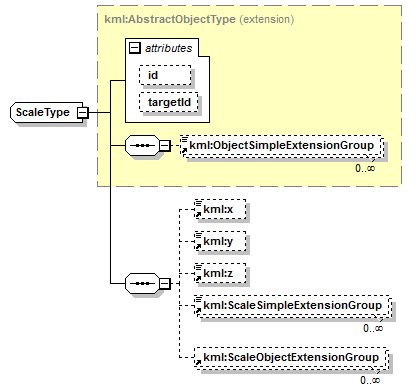

diagram kml22gx_diagrams/kml22gx_p350.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractObjectType
properties
base kml:AbstractObjectType
final #all
children kml:ObjectSimpleExtensionGroup kml:x kml:y kml:z kml:ScaleSimpleExtensionGroup kml:ScaleObjectExtensionGroup
used by
element Scale
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="ScaleType" final="#all">

<complexContent>

<extension base="kml:AbstractObjectType">

<sequence>

<element ref="kml:x" minOccurs="0"/>

<element ref="kml:y" minOccurs="0"/>

<element ref="kml:z" minOccurs="0"/>

<element ref="kml:ScaleSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:ScaleObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>
