complexType ViewVolumeType

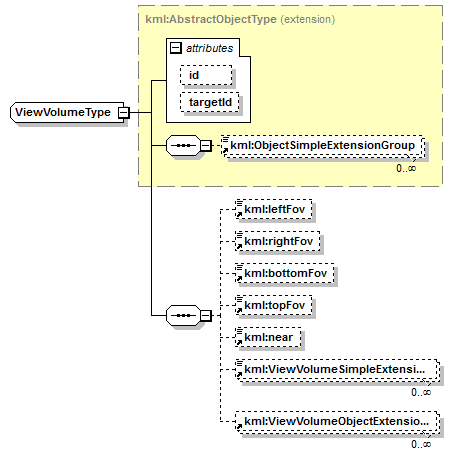

diagram
namespace	http://www.opengis.net/kml/2.2
type	extension of kml:AbstractObjectType
properties	base  kml:AbstractObjectType final  #all
children	kml:ObjectSimpleExtensionGroup kml:leftFov kml:rightFov kml:bottomFov kml:topFov kml:near kml:ViewVolumeSimpleExtensionGroup kml:ViewVolumeObjectExtensionGroup
used by	element  ViewVolume
attributes	Name   Type   Use   Default   Fixed   Annotation id   ID   optional         targetId   NCName   optional
source	<complexType name="ViewVolumeType" final="#all">   <complexContent>     <extension base="kml:AbstractObjectType">       <sequence>         <element ref="kml:leftFov" minOccurs="0"/>         <element ref="kml:rightFov" minOccurs="0"/>         <element ref="kml:bottomFov" minOccurs="0"/>         <element ref="kml:topFov" minOccurs="0"/>         <element ref="kml:near" minOccurs="0"/>         <element ref="kml:ViewVolumeSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>         <element ref="kml:ViewVolumeObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
