ogckml22 - BoundaryType

complexType BoundaryType

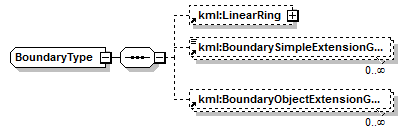

diagram

ogckml22_diagrams/ogckml22_p284.png

namespace

http://www.opengis.net/kml/2.2

properties

final

#all

children

kml:LinearRing kml:BoundarySimpleExtensionGroup kml:BoundaryObjectExtensionGroup

used by

elements

innerBoundaryIs outerBoundaryIs

source

<complexType name="BoundaryType" final="#all">
<sequence>
    <element ref="kml:LinearRing" minOccurs="0"/>
    <element ref="kml:BoundarySimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
    <element ref="kml:BoundaryObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
</sequence>
</complexType>
