complexType LineStyleType

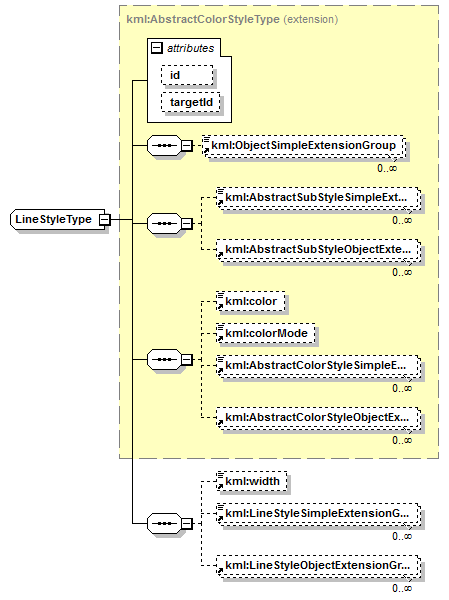

diagram ogckml22_diagrams/ogckml22_p304.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractColorStyleType
properties
base kml:AbstractColorStyleType
final #all
children kml:ObjectSimpleExtensionGroup kml:AbstractSubStyleSimpleExtensionGroup kml:AbstractSubStyleObjectExtensionGroup kml:color kml:colorMode kml:AbstractColorStyleSimpleExtensionGroup kml:AbstractColorStyleObjectExtensionGroup kml:width kml:LineStyleSimpleExtensionGroup kml:LineStyleObjectExtensionGroup
used by
element LineStyle
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="LineStyleType" final="#all">

<complexContent>

<extension base="kml:AbstractColorStyleType">

<sequence>

<element ref="kml:width" minOccurs="0"/>

<element ref="kml:LineStyleSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:LineStyleObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>
