complexType TimeStampType

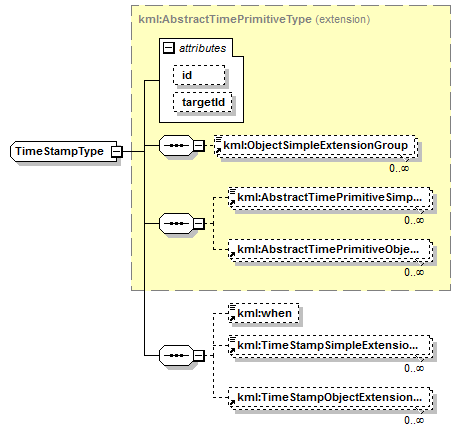

diagram
namespace	http://www.opengis.net/kml/2.2
type	extension of kml:AbstractTimePrimitiveType
properties	base  kml:AbstractTimePrimitiveType final  #all
children	kml:ObjectSimpleExtensionGroup kml:AbstractTimePrimitiveSimpleExtensionGroup kml:AbstractTimePrimitiveObjectExtensionGroup kml:when kml:TimeStampSimpleExtensionGroup kml:TimeStampObjectExtensionGroup
used by	element  TimeStamp
attributes	Name   Type   Use   Default   Fixed   Annotation id   ID   optional         targetId   NCName   optional
source	<complexType name="TimeStampType" final="#all">   <complexContent>     <extension base="kml:AbstractTimePrimitiveType">       <sequence>         <element ref="kml:when" minOccurs="0"/>         <element ref="kml:TimeStampSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>         <element ref="kml:TimeStampObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>
