X3D Model Documentation: BlendedComposedVolumes.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <component level='3' name='VolumeRendering'/>
  6            <component level='2' name='Texturing3D'/>
  7            <meta name='title' content='BlendedComposedVolumes.x3d'/>

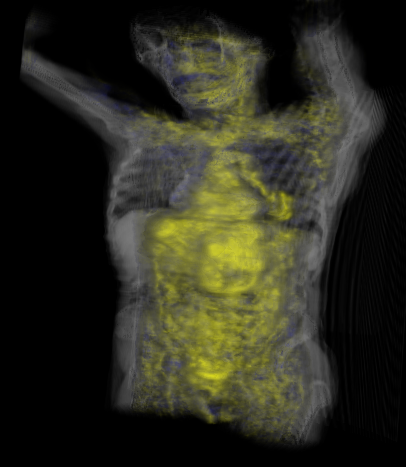

  8            <meta name='description' content='Composed and blended rendering of a human torso and internal structure'/>
  9            <meta name='created' content='6 May 2013'/>
 10            <meta name='modified' content='29 March 2020'/>
 11            <meta name='creator' content='Nicholas Polys, Andrew Wood: Virginia Tech'/>
 12            <meta name='Image' content='BlendedComposedVolumes.png'/>
 13            <meta name='reference' content='BlendedBodyInternals.x3d'/>
 14            <meta name='reference' content='Datasets, http://snoid.sv.vt.edu/medical/X3DVolumes/examples/datasets/nrrd/body.nrrd'/>
 15            <meta name='reference' content='Datasets, http://snoid.sv.vt.edu/medical/X3DVolumes/examples/datasets/nrrd/internals.x3d'/>
 16            <meta name='reference' content='All datasets, http://snoid.sv.vt.edu/medical/X3DVolumes/examples/datasets/datasets.zip'/>
 17            <meta name='reference' content='All datasets, https://savage.nps.edu/Savage/VolumeRendering/datasets/nrrd/datasets.zip'/>
 18            <meta name='reference' content='Run the download target in the Ant build.xml file to install reference nrrd files locally.'/>
 19            <meta name='reference' content='build.xml'/>
 20            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Basic/VolumeRendering/BlendedComposedVolumes.x3d'/>
 21            <meta name='reference' content='Volume data obtained from http://pubimage.hcuge.ch:8080'/>
 22            <meta name='generator' content='Volume data converted using Osirix, http://www.osirix-viewer.com'/>
 23            <meta name='generator' content='Nrrd conversion utility located at http://teem.sourceforge.net/unrrdu'/>
 24            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 25            <meta name='license' content='../license.html'/>
 26       </head>
<!--
<!-- -->

<!-- to top Index for DEF nodes: BG, VP

Index for Viewpoint node: VP
-->
 27       <Scene>
 28            <WorldInfo title='BlendedComposedVolumes.x3d'/>
 29            <Group>
 30                 <Viewpoint DEF='VP' description='Blended Composed Volumes' orientation='0.940022 0.208839 0.269711 1.71637' position='0.108923 -0.189725 -0.0135375'/>
 31                 <Background DEF='BG'/>
 32                 <Transform scale='0.000292969 0.000292969 0.000292969'>
 33                      <VolumeData dimensions='512 512 452' containerField='children'>
 34                           <ComposedVolumeStyle>
 35                                <OpacityMapVolumeStyle/>
 36                                <SilhouetteEnhancementVolumeStyle/>
 37                                <BlendedVolumeStyle weightConstant1='0.15' weightConstant2='0.85'>
 38                                     <ComposedVolumeStyle>
 39                                          <SilhouetteEnhancementVolumeStyle/>
 40                                          <CartoonVolumeStyle/>
 41                                          <BoundaryEnhancementVolumeStyle retainedOpacity='.8'/>
 42                                          <ToneMappedVolumeStyle/>
 43                                          <EdgeEnhancementVolumeStyle/>
 44                                     </ComposedVolumeStyle>
 45                                     <ImageTexture3D containerField='voxels'   url=' "datasets/nrrd/internals.nrrd" "http://snoid.sv.vt.edu/medical/X3DVolumes/examples/datasets/nrrd/internals.nrrd" "https://savage.nps.edu/Savage/VolumeRendering/datasets/nrrd/internals.nrrd" '/>
 46                                </BlendedVolumeStyle>
 47                           </ComposedVolumeStyle>
 48                           <ImageTexture3D containerField='voxels'   url=' "datasets/nrrd/body.nrrd" "http://snoid.sv.vt.edu/medical/X3DVolumes/examples/datasets/nrrd/body.nrrd" "https://savage.nps.edu/Savage/VolumeRendering/datasets/nrrd/body.nrrd" '/>
 49                      </VolumeData>
 50                 </Transform>
 51            </Group>
 52       </Scene>
 53  </X3D>
<!--
<!-- -->
