X3D Example Archives: X3D4WA, X3D for Web Authors, Chapter 04 Viewing Navigation

[1] AliasingExample.x3d Book View[1] AliasingExample.x3d Book View
Directory Viewpoint Slideshow
Anchor bookmarked-Viewpoint comparison, view from front

Authors can design scenes to help users navigate to Viewpoints of interest, and also create user-selectable geometry links using an Anchor (just like HTML).

Viewpoint nodes are the primary means for users to explore a scene. NavigationInfo nodes enable different user-interaction styles (FLY, WALK, EXAMINE etc.) as appropriate. Only one Viewpoint and one NavigationInfo node can each be active a time, with order of selection controlled via a binding stack.

The supporting Chapter 4 slideset and course videos (NPS, YouTube) for X3D for Web Authors are available online via X3dGraphics.com.

Also available: X3D Scene Authoring Hints: Viewpoints and Navigation.

Anchor bookmarked-Viewpoint comparison, oblique view from right side
8 X3D Models                 21 X3D Model Viewpoint Snapshots

AliasingExample
Aliasing Example.x3d
[1] AliasingExample.x3d Book View

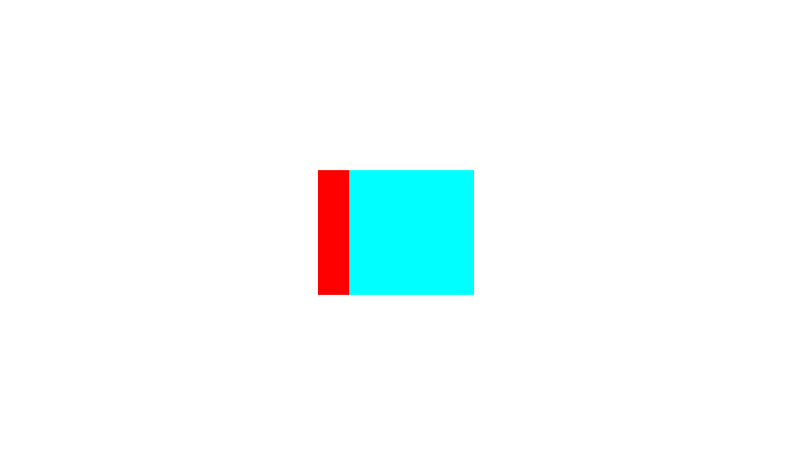

[2] AliasingExample.x3d (default X3D view from 0 0 10)

AnchorComparison
Anchor Comparison.x3d
[3] AnchorComparison.x3d Front view Anchor text
[4] AnchorComparison.x3d Side view Anchor text

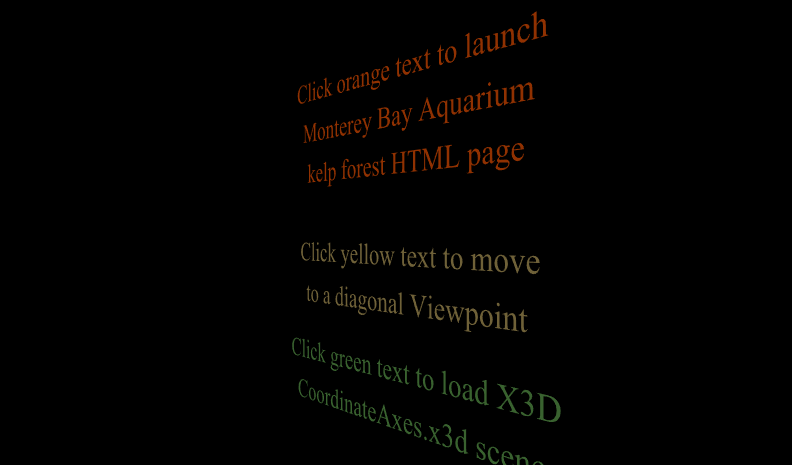

[5] AnchorComparison.x3d (default X3D view from 0 0 10)

AnchorExample
Anchor Example.x3d
[6] AnchorExample.x3d view Anchor text
[7] AnchorExample.x3d (default X3D view from 0 0 10)

BillboardExample
Billboard Example.x3d
[8] BillboardExample.x3d Entry view from ahead, no rotations
[9] BillboardExample.x3d Observe Billboard effect text remains visible while navigating around
[10] BillboardExample.x3d (default X3D view from 0 0 10)

BindingOperations
Binding Operations.x3d

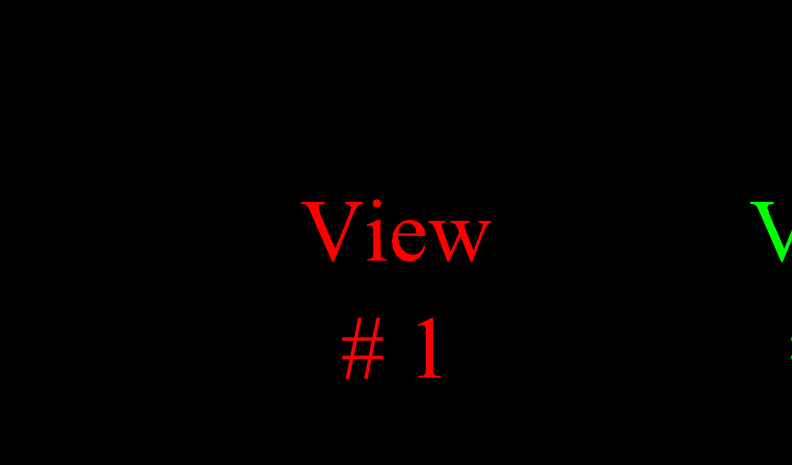

[11] BindingOperations.x3d Viewpoint 1

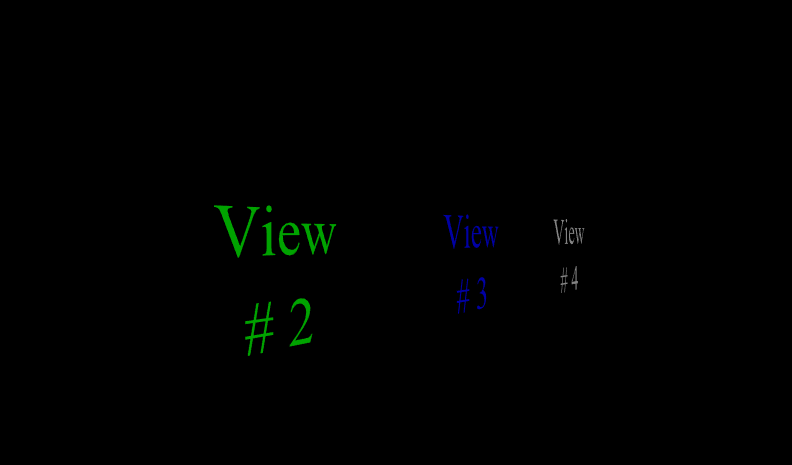

[12] BindingOperations.x3d Viewpoint 2

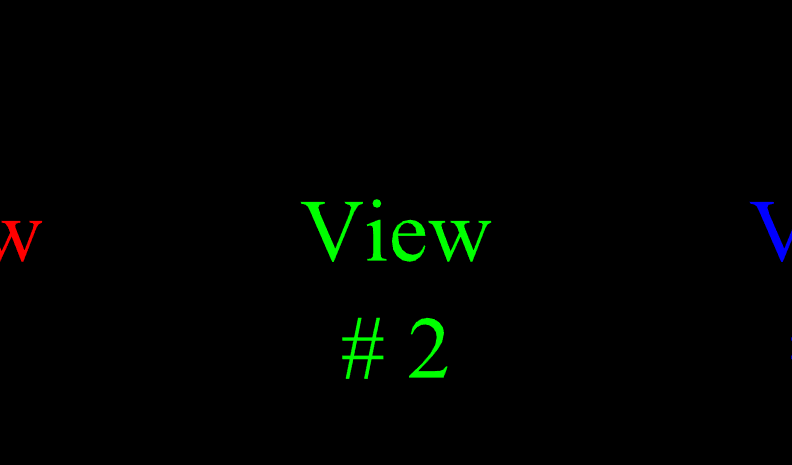

[13] BindingOperations.x3d Viewpoint 3

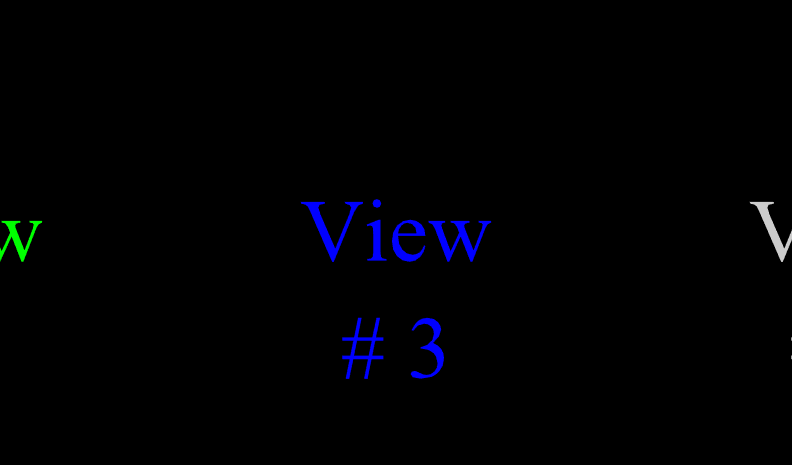

[14] BindingOperations.x3d Viewpoint 4

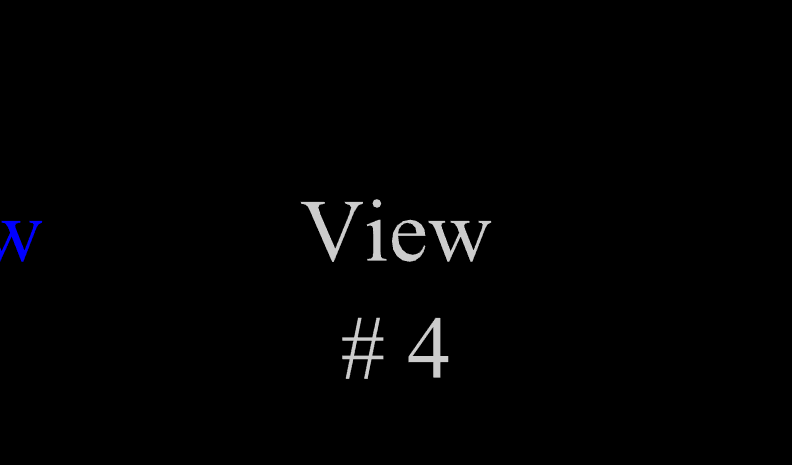

[15] BindingOperations.x3d Select animation sequence

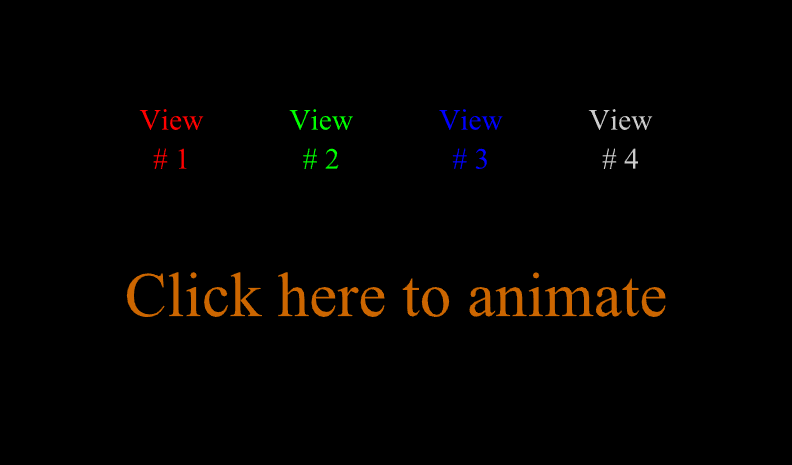

[16] BindingOperations.x3d (default X3D view from 0 0 10)

CollisionExample
Collision Example.x3d
[17] CollisionExample.x3d Outside Tank, Outside Collision Geometry, Blocked
[18] CollisionExample.x3d Outside Tank, Below Collision Geometry, Can Fly In

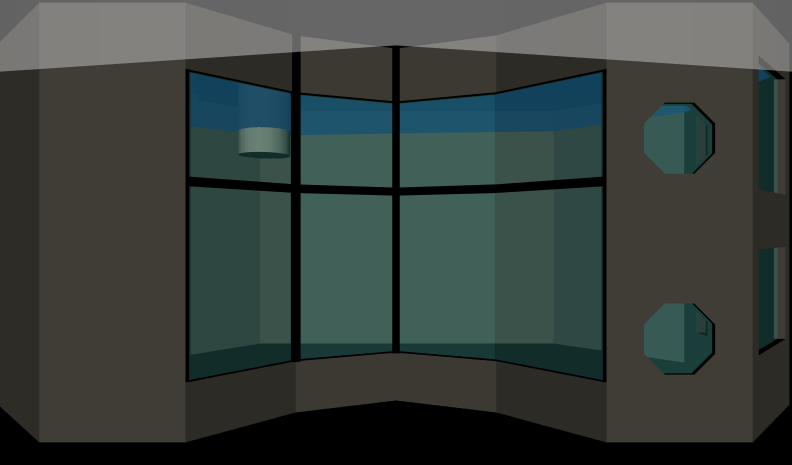

[19] CollisionExample.x3d Inside Tank
[20] CollisionExample.x3d (default X3D view from 0 0 10)

NavigationInfoExample
Navigation Info Example.x3d

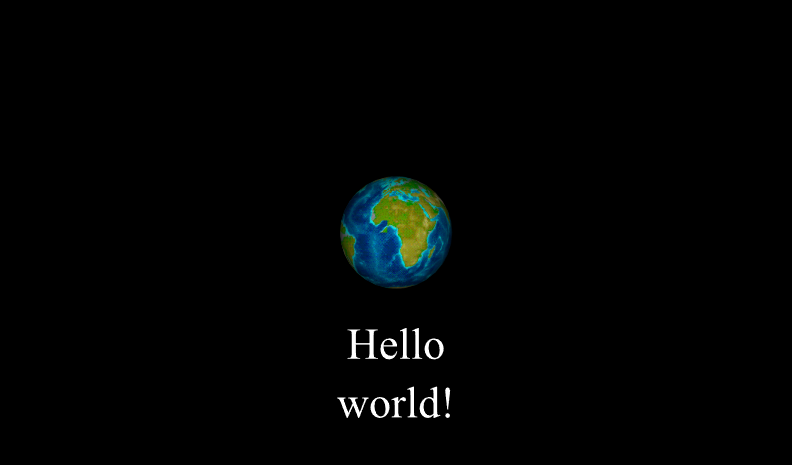

[21] NavigationInfoExample.x3d (default X3D view from 0 0 10)

ViewpointExample
Viewpoint Example.x3d

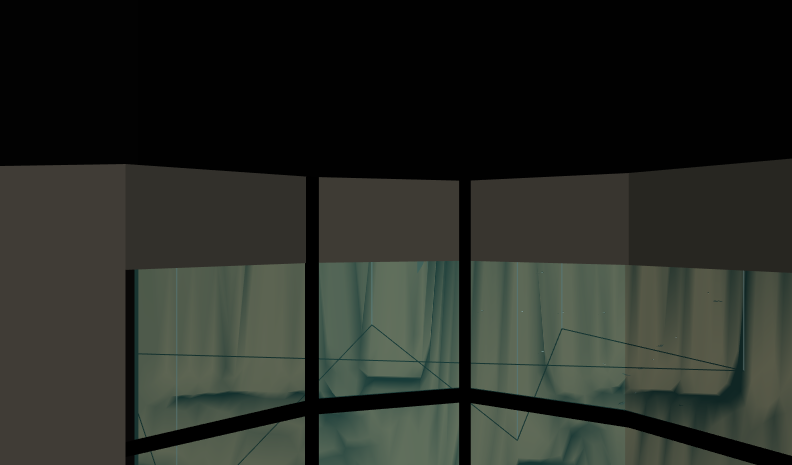

[22] ViewpointExample.x3d 7 degree towards left
[23] ViewpointExample.x3d (default X3D view from 0 0 10)


This viewpoint slideshow is online at
https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter04ViewingNavigation/viewpointSlideshow.html

Validate XHTML 1.1

Viewpoint image version history at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter04ViewingNavigation/_viewpoints
