X3D Model Documentation: ThirdPersonViewChaser.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
  3  <X3D profile='Immersive' version='3.2 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.2.xsd'>
  4       <head>
  5            <meta name='titlecontent='ThirdPersonViewChaser.x3d'/>
  6            <meta name='descriptioncontent='X3D Follower example'/>
  7            <meta name='creatorcontent='Herbert Stocker'/>
  8            <meta name='translatorcontent='Don Brutzman'/>
  9            <meta name='createdcontent='18 April 2006'/>
 10            <meta name='translatedcontent='2 December 2011'/>
 11            <meta name='modifiedcontent='20 October 2019'/>
 12            <meta name='referencecontent='originals/3rdPersonView-c.wrl'/>
 13            <meta name='referencecontent='originals/3rdPersonView-f.wrl'/>
 14            <meta name='referencecontent='Stocker_06_Followers.pdf'/>
 15            <meta name='referencecontent='http://www.hersto.com/Publications/Followers'/>
 16            <meta name='requirescontent='X3D version 3.2 or greater'/>
 17            <meta name='subjectcontent='X3D Follower Chaser Damper'/>
 18            <meta name=' TODO content=' Why is ScalarChaser missing from the X3D Specification? '/>
 19            <meta name=' warning content=' under development '/>
 20            <meta name='referencecontent='https://www.web3d.org/x3d/specifications/ISO-IEC-19775-1.2-X3D-AbstractSpecification/Part01/components/followers.html'/>
 21            <meta name='referencecontent='https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html'/>
 22            <meta name='identifiercontent='https://www.web3d.org/x3d/content/examples/Basic/Followers/ThirdPersonViewChaser.x3d'/>
 23            <meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 24            <meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 25            <meta name='licensecontent='../../license.html'/>
 26       </head>
<!--

<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: coord_Suzanne, DieAwayMoveDamper, DieAwayRotateDamper, EvGridGround, GrTrees, Mat, MatCrown, Proxi, ScrEvGridIniter, ScriptThirdPersonView, ScrNavi, ScrNaviSens, ScrShadowMgr, ScrTree, ScrTreeHightIniter, ShGround, TchNavi, Timer, TransObject, TrCrown, TrGround, TrHud, TrShadow, TrTrunc, VP

Index for Viewpoint node: VP

Index for ExternProtoDeclare definition: ScalarDamper

Index for ProtoDeclare definition: Tree
-->
 27       <Scene>
 28            <WorldInfo title='ThirdPersonViewChaser.x3d'/>
 29            <ExternProtoDeclare name='ScalarDamper'   url=' "FollowerPrototypeDeclarations.x3d#ScalarDamper" "https://www.web3d.org/x3d/content/examples/Basic/Followers/FollowerPrototypeDeclarations.x3d#ScalarDamper" "FollowerPrototypeDeclarations.wrl#ScalarDamper" "https://www.web3d.org/x3d/content/examples/Basic/Followers/FollowerPrototypeDeclarations.wrl#ScalarDamper" '>
 30                 <field name='isLoadedtype='SFBoolaccessType='outputOnly'/>
 31                 <field name='value_changedtype='SFFloataccessType='outputOnly'/>
 32                 <field name='set_destinationtype='SFFloataccessType='inputOnly'/>
 33                 <field name='initial_destinationtype='SFFloataccessType='initializeOnly'/>
 34                 <field name='ordertype='SFInt32accessType='initializeOnly'/>
 35                 <field name='tautype='SFFloataccessType='inputOutput'/>
 36                 <field name='set_valuetype='SFFloataccessType='inputOnly'/>
 37                 <field name='transparency_changedtype='SFFloataccessType='outputOnly'/>
 38                 <field name='initial_valuetype='SFFloataccessType='initializeOnly'/>
 39                 <field name='isActivetype='SFBoolaccessType='outputOnly'/>
 40                 <field name='epstype='SFFloataccessType='initializeOnly'/>
 41            </ExternProtoDeclare>
 42            <NavigationInfo headlight='falsetype='"NONE"'/>
 43            <Background skyColor='0.6 0.7 1.0'/>
 44            <DirectionalLight direction='1.0 -1.0 1.0'/>
 45
          <!-- ROUTE information for Proxi node:  [from position_changed to TrHud.translation ] [from orientation_changed to TrHud.rotation ] -->
          <ProximitySensor DEF='Proxisize='1.0E30 1.0E30 1.0E30'/>
 46
          <!-- ROUTE information for VP node:  [from ScriptThirdPersonView.viewPos_changed to position ] [from ScriptThirdPersonView.viewOri_changed to orientation ] -->

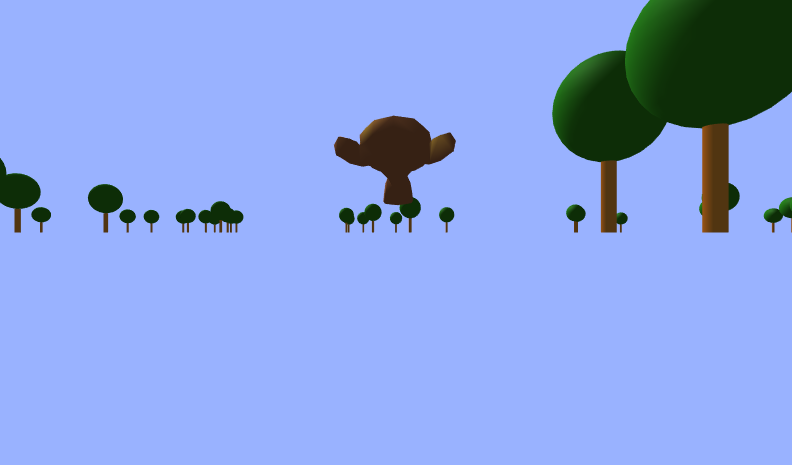

          <Viewpoint DEF='VPdescription='3rd Person View ChaserfieldOfView='1.0'/>
 47            <ProtoDeclare name='Tree'>
 48                 <ProtoInterface>
 49                      <field name='positiontype='SFVec3fvalue='0.0 0.0 0.0accessType='inputOutput'/>
 50                      <field name='set_Colortype='SFColoraccessType='inputOnly'/>
 51                      <field name='set_Sizetype='SFFloataccessType='inputOnly'/>
 52                 </ProtoInterface>
 53                 <ProtoBody>
 54                      <Transform>
 55                           <IS>
 56                                <connect nodeField='translationprotoField='position'/>
 57                           </IS>
 58                           <Transform DEF='TrTrunctranslation='0.0 1.0 0.0'>
 59                                <Shape>
 60                                     <Appearance>
 61                                          <Material ambientIntensity='0.06diffuseColor='0.376 0.161 0.0196emissiveColor='0.318 0.208 0.0667shininess='0.93'/>
 62                                     </Appearance>
 63                                     <Cylinder radius='0.2'/>
 64                                </Shape>
 65                           </Transform>
 66                           <Transform DEF='TrCrowntranslation='0.0 3.5 0.0'>
 67                                <Shape>
 68                                     <Appearance>
 69
                                        <!-- ROUTE information for MatCrown node:  [from ScrTree.croneDiffuseColor to diffuseColor ] [from ScrTree.croneEmissiveColor to emissiveColor ] -->
                                        <Material DEF='MatCrownambientIntensity='0.0633diffuseColor='0.11 0.369 0.0902emissiveColor='0.051 0.176 0.0275shininess='0.09specularColor='0.09 0.09 0.09'/>
 70                                     </Appearance>
 71                                     <Sphere radius='1.5'/>
 72                                </Shape>
 73                           </Transform>
 74                      </Transform>
 75
                    <!-- ROUTE information for ScrTree node:  [from croneDiffuseColor to MatCrown.diffuseColor ] [from croneEmissiveColor to MatCrown.emissiveColor ] -->
                    <Script DEF='ScrTree'>
 76                           <field name='croneEmissiveColortype='SFColoraccessType='outputOnly'/>
 77                           <field name='set_Colortype='SFColoraccessType='inputOnly'/>
 78                           <field name='croneDiffuseColortype='SFColoraccessType='outputOnly'/>
 79                           <IS>
 80                                <connect nodeField='set_ColorprotoField='set_Color'/>
 81                           </IS>
  <![CDATA[

ecmascript:

function set_Color(Col)
{
    croneDiffuseColor= new  SFColor( Col.r * .7
                                   , Col.g * .7
                                   , Col.b * .7
                                   );
    croneEmissiveColor= new SFColor( Col.r * .3
                                   , Col.g * .3
                                   , Col.b * .3
                                   );
}


]]>
 83                      </Script>
 84                      < ROUTE  fromNode='ScrTree' fromField='croneDiffuseColor' toNode='MatCrown' toField='diffuseColor'/>
 85                      < ROUTE  fromNode='ScrTree' fromField='croneEmissiveColor' toNode='MatCrown' toField='emissiveColor'/>
 86                 </ProtoBody>
 87            </ProtoDeclare>
 88
          <!-- Transform TrGround is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 -->
          <Transform DEF='TrGroundtranslation='-120.0 0.0 -120.0'>
 89                 <Shape DEF='ShGround'>
 90                      <Appearance>
 91                           <Material ambientIntensity='0.0diffuseColor='0.2 0.41 0.0emissiveColor='0.15 0.21 0.0shininess='0.0'/>
 92                      </Appearance>
 93
                    <!-- ElevationGrid EvGridGround is a DEF node that has 4 USE nodes: USE_1, USE_2, USE_3, USE_4 -->
                    <ElevationGrid DEF='EvGridGroundcreaseAngle='4.0xDimension='40xSpacing='6.0zDimension='40zSpacing='6.0'/>
 94                 </Shape>
 95            </Transform>
 96            <Script DEF='ScrEvGridIniterdirectOutput='true'>
 97                 <field name='Gridtype='SFNodeaccessType='initializeOnly'>
 98                      <ElevationGrid USE='EvGridGround'/>
 99                 </field>
  <![CDATA[

ecmascript:

function sin0(x)
{
    return Math.sin(x * 6.28318530717959); // We don't use 2*Math.PI in the hope it will increase performance.
}

function cos0(x)
{
    return Math.cos(x * 6.28318530717959); // We don't use 2*Math.PI in the hope it will increase performance.
}

function initialize()
{
    var Heights= new MFFloat;
    Heights.length= Grid.xDimension * Grid.zDimension;

    var ZFrom= -Grid.zDimension*Grid.zSpacing/2;
    var ZTo=    Grid.zDimension*Grid.zSpacing/2 - Grid.zSpacing * .1;
    var ZStep=  Grid.zSpacing;
    var XFrom= -Grid.xDimension*Grid.xSpacing/2;
    var XTo=    Grid.xDimension*Grid.xSpacing/2 - Grid.xSpacing * .1;
    var XStep=  Grid.xSpacing;

//        ZFrom+= Grid.zSpacing;
//        ZTo-=   Grid.zSpacing;
//        XFrom+= Grid.xSpacing;
//        XTo-=   Grid.xSpacing;

    var Idx= 0;

//        Idx+= 1 + Grid.xDimension * 1;

    for(var Z= ZFrom; Z<=ZTo; Z+= ZStep)
    {
        for(var X= XFrom; X<=XTo; X+= XStep)
        {
            var s= 9;

            var H= .7*( cos0(Z*s / 30) + cos0(X*s / 35 + X*X*s*s / 34) + sin0(X*Z*s / 40));
            H+= cos0(Math.sqrt(X*X + Z*Z) / 300) * 15;
            Heights[Idx++]= H;
        }
//            Idx+= 2;
    }
    Grid.height= Heights;
}


]]>
101            </Script>
102
          <!-- Group GrTrees is a DEF node that has 1 USE node: USE_1 -->
          <Group DEF='GrTrees'>
103                 <ProtoInstance name='Tree'>
104                      <fieldValue name='positionvalue='2.0 0.0 -50.0'/>
105                 </ProtoInstance>
106                 <ProtoInstance name='Tree'>
107                      <fieldValue name='positionvalue='80.0 0.0 56.0'/>
108                 </ProtoInstance>
109                 <ProtoInstance name='Tree'>
110                      <fieldValue name='positionvalue='-98.0 0.0 6.0'/>
111                 </ProtoInstance>
112                 <ProtoInstance name='Tree'>
113                      <fieldValue name='positionvalue='62.0 0.0 56.0'/>
114                 </ProtoInstance>
115                 <ProtoInstance name='Tree'>
