<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0'
xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance'
xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
<head>
<meta name='title' content='scale_complex_movietexture.x3d'/>
<meta name='Image' content='scale_complex_movietexture-front.jpg'
/>

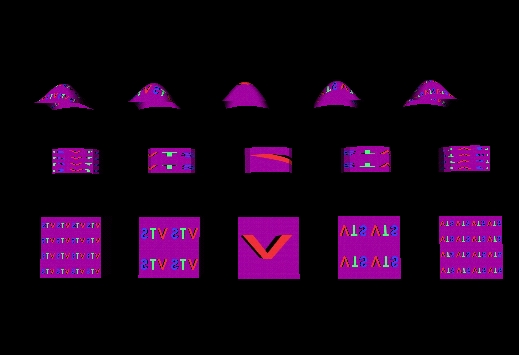

<meta name='Image' content='scale_complex_movietexture-rear.jpg'
/>

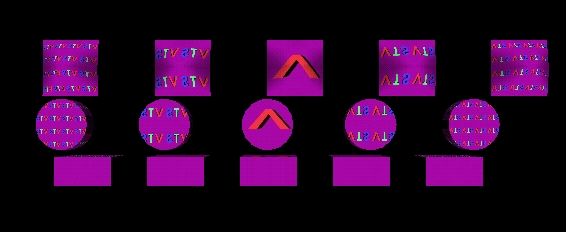

<meta name='Image' content='scale_complex_movietexture-top.jpg'
/>

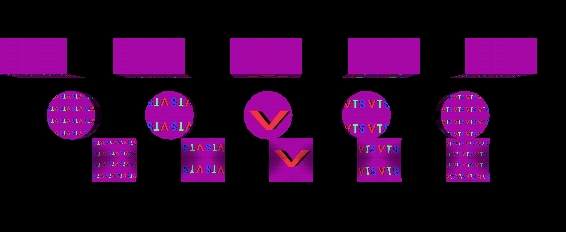

<meta name='Image' content='scale_complex_movietexture-bottom.jpg'
/>

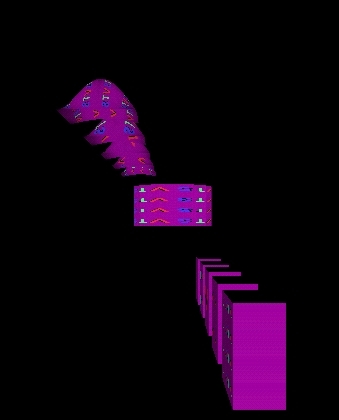

<meta name='Image' content='scale_complex_movietexture-left.jpg'
/>

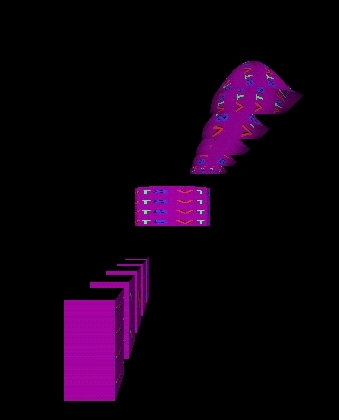

<meta name='Image' content='scale_complex_movietexture-right.jpg'
/>
<meta name='reference' content='http://www.nist.gov/vrml.html'/>
<meta name='reference' content='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
<meta name='creator' content='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
<meta name='disclaimer' content='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='reference' content='Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml'/>
<meta name='reference' content='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
<meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='28 August 2023'/>
<meta name='description' content='Test scale field for MovieTexture mapping to complex geometry. Test browser ability to apply scales of (left to right) -4 -4, -2 -2, 0.4 .9, 2 2, and 4 4 to a MovieTexture mapped to the faces of complex geometry, using the primitive mapping rules. The results are: a 4 X 4 reversed and inverted matrix of VTS logos should appear on the bottom of the ElevationGrid, on the side and bottom end cap of the Extrusion, and on the front of the IndexedFaceSet. The second column should display a reversed and inverted 2 X 2 matrix of VTS logos on the same geometry faces. The third geometry column should map an enlarged V onto the front of these faces. The fourth column should contain an upright 2 X 2 grid of VTS logos on these faces, and the fifth geometry column should contain a 4 X 4 matrix of upright VTS logos on these faces. All opposing faces should have reversed images, and side faces for the IndexedFaceSet should have smeared pixels.'/>
<meta name='identifier' content='https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/scale_complex_movietexture.x3d'/>
<meta name='generator' content='Vrml97ToX3dNist,
http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 4.0,
https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../../license.html'/>
</head>
<!--
-->
X3D Tooltips element index:
Appearance,
Coordinate,
DirectionalLight,
ElevationGrid,
Extrusion,
Group,
head,
IndexedFaceSet,
Material,
meta,
MovieTexture,
NavigationInfo,
Scene,
Shape,
TextureCoordinate,
TextureTransform,
Transform,
Viewpoint,
WorldInfo,
X3D,
accessType and
type,
XML data types,
field types
<Scene>
<WorldInfo title='scale_complex_movietexture.x3d'/>
<Group>
<Viewpoint description='Front View' position='0 0 15'/>
<Viewpoint description='Rear View' orientation='0 1 0 3.14' position='0 0 -15'/>
<Viewpoint description='Top View' orientation='1 0 0 -1.57' position='0 15 0'/>
<Viewpoint description='Bottom View' orientation='1 0 0 1.57' position='0 -15 0'/>
<Viewpoint description='Right View' orientation='0 1 0 1.57' position='15 0 0'/>
<Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-15 0 0'/>
</Group>
<NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<DirectionalLight direction='0 0 1' intensity='0.5'/>
<DirectionalLight intensity='0.5'/>
<Transform translation='-8 3 -3'>
<Shape>
<Appearance>
</Appearance>
<ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='-4 3 -3'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
-2 -2'/>
<Material/>
</Appearance>
<ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='0 3 -3'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
0.4 0.9'/>
<Material/>
</Appearance>
<ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='4 3 -3'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
2 2'/>
<Material/>
</Appearance>
<ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='8 3 -3'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
4 4'/>
<Material/>
</Appearance>
<ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='-8 0 0'>
</Transform>
<Transform translation='-4 0 0'>
</Transform>
<Transform>
</Transform>
<Transform translation='4 0 0'>
</Transform>
<Transform translation='8 0 0'>
</Transform>
<Transform scale='0.615111 0.615111 0.615112' translation='-8 -3 2'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
-4 -4'/>
<Material/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1' texCoordIndex='0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1'>
<Coordinate DEF='RectangularBox' point='-2 2 1 -2 -2 1 2 2 1 2 -2 1 2 2 -1 2 -2 -1 -2 2 -1 -2 -2 -1'/>
<
TextureCoordinate DEF='
FourCorners'
point='
0 1 0 0 1 1 1 0'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112' translation='-4 -3 2'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
-2 -2'/>
<Material/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1' texCoordIndex='0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1'>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112' translation='0 -3 2'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
0.4 0.9'/>
<Material/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1' texCoordIndex='0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1'>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112' translation='4 -3 2'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
2 2'/>
<Material/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1' texCoordIndex='0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1'>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112' translation='8 -3 2'>
<Shape>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<
TextureTransform scale='
4 4'/>
<Material/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1' texCoordIndex='0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1 0 1 3 2 -1'>
</IndexedFaceSet>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
-->
-->
<!--
