<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Interchange' version='3.0'
xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance'
xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
<head>
<meta name='title' content='translation_primitives_s.x3d'/>

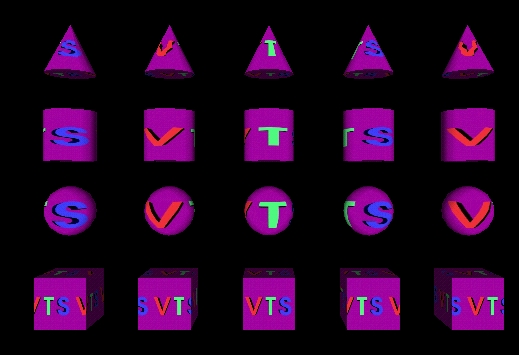

<meta name='Image' content='translation_primitives_s-front.jpg'
/>

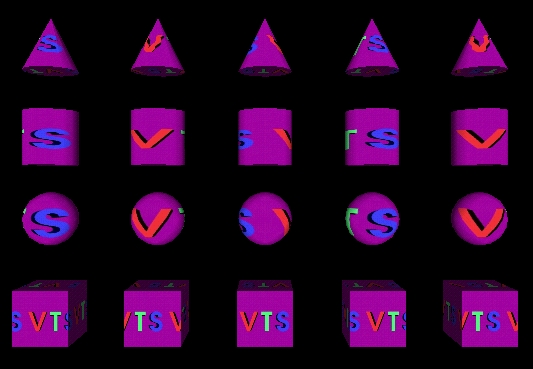

<meta name='Image' content='translation_primitives_s-rear.jpg'
/>

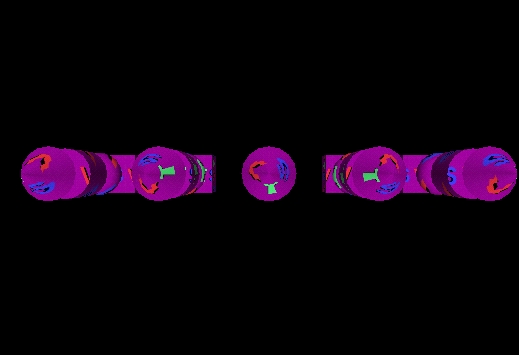

<meta name='Image' content='translation_primitives_s-top.jpg'
/>

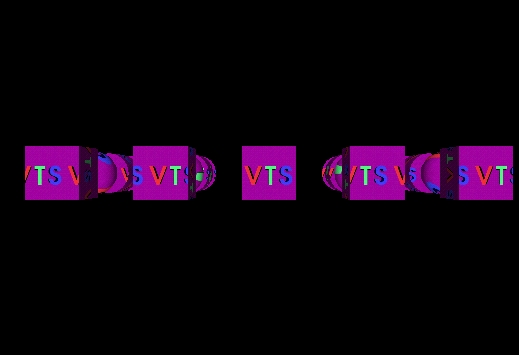

<meta name='Image' content='translation_primitives_s-bottom.jpg'
/>

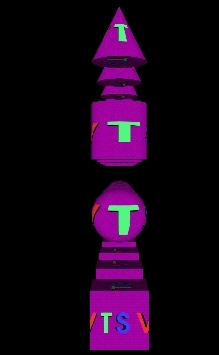

<meta name='Image' content='translation_primitives_s-left.jpg'
/>
<meta name='Image' content='translation_primitives_s-right.jpg'
/>
<meta name='reference' content='http://www.nist.gov/vrml.html'/>
<meta name='reference' content='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
<meta name='creator' content='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
<meta name='disclaimer' content='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='reference' content='Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml'/>
<meta name='reference' content='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
<meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='28 August 2023'/>
<meta name='description' content='Test ImageTexture translation along S axis for primitive geometry. Test browser ability to apply translations of (left to right) -100.75 0, -23.25 0, 0 0, 23.35 0, and 100.75 0 to an ImageTexture mapped to the faces of primative geometry, mapping with default primitive mapping rules. The result is: The left column shows primitive geometry mapped with the VTS logo vertically centered on all faces, with the ImageTexture beginning on the left at the middle of the V in VTS. The second column shows a vertically centered logo with the texture beginning at the S in the VTS logo. The third column shows a vertically and horizontally centered VTS logo on all faces. The fourth column should appear identical to column #1. The fifth column should appear identical to column #2.'/>
<meta name='identifier' content='https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/translation_primitives_s.x3d'/>
<meta name='generator' content='Vrml97ToX3dNist,
http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 4.0,
https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../../license.html'/>
</head>
<!--
-->
X3D Tooltips element index:
Appearance,
Box,
Cone,
Cylinder,
DirectionalLight,
Group,
head,
ImageTexture,
Material,
meta,
NavigationInfo,
Scene,
Shape,
Sphere,
TextureTransform,
Transform,
Viewpoint,
WorldInfo,
X3D,
accessType and
type,
XML data types,
field types
<Scene>
<WorldInfo title='translation_primitives_s.x3d'/>
<Group>
<Viewpoint description='Front View'/>
<Viewpoint description='Rear View' orientation='0 1 0 3.14' position='0 0 -10'/>
<Viewpoint description='Top View' orientation='1 0 0 -1.57' position='0 10 0'/>
<Viewpoint description='Bottom View' orientation='1 0 0 1.57' position='0 -10 0'/>
<Viewpoint description='Right View' orientation='0 1 0 1.57' position='10 0 0'/>
<Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-10 0 0'/>
</Group>
<NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<DirectionalLight ambientIntensity='1' intensity='0.2'/>
<DirectionalLight ambientIntensity='1' direction='0 0 1' intensity='0.2'/>
<Transform translation='-4 -0.75 0'>
<Shape>
<Appearance>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-2 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
-23.25 0'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='0 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='2 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
23.25 0'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='4 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
100.75 0'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-4 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
-100.75 0'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='-2 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
-23.25 0'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='0 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='2 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
23.25 0'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='4 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
100.75 0'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='-4 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
-100.75 0'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='-2 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
-23.25 0'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='0 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='2 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
23.25 0'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='4 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
100.75 0'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='-4 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
-100.75 0'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-2 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
-23.25 0'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='0 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='2 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
23.25 0'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='4 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<
TextureTransform translation='
100.75 0'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
-->
-->
<!--
