X3D Model Documentation: all_primitives.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Interchange' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='all_primitives.x3d'/>

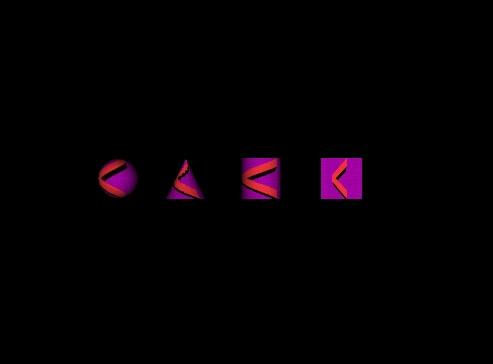

  6            <meta name='Image' content='all_primitives-front.jpg'/>

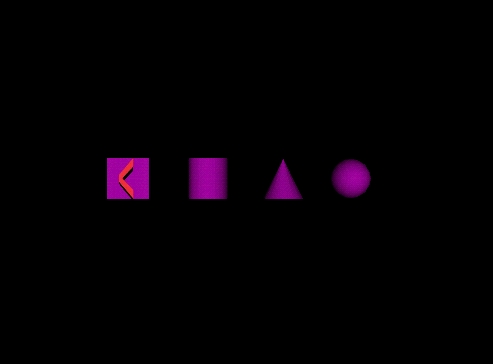

  7            <meta name='Image' content='all_primitives-rear.jpg'/>

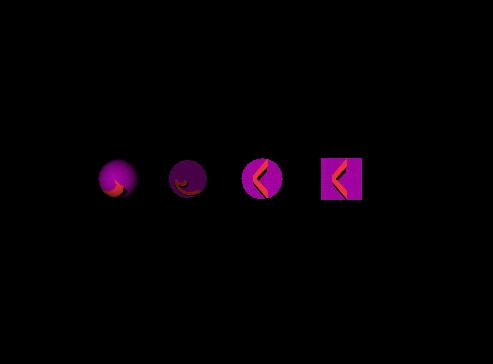

  8            <meta name='Image' content='all_primitives-top.jpg'/>

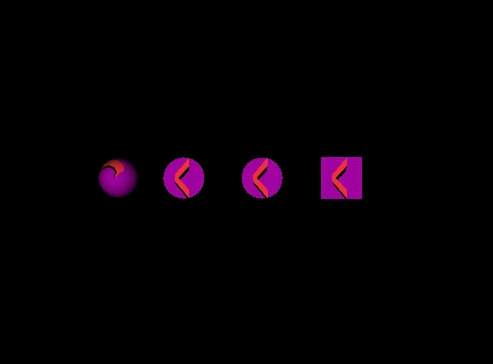

  9            <meta name='Image' content='all_primitives-bottom.jpg'/>

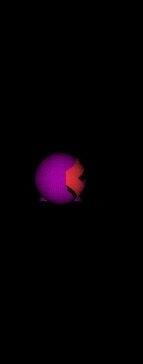

 10            <meta name='Image' content='all_primitives-left.jpg'/>
 11            <meta name='Image' content='all_primitives-right.jpg'/>
 12            <meta name='reference' content='http://www.nist.gov/vrml.html'/>
 13            <meta name='reference' content='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
 14            <meta name='creator' content='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
 15            <meta name='disclaimer' content='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
 16            <meta name='reference' content='Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml'/>
 17            <meta name='reference' content='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
 18            <meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
 19            <meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
 20            <meta name='translated' content='21 January 2001'/>
 21            <meta name='modified' content='28 August 2023'/>
 22            <meta name='description' content='Test TextureTransform of scale, center, translation and rotation to primitive geometry for ImageTexture. Test browser ability to apply a +90 degree rotation, with a center of 1 3, a scale of .33 1, and a translation of 0 4.9 to an ImageTexture mapped to the faces of primative geometry. The result is (using the primitive mapping rules: All geometry faces should map a single, centered V that is 3 times wider than its height, oriented down for its horizontal axis, and right for its vertical axis.'/>
 23            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/all_primitives.x3d'/>
 24            <meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 25            <meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
 26            <meta name='license' content='../../license.html'/>
 27       </head>
<!--
<!-- -->

<!-- to top Index for DEF node: VTS

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6
-->
 28       <Scene>
 29            <WorldInfo title='all_primitives.x3d'/>
 30            <Group>
 31                 <Viewpoint description='Front View' position='0 0 25'/>
 32                 <Viewpoint description='Rear View' orientation='0 1 0 3.14' position='0 0 -25'/>
 33                 <Viewpoint description='Top View' orientation='1 0 0 -1.57' position='0 25 0'/>
 34                 <Viewpoint description='Bottom View' orientation='1 0 0 1.57' position='0 -25 0'/>
 35                 <Viewpoint description='Right View' orientation='0 1 0 1.57' position='25 0 0'/>
 36                 <Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-25 0 0'/>
 37                 <NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"'/>
 38                 <Transform translation='-5.85443 0 0'>
 39                      <Shape>
 40                           <Appearance>
 41
                              <!-- ImageTexture VTS is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 -->
                               <ImageTexture DEF='VTS'   url=' "../../vts.jpg " "https://www.web3d.org/x3d/content/examples/ConformanceNist/vts.jpg " '/>
 42                                <TextureTransform center='1 3' rotation='1.57' scale='0.33 1' translation='0 4.9'/>
 43                                <Material/>
 44                           </Appearance>
 45                           <Sphere/>
 46                      </Shape>
 47                 </Transform>
 48                 <Transform translation='-2.47341 0 0'>
 49                      <Shape>
 50                           <Appearance>
 51                                <ImageTexture USE='VTS'/>
 52                                <TextureTransform center='1 3' rotation='1.57' scale='0.33 1' translation='0 4.9'/>
 53                                <Material/>
 54                           </Appearance>
 55                           <Cone/>
 56                      </Shape>
 57                 </Transform>
 58                 <Transform translation='1.31094 0 0'>
 59                      <Shape>
 60                           <Appearance>
 61                                <ImageTexture USE='VTS'/>
 62                                <TextureTransform center='1 3' rotation='1.57' scale='0.33 1' translation='0 4.9'/>
 63                                <Material/>
 64                           </Appearance>
 65                           <Cylinder/>
 66                      </Shape>
 67                 </Transform>
 68                 <Transform translation='5.14221 0 0'>
 69                      <Shape>
 70                           <Appearance>
 71                                <ImageTexture USE='VTS'/>
 72                                <TextureTransform center='1 3' rotation='1.57' scale='0.33 1' translation='0 4.9'/>
 73                                <Material/>
 74                           </Appearance>
 75                           <Box/>
 76                      </Shape>
 77                 </Transform>
 78            </Group>
 79       </Scene>
 80  </X3D>
<!--
<!-- -->

<!-- to top Index for DEF node: VTS

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6
-->
X3D Tooltips element index: Appearance, Box, Cone, Cylinder, Group, head, ImageTexture, Material, meta, NavigationInfo, Scene, Shape, Sphere, TextureTransform, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types
-->
