| 1 |
<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
|
| 3 | <X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content=' NavigationAidsExample.x3d '/> |
| 6 | <meta name='description' content='Navigation Aids Example, using two of each Prototype: Range Light, Lighted Buoy, Light.'/> |
| 7 | <meta name='creator' content='Planet 9 Studios, Inc., San Francisco, CA'/> |
| 8 | <meta name='producer' content='Christian Greuel, Director of Art and Production'/> |
| 9 | <meta name='reference' content='http://www.planet9.com'/> |
| 10 | <meta name='reference' content='IHO S-57: http://www.caris.com/s-57'/> |
| 11 | <meta name='translator' content='Xj3D Format Converter'/> |
| 12 | <meta name='created' content='17 August 2006'/> |
| 13 | <meta name='translated' content='18 August 2006'/> |
| 14 | <meta name='modified' content='20 October 2019'/> |
| 15 | <meta name='license' content='../../license.html'/> |
| 16 | <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/HarborEquipment/NavigationAids/NavigationAidsExample.x3d '/> |
| 17 | </head> |
DEF nodes index:
LightedBuoyPort,
LightedBuoyStarboard,
LightPort,
LightStarboard,
RangeLightFront,
RangeLightRear
| 18 | <Scene> |
| 19 | <WorldInfo title='NavigationAidsExample.x3d'/> |
| 20 | <ExternProtoDeclare name='RangeLight' url=' "RangeLightPrototype.x3d#RangeLight" "https://www.web3d.org/x3d/content/examples/Savage/HarborEquipment/NavigationAids/RangeLightPrototype.x3d#RangeLight" "RangeLightPrototype.wrl#RangeLight" "https://www.web3d.org/x3d/content/examples/Savage/HarborEquipment/NavigationAids/RangeLightPrototype.wrl#RangeLight" '> |
| 21 | <!-- NOTE: Beacon light points due North (+Z) and is only visible from that side. --> |
| 22 | <field name='LightType' type='SFInt32' accessType='inputOutput'/> |
| 23 | <!-- 0=LightOff, 1=LightOn, 2=LightFlashing(NotImplemented) --> |
| 24 | <field name='LightGlow' type='SFVec3f' accessType='inputOutput'/> |
| 25 | <!-- XYZ Scale of Light Glow Effect (suggest Z=1.0) --> |
| 26 | </ExternProtoDeclare> |
| 27 | <ExternProtoDeclare name='LightedBuoy' url=' "LightedBuoyPrototype.x3d#LightedBuoy" "https://www.web3d.org/x3d/content/examples/Savage/HarborEquipment/NavigationAids/LightedBuoyPrototype.x3d#LightedBuoy" "LightedBuoyPrototype.wrl#LightedBuoy" "https://www.web3d.org/x3d/content/examples/Savage/HarborEquipment/NavigationAids/LightedBuoyPrototype.wrl#LightedBuoy" '> |
| 28 | <!-- NOTE: CATLAM = Catagory of Lateral Marker (Reference: IHO S-57) --> |
| 29 | <field name='Catlam' type='SFInt32' accessType='inputOutput'/> |
| 30 | <!-- 0=None(Unlikely), 1=Green(Port), 2=Red(Starboard) --> |
| 31 | <field name='LightType' type='SFInt32' accessType='inputOutput'/> |
| 32 | <!-- 0=LightOff, 1=LightOn, 2=LightFlashing(NotImplemented) --> |
| 33 | <field name='LightGlow' type='SFVec3f' accessType='inputOutput'/> |
| 34 | <!-- XYZ Scale of Light Glow Effect (suggest Z=1.0) --> |
| 35 | <field name='Number' type='SFInt32' accessType='inputOutput'/> |
| 36 | <!-- Not Implemented --> |
| 37 | </ExternProtoDeclare> |
| 38 | <ExternProtoDeclare name='Light' url=' "LightPrototype.x3d#Light" "https://www.web3d.org/x3d/content/examples/Savage/HarborEquipment/NavigationAids/LightPrototype.x3d#Light" "LightPrototype.wrl#Light" "https://www.web3d.org/x3d/content/examples/Savage/HarborEquipment/NavigationAids/LightPrototype.wrl#Light" '> |
| 39 | <!-- NOTE: CATLAM = Catagory of Lateral Marker (Reference: IHO S-57) --> |
| 40 | <field name='Catlam' type='SFInt32' accessType='inputOutput'/> |
| 41 | <!-- 0=None(Unlikely), 1=Green(Port), 2=Red(Starboard) --> |
| 42 | <field name='LightType' type='SFInt32' accessType='inputOutput'/> |
| 43 | <!-- 0=LightOff, 1=LightOn, 2=LightFlashing(NotImplemented) --> |
| 44 | <field name='LightGlow' type='SFVec3f' accessType='inputOutput'/> |
| 45 | <!-- XYZ Scale of Light Glow Effect (suggest Z=1.0) --> |
| 46 | <field name='PileType' type='SFInt32' accessType='inputOutput'/> |
| 47 | <!-- 0=NoPile(Unlikely), 1=SinglePile, 2=MultiPile --> |
| 48 | <field name='Number' type='SFInt32' accessType='inputOutput'/> |
| 49 | <!-- Not Implemented --> |
| 50 | </ExternProtoDeclare> |
| 51 | <NavigationInfo avatarSize='5.0 1.6 0.75'/> |
| 52 | <Viewpoint description='On Range Line' fieldOfView='0.6024' orientation='1.0 0.0 0.0 0.0' position='0.0 5.0 50.0'/> |
| 53 | <Viewpoint description='Left of Range Line' fieldOfView='0.6024' orientation='1.0 0.0 0.0 0.0' position='-7.0 5.0 50.0'/> |
| 54 | <Viewpoint description='Right of Range Line' fieldOfView='0.6024' orientation='1.0 0.0 0.0 0.0' position='7.0 5.0 50.0'/> |

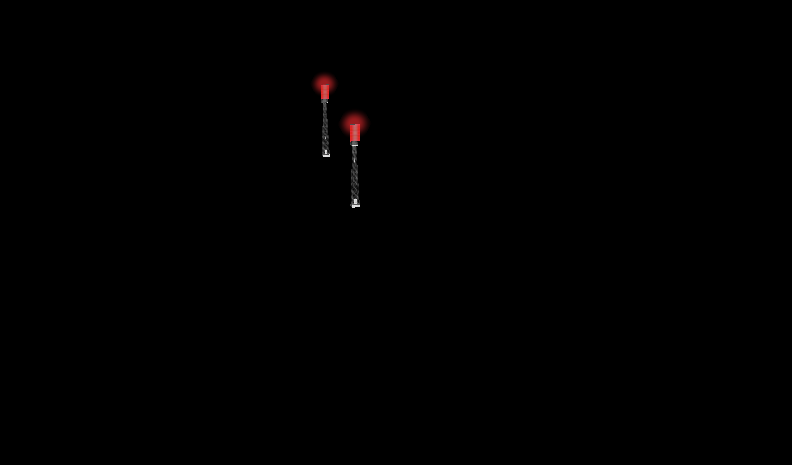

| 55 | <Viewpoint description="Bird's Eye" fieldOfView='0.6024' orientation='0.668 0.7377 0.09804 -0.3928' position='-30.0 30.0 100.0'/> |
| 56 | <Transform DEF='RangeLightFront' rotation='0.0 -1.0 0.0 -3.14159' translation='0.0 0.0 -25.0'> |
| 57 | <!-- Rotate to face South --> |
| 58 | <ProtoInstance name='RangeLight'> |
| 59 | <fieldValue name='LightType' value='1'/> |
| 60 | <!-- LightOn --> |
| 61 | <fieldValue name='LightGlow' value='4.0 4.0 1.0'/> |
| 62 | <!-- Glow effect scaled four times wide (XY only) --> |
| 63 | </ProtoInstance> |
| 64 | </Transform> |
| 65 | <Transform DEF='RangeLightRear' rotation='0.0 -1.0 0.0 -3.14159' translation='0.0 5.0 -50.0'> |
| 66 | <!-- Rotate to face South --> |
| 67 | <ProtoInstance name='RangeLight'> |
| 68 | <fieldValue name='LightType' value='1'/> |
| 69 | <!-- LightOn --> |
| 70 | <fieldValue name='LightGlow' value='4.0 4.0 1.0'/> |
| 71 | <!-- Glow effect scaled four times wide (XY only) --> |
| 72 | </ProtoInstance> |
| 73 | </Transform> |
| 74 | <Transform DEF='LightedBuoyPort' translation='-10.0 0.0 0.0'> |
| 75 | <ProtoInstance name='LightedBuoy'> |
| 76 | <fieldValue name='Catlam' value='1'/> |
| 77 | <!-- Green (Port) --> |
| 78 | <fieldValue name='LightType' value='1'/> |
| 79 | <!-- LightOn --> |
| 80 | <fieldValue name='LightGlow' value='1.0 1.0 1.0'/> |
| 81 | <!-- Glow effect scaled four times wide (XY only) --> |
| 82 | <fieldValue name='Number' value='0'/> |
| 83 | </ProtoInstance> |
| 84 | </Transform> |
| 85 | <Transform DEF='LightedBuoyStarboard' translation='10.0 0.0 0.0'> |
| 86 | <ProtoInstance name='LightedBuoy'> |
| 87 | <fieldValue name='Catlam' value='2'/> |
| 88 | <!-- Red (Starboard) --> |
| 89 | <fieldValue name='LightType' value='1'/> |
| 90 | <!-- LightOn --> |
| 91 | <fieldValue name='LightGlow' value='1.0 1.0 1.0'/> |
| 92 | <!-- Glow effect scaled four times wide (XY only) --> |
| 93 | <fieldValue name='Number' value='0'/> |
| 94 | </ProtoInstance> |
| 95 | </Transform> |
| 96 | <Transform DEF='LightPort' translation='-10.0 0.0 25.0'> |
| 97 | <ProtoInstance name='Light'> |
| 98 | <fieldValue name='Catlam' value='1'/> |
| 99 | <!-- Green (Port) --> |
| 100 | <fieldValue name='LightType' value='1'/> |
| 101 | <!-- LightOn --> |
| 102 | <fieldValue name='LightGlow' value='2.0 2.0 2.0'/> |
| 103 | <!-- Glow effect scaled four times wide (XY only) --> |
| 104 | <fieldValue name='PileType' value='1'/> |
| 105 | <!-- Single Pile --> |
| 106 | <fieldValue name='Number' value='0'/> |
| 107 | </ProtoInstance> |
| 108 | </Transform> |
| 109 | <Transform DEF='LightStarboard' translation='10.0 0.0 25.0'> |
| 110 | <ProtoInstance name='Light'> |
| 111 | <fieldValue name='Catlam' value='2'/> |
| 112 | <!-- Red (Starboard) --> |
| 113 | <fieldValue name='LightType' value='1'/> |
| 114 | <!-- LightOn --> |
| 115 | <fieldValue name='LightGlow' value='2.0 2.0 2.0'/> |
| 116 | <!-- Glow effect scaled four times wide (XY only) --> |
| 117 | <fieldValue name='PileType' value='2'/> |
| 118 | <!-- Multi Pile --> |
| 119 | <fieldValue name='Number' value='0'/> |
| 120 | </ProtoInstance> |
| 121 | </Transform> |
| 122 | </Scene> |
| 123 | </X3D> |
DEF nodes index:
LightedBuoyPort,
LightedBuoyStarboard,
LightPort,
LightStarboard,
RangeLightFront,
RangeLightRear
Event Graph ROUTE Table with 0 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
| line 58
ProtoInstance RangeLight |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 67
ProtoInstance RangeLight |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 75
ProtoInstance LightedBuoy |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 86
ProtoInstance LightedBuoy |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 97
ProtoInstance Light |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 110
ProtoInstance Light |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
<!--
Color-coding legend: X3D terminology
<X3dNode
DEF='idName' field='value'/>
matches XML terminology
<XmlElement
DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement)
(Grey background inside box: inserted documentation)
(Magenta background: X3D Extensibility)
<ProtoInstance name='ProtoName'>
<field
name='fieldName'/> </ProtoInstance>
-->
<!--
