X3D Model Documentation: AmbientIntensity.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">`
3	<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
4	<head>
5	<meta name='title' content='AmbientIntensity.x3d'/>

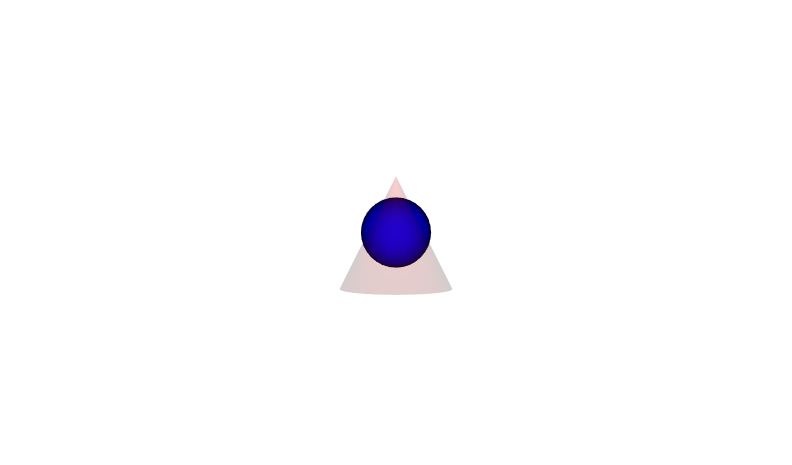

6	<meta name='description' content='This example illustrates the effect of an ambientIntensity field from a Sphere on a Cone. Note that navigation reports of user position and orientation from the WhereAmI prototype appear in the player console.'/>
7	<meta name='creator' content='Leonard Daly and Don Brutzman'/>
8	<meta name='created' content='2 February 2006'/>
9	<meta name='translated' content='2 February 2006'/>
10	<meta name='modified' content='20 October 2019'/>
11	<meta name='reference' content='https://X3dGraphics.com'/>
12	<meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dResources.html'/>
13	<meta name='rights' content='Copyright (c) 2006, Daly Realism and Don Brutzman'/>
14	<meta name='subject' content='X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com'/>
15	<meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/AmbientIntensity.x3d'/>
16	<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
17	<meta name='license' content='../license.html'/>
18	</head>

<!--

Index for DEF node:

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2

Index for ExternProtoDeclare definition: WhereAmI

-->

19	<Scene>
20	<WorldInfo title='AmbientIntensity.x3d'/>
21	<Viewpoint description='Default Viewpoint' position='0 0 10.00'/>
22	<Viewpoint description='Book Viewpoint' orientation='-1. 0.04 0.008 0.2406' position='-0.036 2.17 8.89'/>
23	<Transform>
24	<Shape>
25	<Appearance>
26	<Material diffuseColor='1 0 0' specularColor='0 1 0' transparency='.8'/>
27	</Appearance>
28	<Cone/>
29	</Shape>
30	</Transform>
31	<Transform translation='0 0 -6'>
32	<Shape>
33	<Appearance>
34	<Material ambientIntensity='.8' diffuseColor='0 0 1'/>
35	</Appearance>
36	<Sphere/>
37	</Shape>
38	</Transform>
39	<ExternProtoDeclare name='WhereAmI' url=' "../Chapter14Prototypes/WhereAmIPrototype.x3d#WhereAmI" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter14Prototypes/WhereAmIPrototype.x3d#WhereAmI" "../Chapter14Prototypes/WhereAmIPrototype.wrl#WhereAmI" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter14Prototypes/WhereAmI.wrl#WhereAmI" '/>
40	<ProtoInstance name='WhereAmI'/>
41	<Background skyColor='1 1 1'/>
42	</Scene>
43	</X3D>

<!--

Index for DEF node:

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2

Index for ExternProtoDeclare definition: WhereAmI

-->

X3D Tooltips element index: Appearance, Background, Cone, ExternProtoDeclare, head, Material, meta, ProtoInstance, Scene, Shape, Sphere, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types

-->
