X3D Model Documentation: PixelTextureExample.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Interchange' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' PixelTextureExample.x3d '/>
  6            <meta name='description' content='This example shows a colorful PixelTexture applied to the standard primitive shapes.'/>
  7            <meta name='creator' content='Leonard Daly and Don Brutzman'/>
  8            <meta name='created' content='2 February 2006'/>
  9            <meta name='translated' content='2 February 2006'/>
 10            <meta name='modified' content='27 July 2024'/>
 11            <meta name='reference' content='https://X3dGraphics.com'/>
 12            <meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
 13            <meta name='rights' content='Copyright (c) 2006, Daly Realism and Don Brutzman'/>
 14            <meta name='subject' content='X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com'/>
 15            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter05AppearanceMaterialTextures/PixelTextureExample.x3d '/>
 16            <meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 17            <meta name='license' content='../license.html'/>
 18       </head>
<!--
<!-- -->
<!-- to top DEF node index: PixelColors

Index for Viewpoint node: Viewpoint_1
-->
 19       <Scene>
 20            <WorldInfo title='PixelTextureExample.x3d'/>
 21            <Background skyColor='1 1 1'/>

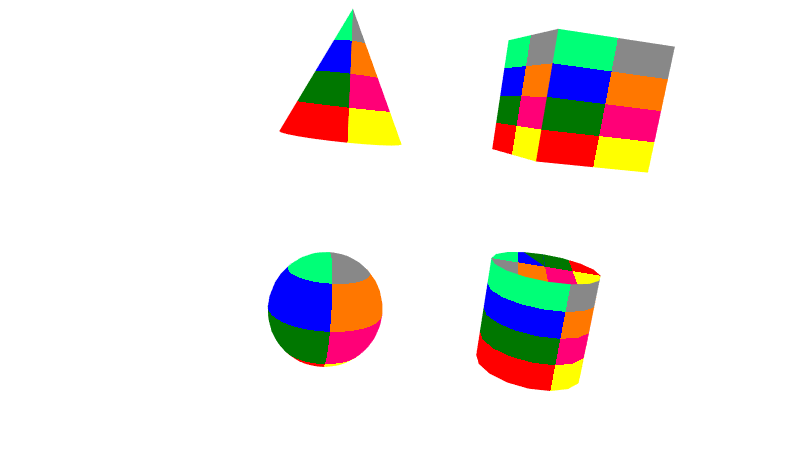

 22            <Viewpoint description='Book Viewpoint' orientation='0.736 0.615 -0.284 -0.32' position='-2.9 1.64 9.33'/>
 23            <Transform translation='2 2 0'>
 24                 <Shape>
 25                      <Appearance>
 26
                         <!-- PixelTexture PixelColors is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 -->
                          <PixelTexture DEF='PixelColors' image='2 4 3 0xff0000 0xffff00 0x007700 0xff0077 0x0000ff 0xff7700 0x00ff77 0x888888' repeatS='false' repeatT='false'/>
 27                      </Appearance>
 28                      <Box/>
 29                 </Shape>
 30            </Transform>
 31            <Transform translation='-2 2 0'>
 32                 <Shape>
 33                      <Appearance>
 34                           <PixelTexture USE='PixelColors'/>
 35                      </Appearance>
 36                      <Cone/>
 37                 </Shape>
 38            </Transform>
 39            <Transform translation='2 -2 0'>
 40                 <Shape>
 41                      <Appearance>
 42                           <PixelTexture USE='PixelColors'/>
 43                      </Appearance>
 44                      <Cylinder/>
 45                 </Shape>
 46            </Transform>
 47            <Transform translation='-2 -2 0'>
 48                 <Shape>
 49                      <Appearance>
 50                           <PixelTexture USE='PixelColors'/>
 51                      </Appearance>
 52                      <Sphere/>
 53                 </Shape>
 54            </Transform>
 55       </Scene>
 56  </X3D>
<!--
<!-- -->
<!-- to top DEF node index: PixelColors

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, Background, Box, Cone, Cylinder, head, meta, PixelTexture, Scene, Shape, Sphere, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types
-->
