X3D Model Documentation: IndexedQuadSetExample.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.1//EN" "https://www.web3d.org/specifications/x3d-3.1.dtd">
  3  <X3D profile='CADInterchange' version='3.1'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.1.xsd'>
  4       <head>
  5            <component level='2' name='CADGeometry'/>
  6            <meta name='title' content='IndexedQuadSetExample.x3d'/>
  7            <meta name='description' content='Simple IndexedQuadSet example.'/>
  8            <meta name='creator' content='Andrew Grieve, Don Brutzman'/>
  9            <meta name='created' content='15 October 2005'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name=' TODO ' content=' create similar test for QuadSet '/>
 12            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Basic/CAD/IndexedQuadSetExample.x3d'/>
 13            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 14            <meta name='license' content='../license.html'/>
 15       </head>
<!--
<!-- -->

<!-- to top Index for DEF nodes: Front, Side, Top

Index for Viewpoint nodes: Front, Side, Top
-->
 16       <Scene>
 17            <WorldInfo title='IndexedQuadSetExample.x3d'/>
 18            <NavigationInfo type='"EXAMINE"'/>

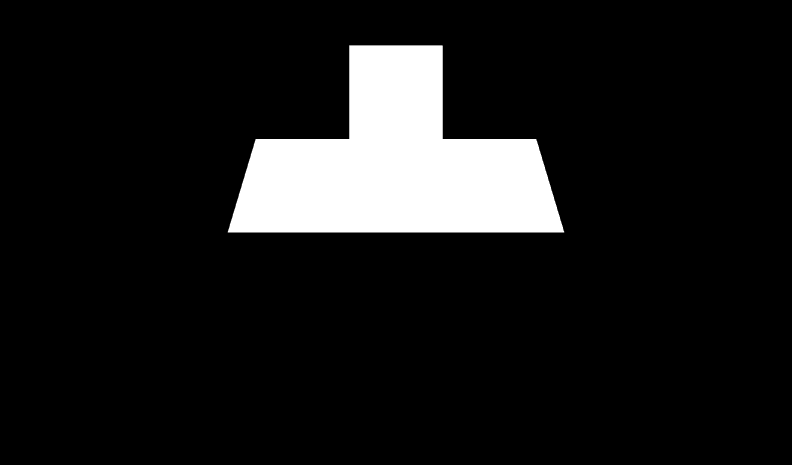

 19            <Viewpoint DEF='Side' description='IndexedQuadSet side view'/>
 20            <Viewpoint DEF='Front' description='IndexedQuadSet front view' orientation='0 1 0 1.57' position='10 0 0'/>
 21            <Viewpoint DEF='Top' description='IndexedQuadSet top view' orientation='1 0 0 -1.57' position='0 10 0'/>
 22            <Transform scale='2 2 2'>
 23                 <Shape>
 24                      <Appearance>
 25                           <Material diffuseColor='1 1 1'/>
 26                      </Appearance>
 27                      <IndexedQuadSet ccw='true' colorPerVertex='true' index='0 3 2 1 4 5 6 7 2 7 9 8 2 3 4 7' normalPerVertex='true' solid='true'>
 28                           <Coordinate point='-1.5 0 0 -1.5 1 -1 -.5 1 -1 -.5 0 0 0.5 0 0 1.5 0 0 1.5 1 -1 0.5 1 -1 -0.5 2 -1 0.5 2 -1'/>
 29                      </IndexedQuadSet>
 30                 </Shape>
 31            </Transform>
 32       </Scene>
 33  </X3D>
<!--
<!-- -->
