  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
  3  <X3D profile='Immersive' version='3.2'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.2.xsd'>
  4       <head>
  5            <component level='1' name='NURBS'/>
  6            <meta name='title' content='NurbsPatchImageTexture.x3d'/>

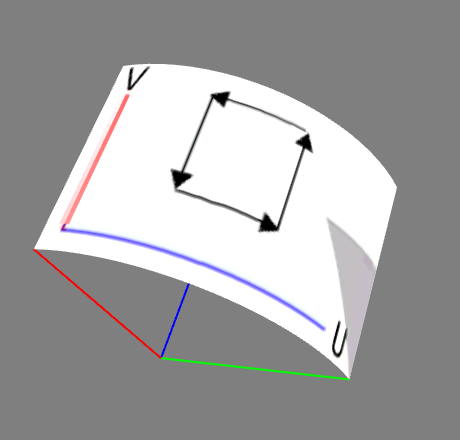

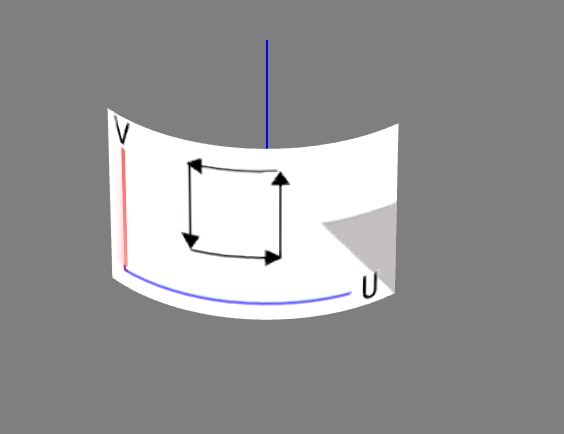

  7            <meta name='description' content='A NURBS patch representing a segment of a cylinder. An applied image texture depicts the u-v axes of the parametric coordinate system. Defined Viewpoints show the inner and outer sides of the cylindrical surface'/>
  8            <meta name='creator' content='Vincent Marchetti'/>
  9            <meta name='created' content='31 August 2011'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name='Image' content='NurbsPatchImageTexture1.jpg'/>
 12            <meta name='Image' content='NurbsPatchImageTexture2.jpg'/>
 13            <meta name=' warning ' content=' Currently only Octaga 2.0 properly implements the X3D NURBS component, see the following page for status. '/>
 14            <meta name=' warning ' content=' http://www.kshell.com/pages/nurbs_surface_demo '/>
 15            <meta name='Image' content='images/NurbsPatchImageTextureBSContact.png'/>
 16            <meta name='Image' content='images/NurbsPatchImageTextureH3dViewer.png'/>

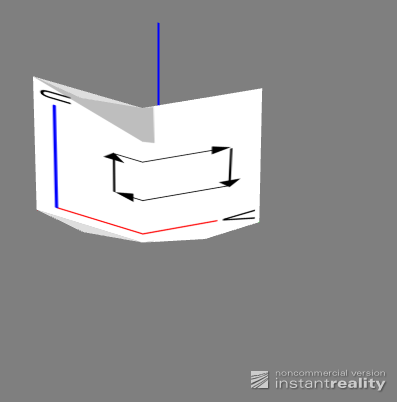

 17            <meta name='Image' content='images/NurbsPatchImageTextureInstantReality.png'/>

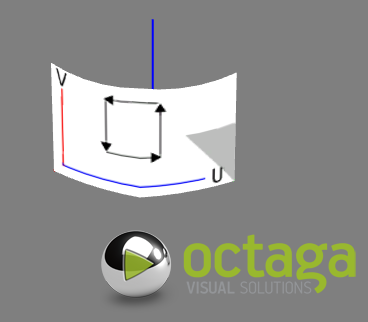

 18            <meta name='Image' content='images/NurbsPatchImageTextureOctagaVS.png'/>

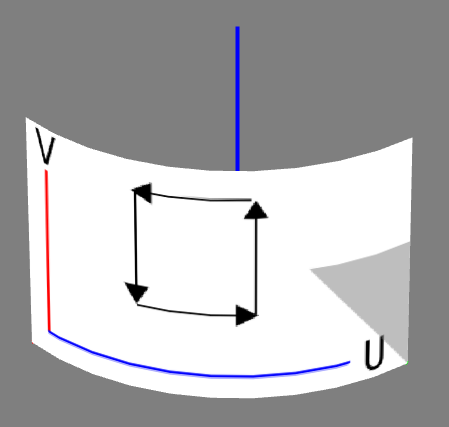

 19            <meta name='Image' content='images/NurbsPatchImageTextureView3dscene.png'/>

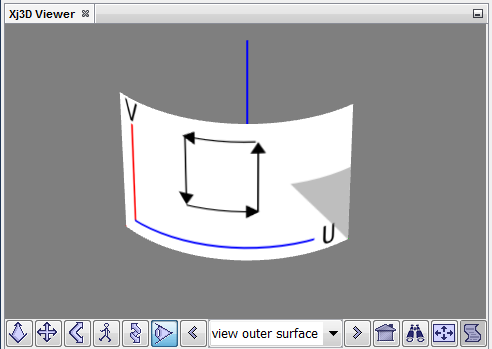

 20            <meta name='Image' content='images/NurbsPatchImageTextureXj3d.png'/>
 21            <meta name='reference' content='http://www.kshell.com/pages/nurbs_surface_demo'/>
 22            <meta name='reference' content='AxesTexture.png'/>
 23            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsPatchImageTexture.x3d'/>
 24            <meta name='generator' content='Python language scripting'/>
 25            <meta name='license' content='../license.html'/>
 26       </head>
<!--
<!-- to top Index for DEF node: Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
 27       <Scene>

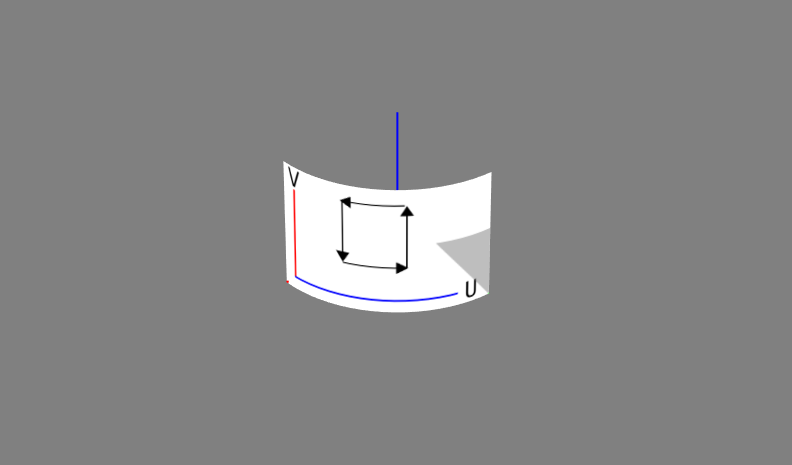

 28            <WorldInfo title='NurbsPatchImageTexture.x3d'/>
 29            <Background skyColor='0.5 0.5 0.5'/>
 30            <Viewpoint description='view outer surface' fieldOfView='0.16628' orientation='0.166 0.465 0.87 2.538' position='10.55 12.855 11.111'/>
 31            <Viewpoint description='view inner surface' fieldOfView='0.16628' orientation='0.797 -0.285 -0.533 1.182' position='-10.55 -12.855 11.111'/>
 32            <Shape>
 33                 <NurbsPatchSurface solid='false' uDimension='5' uKnot='0 0 0 0.5 0.5 1 1 1' vDimension='2' vKnot='0 0 1 1' vOrder='2' weight='1 0.92388 1 0.92388 1 1 0.92388 1 0.92388 1' containerField='geometry'>
 34                      <Coordinate containerField='controlPoint' point='1 0 0 0.92388 0.38268 0 0.70711 0.70711 0 0.38268 0.92388 0 -0.000004 1 0 1 0 1 0.92388 0.38268 0.92388 0.70711 0.70711 1 0.38268 0.92388 0.92388 -0.000004 1 1'/>
 35                 </NurbsPatchSurface>
 36                 <Appearance>
 37                      <ImageTexture   url=' "AxesTexture.png " "https://www.web3d.org/x3d/content/examples/Basic/NURBS/AxesTexture.png " '/>
 38                 </Appearance>
 39            </Shape>
 40            <Group>
 41                 <Shape>
 42                      <LineSet vertexCount='2' containerField='geometry'>
 43                           <Coordinate point='0 0 0 1 0 0'/>
 44                      </LineSet>
 45                      <Appearance>
 46                           <Material emissiveColor='1 0 0'/>
 47                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 48                      </Appearance>
 49                 </Shape>
 50                 <Shape>
 51                      <LineSet vertexCount='2' containerField='geometry'>
 52                           <Coordinate point='0 0 0 0 1 0'/>
 53                      </LineSet>
 54                      <Appearance>
 55                           <Material emissiveColor='0 1 0'/>
 56                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 57                      </Appearance>
 58                 </Shape>
 59                 <Shape>
 60                      <LineSet vertexCount='2' containerField='geometry'>
 61                           <Coordinate point='0 0 0 0 0 1'/>
 62                      </LineSet>
 63                      <Appearance>
 64                           <Material emissiveColor='0 0 1'/>
 65                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 66                      </Appearance>
 67                 </Shape>
 68            </Group>
 69       </Scene>
 70  </X3D>
<!--
