<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
<X3D profile='Immersive'
version='3.2'
xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance'
xsd:noNamespaceSchemaLocation
='
https://www.web3d.org/specifications/x3d-3.2.xsd
'
>
<head>
<component level='1' name='NURBS'/>
<meta name='title' content='
NurbsPatchSolid.x3d
'/>
<meta name='description' content='This scene contains a single NurbsPatchSurface rendering one-quarter of a cylindrical segment. The "solid" field of the surface is set true for single-sided rendering, and Nurbs coordinates are oriented so that the outer surface of the cylinder is visible. Surface has semi-transparent material appearance. Scene also contains unit-length line segments defining x-y-z coordinate axes. Defined Viewpoints show the inner and outer sides of the cylindrical surface'/>

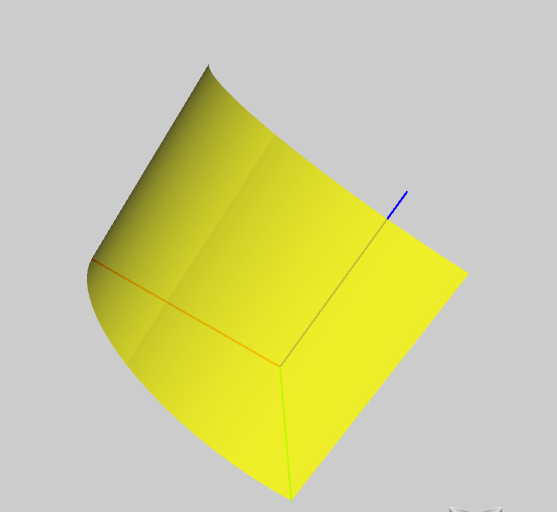

<meta name='Image' content='NurbsPatchSolid1.jpg'
/>

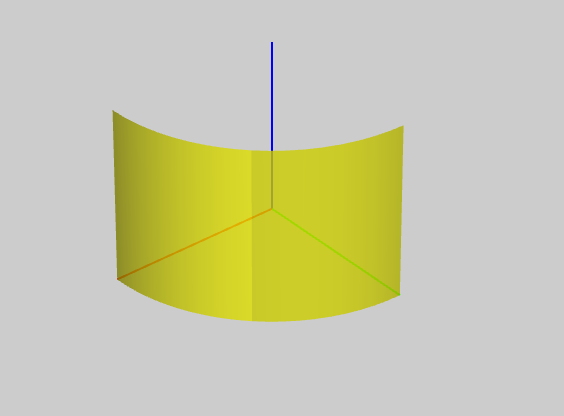

<meta name='Image' content='NurbsPatchSolid2.jpg'
/>
<meta name='creator' content='Vincent Marchetti'/>
<meta name='created' content='10 February 2012'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content='
http://www.kshell.com/pages/nurbs_surface_demo
'/>
<meta name=' TODO ' content=' confirm NurbsPatchSurface validation of Coordinate child? also containerField handling '/>
<meta name='identifier' content='
https://www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsPatchSolid.x3d
'/>
<meta name='generator' content='Python language scripting'/>
<meta name='generator' content='X3D-Edit 3.3,
https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='
../license.html'/>
</head>
<!--
-->
<Scene>
<WorldInfo title='NurbsPatchSolid.x3d'/>
<Background skyColor='0.8 0.8 0.8'/>

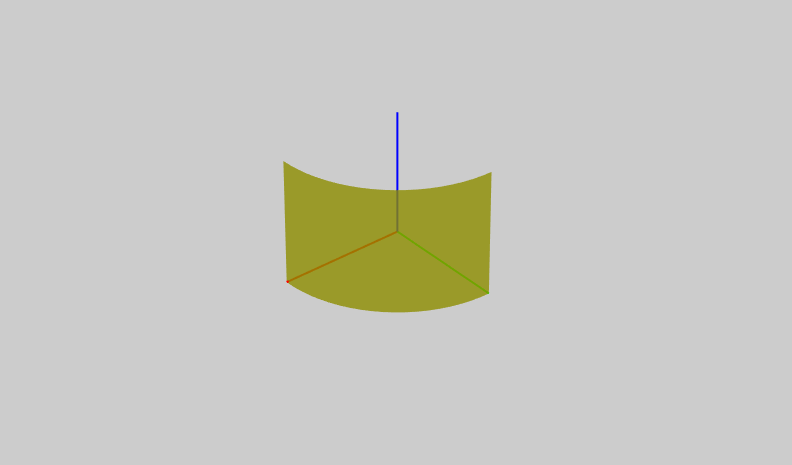

<Viewpoint description='view outer surface' fieldOfView='1.6628e-01' orientation='0.166 0.465 0.870 2.538' position='1.0550e+01 1.2855e+01 1.1111e+01'/>
<Viewpoint description='view inner surface' fieldOfView='1.6628e-01' orientation='0.797 -0.285 -0.533 1.182' position='-1.0550e+01 -1.2855e+01 1.1111e+01'/>
<Shape>
<
NurbsPatchSurface uDimension='
5'
uKnot='
0 0 0 0.5 0.5 1 1 1'
vDimension='
2'
vKnot='
0 0 1 1'
vOrder='
2'
weight='
1 0.923879181092 1 0.923879181092 1 1 0.923879181092 1 0.923879181092 1'
containerField='
geometry'>
<Coordinate containerField='controlPoint' point='1.0000e+00 0.0000e+00 0.0000e+00 9.2388e-01 3.8268e-01 0.0000e+00 7.0711e-01 7.0711e-01 0.0000e+00 3.8268e-01 9.2388e-01 0.0000e+00 0.0000e+00 1.0000e+00 0.0000e+00 1.0000e+00 0.0000e+00 1.0000e+00 9.2388e-01 3.8268e-01 9.2388e-01 7.0711e-01 7.0711e-01 1.0000e+00 3.8268e-01 9.2388e-01 9.2388e-01 0.0000e+00 1.0000e+00 1.0000e+00'/>
</
NurbsPatchSurface>
<Appearance>
<Material diffuseColor='1 1 0' transparency='0.2'/>
</Appearance>
</Shape>
<Group>
<Shape>
<LineSet vertexCount='2' containerField='geometry'>
<Coordinate point='0 0 0.0 1 0 0'/>
</LineSet>
<Appearance>
<Material emissiveColor='1 0 0'/>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
</Appearance>
</Shape>
<Shape>
<LineSet vertexCount='2' containerField='geometry'>
<Coordinate point='0 0 0.0 0 1 0'/>
</LineSet>
<Appearance>
<Material emissiveColor='0 1 0'/>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
</Appearance>
</Shape>
<Shape>
<LineSet vertexCount='2' containerField='geometry'>
<Coordinate point='0 0 0.0 0 0 1'/>
</LineSet>
<Appearance>
<Material emissiveColor='0 0 1'/>
<LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
</Appearance>
</Shape>
</Group>
</Scene>
</X3D>
<!--
-->
-->
<!--
