X3D Model Documentation: NurbsTrimmedSurfaceExample.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
  3  <X3D profile='Immersive' version='3.2'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.2.xsd'>
  4       <head>
  5            <component level='4' name='NURBS'/>
  6            <meta name='title' content=' NurbsTrimmedSurfaceExample.x3d '/>
  7            <meta name='description' content='This scene contains a single NurbsTrimmedSurface rendering one-quarter of a cylindrical segment; with a triangular notch cut from one edge. The "solid" field of the surface is set false so surface is visible from both sides. Surface has semi-transparent material appearance. Scene also contains unit-length line segments defining x-y-z coordinate axes. Defined Viewpoints show the inner and outer sides of the cylindrical surface'/>
  8            <meta name='Image' content='NurbsTrimmedSurface.jpg'/>
  9            <meta name='creator' content='Vincent Marchetti'/>
 10            <meta name='created' content='10 February 2012'/>
 11            <meta name='modified' content='17 June 2020'/>
 12            <meta name='Image' content='images/NurbsTrimmedSurfaceInstantReality.png'/>
 13            <meta name='Image' content='images/NurbsTrimmedSurfaceXj3D.png'/>
 14            <meta name='reference' content='http://www.kshell.com/pages/nurbs_surface_demo'/>
 15            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsTrimmedSurfaceExample.x3d '/>
 16            <meta name='generator' content='Python language scripting'/>
 17            <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 18            <meta name='license' content='../license.html'/>
 19       </head>
<!--
<!-- to top DEF node index: Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
 20       <Scene>
 21            <WorldInfo title='NurbsTrimmedSurfaceExample.x3d'/>
 22            <Background skyColor='0.8 0.8 0.8'/>

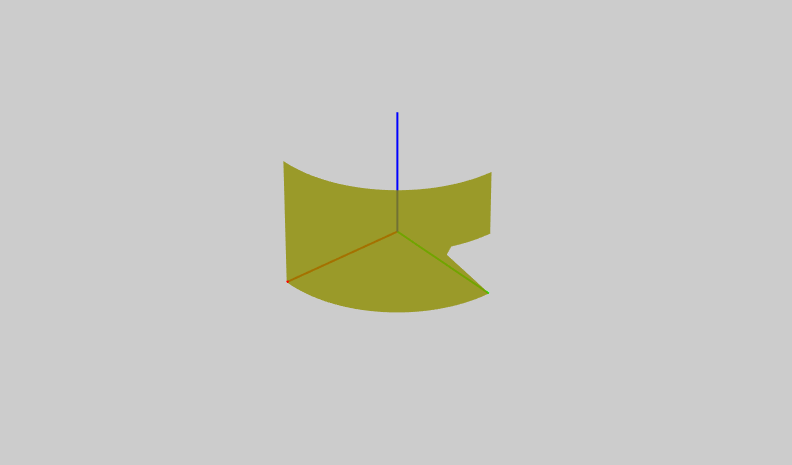

 23            <Viewpoint description='view outer surface' fieldOfView='0.16628' orientation='0.166 0.465 0.87 2.538' position='10.55 12.855 11.111'/>
 24            <Viewpoint description='view inner surface' fieldOfView='0.16628' orientation='0.797 -0.285 -0.533 1.182' position='-10.55 -12.855 11.111'/>
 25            <Shape>
 26                 <NurbsTrimmedSurface solid='false' uDimension='5' uKnot='0.0 0.0 0.0 0.5 0.5 1.0 1.0 1.0' vDimension='2' vKnot='0.0 0.0 1.0 1.0' vOrder='2' weight='1.0 0.923879181092 1.0 0.923879181092 1.0 1.0 0.923879181092 1.0 0.923879181092 1.0' containerField='geometry'>
 27                      <Coordinate containerField='controlPoint' point='1 0 0 0.92388 0.38268 0 0.70711 0.70711 0 0.38268 0.92388 0 -0.000004 1 0 1 0 1 0.92388 0.38268 0.92388 0.70711 0.70711 1 0.38268 0.92388 0.92388 -0.000004 1 1'/>
 28                      <Contour2D containerField='trimmingContour'>
 29                           <NurbsCurve2D controlPoint='0 0 1 0 0.75 0.5 1 0.5 1 1 0 1 0 0' knot='0 0 0.16667 0.33333 0.5 0.66667 0.83333 1 1' order='2' weight='1 1 1 1 1 1 1' containerField='children'/>
 30                      </Contour2D>
 31                 </NurbsTrimmedSurface>
 32                 <Appearance>
 33                      <Material diffuseColor='1 1 0' transparency='0.2'/>
 34                 </Appearance>
 35            </Shape>
 36            <Group>
 37                 <Shape>
 38                      <LineSet vertexCount='2' containerField='geometry'>
 39                           <Coordinate point='0 0 0 1 0 0'/>
 40                      </LineSet>
 41                      <Appearance>
 42                           <Material emissiveColor='1 0 0'/>
 43                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 44                      </Appearance>
 45                 </Shape>
 46                 <Shape>
 47                      <LineSet vertexCount='2' containerField='geometry'>
 48                           <Coordinate point='0 0 0 0 1 0'/>
 49                      </LineSet>
 50                      <Appearance>
 51                           <Material emissiveColor='0 1 0'/>
 52                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 53                      </Appearance>
 54                 </Shape>
 55                 <Shape>
 56                      <LineSet vertexCount='2' containerField='geometry'>
 57                           <Coordinate point='0 0 0 0 0 1'/>
 58                      </LineSet>
 59                      <Appearance>
 60                           <Material emissiveColor='0 0 1'/>
 61                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 62                      </Appearance>
 63                 </Shape>
 64            </Group>
 65       </Scene>
 66  </X3D>
<!--
