simultaneous.x3d (X3dToXhtml listing)

Event Graph ROUTE Table entries with 14 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

TOUCHMULTI TouchSensor touchTime SFTime	→ ROUTE event to (1)	SOUND2 AudioClip set_startTime SFTime	then	SOUND2 AudioClip isActive SFBool	→ ROUTE event to (2)	SOUND_SCRIPT Script colorPhonograph2 SFBool
TOUCHMULTI TouchSensor touchTime SFTime	→ ROUTE event to (1)	MULTITIMER TimeSensor set_startTime SFTime	then	MULTITIMER TimeSensor fraction_changed SFFloat	→ ROUTE event to (2)	MULTIFLASH ColorInterpolator set_fraction SFFloat	then	MULTIFLASH ColorInterpolator value_changed SFColor	→ ROUTE event to (3)	MULTIMATERIAL Material set_diffuseColor SFColor

TOUCHSINGLE TouchSensor touchTime SFTime	→ ROUTE event to (1)	SOUND1 AudioClip set_startTime SFTime	then	SOUND1 AudioClip isActive SFBool	→ ROUTE event to (2)	SOUND_SCRIPT Script colorPhonograph1 SFBool
TOUCHSINGLE TouchSensor touchTime SFTime	→ ROUTE event to (1)	SINGLETIMER TimeSensor set_startTime SFTime	then	SINGLETIMER TimeSensor fraction_changed SFFloat	→ ROUTE event to (2)	SINGLEFLASH ColorInterpolator set_fraction SFFloat	then	SINGLEFLASH ColorInterpolator value_changed SFColor	→ ROUTE event to (3)	SINGLEMATERIAL Material set_diffuseColor SFColor

PROX_SENSOR ProximitySensor position_changed SFVec3f	→ ROUTE event to (1)	SINGLE_TRANS Transform set_translation SFVec3f
PROX_SENSOR ProximitySensor orientation_changed SFRotation	→ ROUTE event to (1)	SINGLE_TRANS Transform set_rotation SFRotation
PROX_SENSOR ProximitySensor position_changed SFVec3f	→ ROUTE event to (1)	MULTI_TRANS Transform set_translation SFVec3f
PROX_SENSOR ProximitySensor orientation_changed SFRotation	→ ROUTE event to (1)	MULTI_TRANS Transform set_rotation SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">`
3	<X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
4	<head>
5	<meta name='title' content='simultaneous.x3d'/>
6	<meta name='MovingImage' content='simultaneous-movie.mpg'/>
7	<meta name='reference' content='http://www.nist.gov/vrml.html'/>
8	<meta name='reference' content='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
9	<meta name='creator' content='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
10	<meta name='disclaimer' content='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
11	<meta name='reference' content='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
12	<meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
13	<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
14	<meta name='translated' content='21 January 2001'/>
15	<meta name='modified' content='28 August 2023'/>
16	<meta name='description' content='Test simultaneous playing sounds. Two Sound node with default parameters, each with a seperate sound source, are located at the origin of the local coordinate system. The initial Viewpoint in this world is 5 meters in front of the origin. Pressing on both of the "Sound 1" and "Sound 2" buttons should produce simultaneously playing "chime" sounds. The "phonograph" geometry should turn yellow while a sound source is playing.'/>
17	<meta name='identifier' content='https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/Sound/simultaneous.x3d'/>
18	<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
19	<meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
20	<meta name='license' content='../../license.html'/>
21	</head>

22	<Scene>
23	<WorldInfo title='simultaneous.x3d'/>

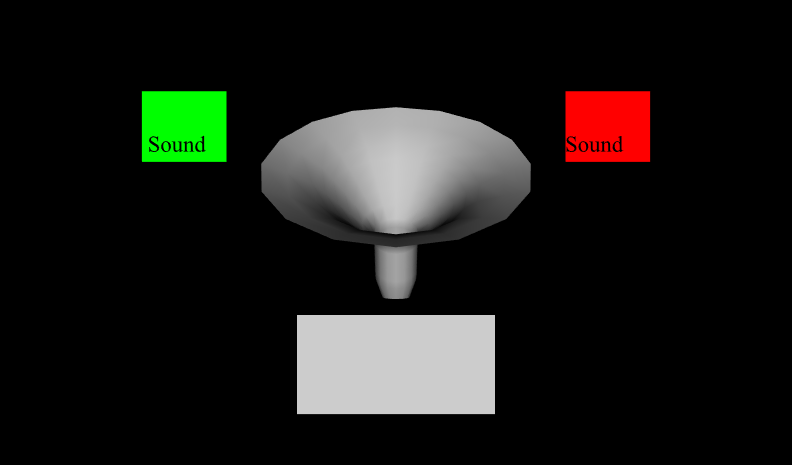

24	<Viewpoint description='entry view' position='0 0 5'/>
25	<!-- ROUTE information for PROX_SENSOR node: [from position_changed to SINGLE_TRANS.set_translation ] [from orientation_changed to SINGLE_TRANS.set_rotation ] [from position_changed to MULTI_TRANS.set_translation ] [from orientation_changed to MULTI_TRANS.set_rotation ] --> <ProximitySensor DEF='PROX_SENSOR' size='1000 1000 1000'/>
26	<Sound>
27	<!-- AudioClip SOUND1 is a DEF node that has 1 USE node: USE_1 <!-- ROUTE information for SOUND1 node: [from TOUCHSINGLE.touchTime to set_startTime ] [from isActive to SOUND_SCRIPT.colorPhonograph1 ] --> <AudioClip DEF='SOUND1' description='chimes' url=' "chimes10.wav" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/chimes.wav" '/>
28	</Sound>
29	<Sound>
30	<!-- AudioClip SOUND2 is a DEF node that has 1 USE node: USE_1 <!-- ROUTE information for SOUND2 node: [from TOUCHMULTI.touchTime to set_startTime ] [from isActive to SOUND_SCRIPT.colorPhonograph2 ] --> <AudioClip DEF='SOUND2' description='long chimes' url=' "longchimes.wav" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/chimes.wav" '/>
31	</Sound>
32	<Transform scale='0.5 0.5 0.5'>
33	<Transform translation='0 -2 0'>
34	<Shape>
35	<Appearance>
36	<!-- Material PHONOCOLOR is a DEF node that has 1 USE node: USE_1 --> <Material DEF='PHONOCOLOR'/>
37	</Appearance>
38	<Box size='3 1.5 3'/>
39	</Shape>
40	</Transform>
41	<Transform rotation='1 0 0 -2.5'>
42	<Shape>
43	<Appearance>
44	<!-- Material HORNCOLOR is a DEF node that has 1 USE node: USE_1 --> <Material DEF='HORNCOLOR'/>
45	</Appearance>
46	<Extrusion beginCap='false' creaseAngle='1.57' crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0' endCap='false' orientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0' scale='2.2 2.2 1.8 1.8 1.4 1.4 1.2 1.2 1 1 0.8 0.8 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.2 0.2 0.0001 0.0001' solid='false' spine='0 -1.4 0 0 -1.22137 0 0 -1.01245 0 0 -0.819601 0 0 -0.626754 0 0 -0.401765 0 0 -0.204459 0 0 -0.0164327 0 0 0.176777 0 0 0.380511 0 0 0.578542 0 0 0.819601 0 0 0.996378 0 0 1.8 0 0 1.2 0'/>
47	</Shape>
48	</Transform>
49	</Transform>
50	<!-- ROUTE information for SINGLE_TRANS node: [from PROX_SENSOR.position_changed to set_translation ] [from PROX_SENSOR.orientation_changed to set_rotation ] --> <Transform DEF='SINGLE_TRANS'>
51	<Transform translation='-3 1.5 -8'>
52	<Shape>
53	<Appearance>
54	<!-- ROUTE information for SINGLEMATERIAL node: [from SINGLEFLASH.value_changed to set_diffuseColor ] --> <Material DEF='SINGLEMATERIAL' ambientIntensity='1' diffuseColor='0 1 0'/>
55	</Appearance>
56	<Box DEF='SINGLE' size='1.2 1 0.1'/>
57	</Shape>
58	<Transform translation='-0.45 0 0.2'>
59	<Shape>
60	<Appearance>
61	<Material ambientIntensity='1' diffuseColor='0 0 0'/>
62	</Appearance>
63	<Text string='"Sound" "1"'>
64	<FontStyle size='0.4'/>
65	</Text>
66	</Shape>
67	</Transform>
68	</Transform>
69	<!-- ROUTE information for TOUCHSINGLE node: [from touchTime to SOUND1.set_startTime ] [from touchTime to SINGLETIMER.set_startTime ] --> <TouchSensor DEF='TOUCHSINGLE' description='touch to activate single'/>
70	<!-- ROUTE information for SINGLETIMER node: [from TOUCHSINGLE.touchTime to set_startTime ] [from fraction_changed to SINGLEFLASH.set_fraction ] --> <TimeSensor DEF='SINGLETIMER'/>
71	<!-- ROUTE information for SINGLEFLASH node: [from SINGLETIMER.fraction_changed to set_fraction ] [from value_changed to SINGLEMATERIAL.set_diffuseColor ] --> <ColorInterpolator DEF='SINGLEFLASH' key='0 0.5 1' keyValue='0 1 0 1 1 1 0 1 0'/>
72	</Transform>
73	<!-- ROUTE information for MULTI_TRANS node: [from PROX_SENSOR.position_changed to set_translation ] [from PROX_SENSOR.orientation_changed to set_rotation ] --> <Transform DEF='MULTI_TRANS'>
74	<Transform translation='3 1.5 -8'>
75	<Shape>
76	<Appearance>
77	<!-- ROUTE information for MULTIMATERIAL node: [from MULTIFLASH.value_changed to set_diffuseColor ] --> <Material DEF='MULTIMATERIAL' ambientIntensity='1' diffuseColor='1 0 0'/>
78	</Appearance>
79	<Box DEF='MULTI' size='1.2 1 0.1'/>
80	</Shape>
81	<Transform translation='-0.65 0 0.2'>
82	<Shape>
83	<Appearance>
84	<Material ambientIntensity='1' diffuseColor='0 0 0'/>
85	</Appearance>
86	<Text string='"Sound" "2"'>
87	<FontStyle size='0.4'/>
88	</Text>
89	</Shape>
90	</Transform>
91	</Transform>
92	<!-- ROUTE information for TOUCHMULTI node: [from touchTime to SOUND2.set_startTime ] [from touchTime to MULTITIMER.set_startTime ] --> <TouchSensor DEF='TOUCHMULTI' description='touch to activate multiple'/>
93	<!-- ROUTE information for MULTITIMER node: [from TOUCHMULTI.touchTime to set_startTime ] [from fraction_changed to MULTIFLASH.set_fraction ] --> <TimeSensor DEF='MULTITIMER'/>
94	<!-- ROUTE information for MULTIFLASH node: [from MULTITIMER.fraction_changed to set_fraction ] [from value_changed to MULTIMATERIAL.set_diffuseColor ] --> <ColorInterpolator DEF='MULTIFLASH' key='0 0.5 1' keyValue='1 0 0 1 1 1 1 0 0'/>
95	</Transform>
96	<!-- ROUTE information for SOUND_SCRIPT node: [from SOUND1.isActive to colorPhonograph1 ] [from SOUND2.isActive to colorPhonograph2 ] --> <Script DEF='SOUND_SCRIPT' directOutput='true' url=' "simultaneous.js" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/Sound/simultaneous.js" '>
97	<field name='sound1' type='SFNode' accessType='initializeOnly'>
98	<AudioClip USE='SOUND1'/>
99	</field>
100	<field name='sound2' type='SFNode' accessType='initializeOnly'>
101	<AudioClip USE='SOUND2'/>
102	</field>
103	<field name='phonoColor' type='SFNode' accessType='initializeOnly'>
104	<Material USE='PHONOCOLOR'/>
105	</field>
106	<field name='hornColor' type='SFNode' accessType='initializeOnly'>
107	<Material USE='HORNCOLOR'/>
108	</field>
109	<field name='yellow' type='SFColor' value='0.75 0.75 0.00' accessType='initializeOnly'/>
110	<field name='white' type='SFColor' value='0.80 0.80 0.80' accessType='initializeOnly'/>
111	<field name='colorPhonograph1' type='SFBool' accessType='inputOnly'/>
112	<field name='colorPhonograph2' type='SFBool' accessType='inputOnly'/>
113	</Script>
114	< ROUTE fromNode='TOUCHSINGLE' fromField='touchTime' toNode='SOUND1' toField='set_startTime'/>
115	< ROUTE fromNode='TOUCHMULTI' fromField='touchTime' toNode='SOUND2' toField='set_startTime'/>
116	< ROUTE fromNode='SOUND1' fromField='isActive' toNode='SOUND_SCRIPT' toField='colorPhonograph1'/>
117	< ROUTE fromNode='SOUND2' fromField='isActive' toNode='SOUND_SCRIPT' toField='colorPhonograph2'/>
118	< ROUTE fromNode='TOUCHSINGLE' fromField='touchTime' toNode='SINGLETIMER' toField='set_startTime'/>
119	< ROUTE fromNode='SINGLETIMER' fromField='fraction_changed' toNode='SINGLEFLASH' toField='set_fraction'/>
120	< ROUTE fromNode='SINGLEFLASH' fromField='value_changed' toNode='SINGLEMATERIAL' toField='set_diffuseColor'/>
121	< ROUTE fromNode='TOUCHMULTI' fromField='touchTime' toNode='MULTITIMER' toField='set_startTime'/>
122	< ROUTE fromNode='MULTITIMER' fromField='fraction_changed' toNode='MULTIFLASH' toField='set_fraction'/>
123	< ROUTE fromNode='MULTIFLASH' fromField='value_changed' toNode='MULTIMATERIAL' toField='set_diffuseColor'/>
124	< ROUTE fromNode='PROX_SENSOR' fromField='position_changed' toNode='SINGLE_TRANS' toField='set_translation'/>
125	< ROUTE fromNode='PROX_SENSOR' fromField='orientation_changed' toNode='SINGLE_TRANS' toField='set_rotation'/>
126	< ROUTE fromNode='PROX_SENSOR' fromField='position_changed' toNode='MULTI_TRANS' toField='set_translation'/>
127	< ROUTE fromNode='PROX_SENSOR' fromField='orientation_changed' toNode='MULTI_TRANS' toField='set_rotation'/>
128	</Scene>
129	</X3D>
