X3D Model Documentation: test_intensitycom.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='test_intensitycom.x3d'/>
  6            <meta name='MovingImage' content='test-intensitycom-movie.mpg'/>
  7            <meta name='reference' content='http://www.nist.gov/vrml.html'/>
  8            <meta name='reference' content='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
  9            <meta name='creator' content='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
 10            <meta name='disclaimer' content='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
 11            <meta name='reference' content='Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml'/>
 12            <meta name='reference' content='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
 13            <meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
 14            <meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
 15            <meta name='translated' content='21 January 2001'/>
 16            <meta name='modified' content='28 August 2023'/>
 17            <meta name='description' content='Test browser to set the intensity field to a range of values on complex geometry (Extrusion, ElevationGrid and IndexedFaceSet). One row of the complex geometry is drawn in the local coordinate system. The intensity of the light should increase as the animation progresses. The animation is started by clicking on the text above the geometry. The intensity ranges from 0 to 1.'/>
 18            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/ConformanceNist/Lights/DirectionalLight/test_intensitycom.x3d'/>
 19            <meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 20            <meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
 21            <meta name='license' content='../../license.html'/>
 22       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: text-color, text-time, the-click, the-intensity, the-light, the-time, the-touch

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4
-->
 23       <Scene>
 24            <WorldInfo title='test_intensitycom.x3d'/>
 25            <Group>
 26                 <Viewpoint description='Front View' position='0 0 5'/>

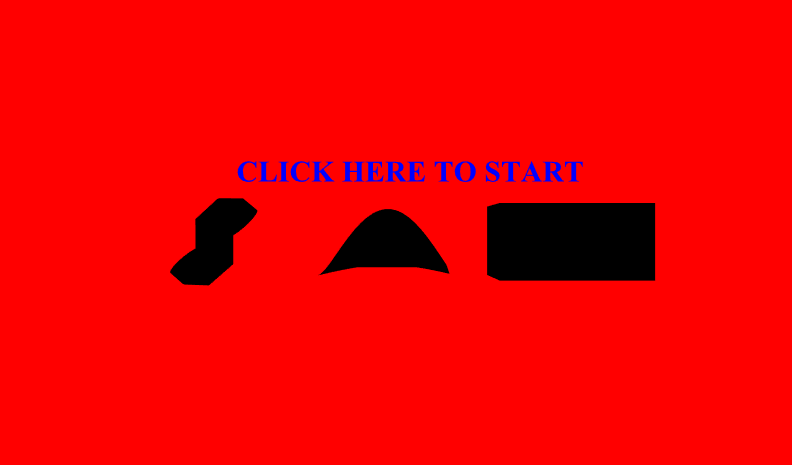

 27                 <Viewpoint description='Right View' orientation='0 1 0 1.57' position='10 0 -4.5'/>

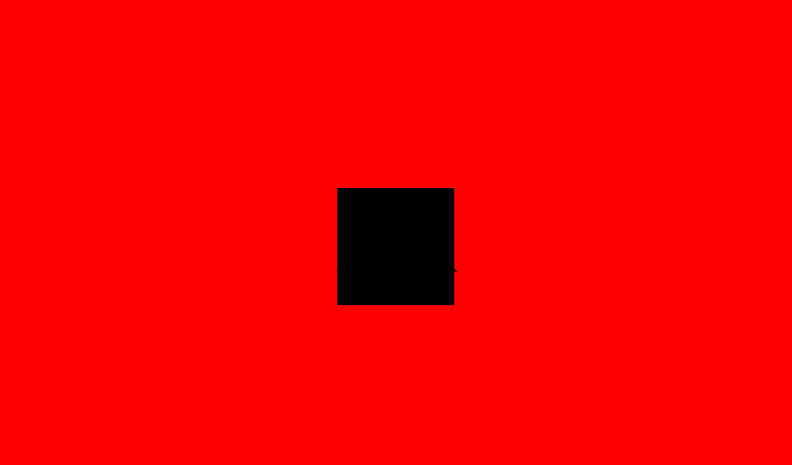

 28                 <Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-10 0 -4.5'/>

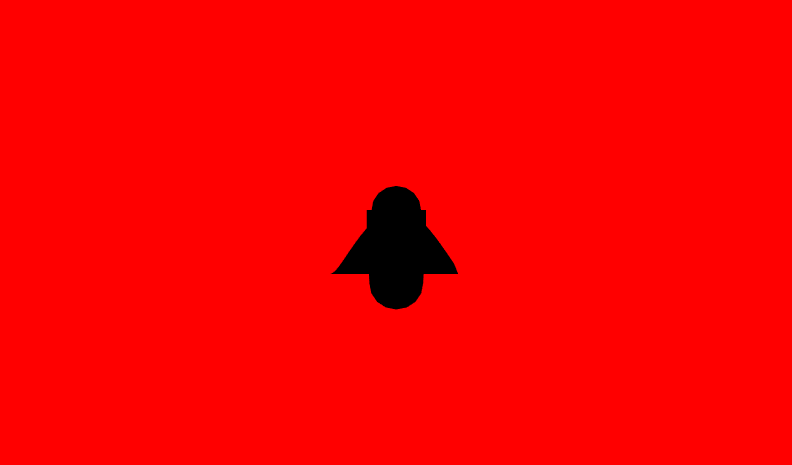

 29                 <Viewpoint description='Top View' orientation='1 0 0 -1.57' position='0 10 -4.5'/>
 30            </Group>
 31            <Background groundColor='0 0 0' skyColor='1 0 0'/>
 32            <NavigationInfo headlight='false' type='"EXAMINE" "WALK" "FLY" "ANY"'/>
 33            <PointLight on='false'/>
 34            <SpotLight beamWidth='1.570796' cutOffAngle='.785398' on='false'/>
 35            <Transform scale='0.02 0.02 0.02' translation='-2.7 1.3 -4.5'>
 36                 <Shape>
 37                      <Appearance>
 38
                         <!-- ROUTE information for the-click node:  [from text-color.value_changed to emissiveColor ] -->
                          <Material DEF='the-click' ambientIntensity='1' emissiveColor='0 0 1'/>
 39                      </Appearance>
 40                      <Text string='"CLICK HERE TO START"'>
 41                           <FontStyle size='32' style='BOLD'/>
 42                      </Text>
 43                 </Shape>
 44
               <!-- ROUTE information for the-touch node:  [from touchTime to the-time.startTime ] [from touchTime to text-time.startTime ] -->
                <TouchSensor DEF='the-touch' description='touch to activate'/>
 45            </Transform>
 46            <Group>
 47
               <!-- ROUTE information for the-light node:  [from the-intensity.value_changed to intensity ] -->
                <DirectionalLight DEF='the-light' intensity='0'/>
 48
               <!-- ROUTE information for the-time node:  [from the-touch.touchTime to startTime ] [from fraction_changed to the-intensity.set_fraction ] -->
                <TimeSensor DEF='the-time' cycleInterval='8'/>
 49
               <!-- ROUTE information for text-time node:  [from the-touch.touchTime to startTime ] [from fraction_changed to text-color.set_fraction ] -->
                <TimeSensor DEF='text-time'/>
 50
               <!-- ROUTE information for the-intensity node:  [from the-time.fraction_changed to set_fraction ] [from value_changed to the-light.intensity ] -->
                <ScalarInterpolator DEF='the-intensity' key='0.1 0.2 0.4 0.6 0.8 1' keyValue='0 0.2 0.4 0.6 0.8 1'/>
 51
               <!-- ROUTE information for text-color node:  [from text-time.fraction_changed to set_fraction ] [from value_changed to the-click.emissiveColor ] -->
                <ColorInterpolator DEF='text-color' key='0 0.5 1' keyValue='0 0 1 1 1 1 0 0 1'/>
 52                 <Transform translation='-1.18587 -0.651405 -5.5323'>
 53                      <Shape>
 54                           <Appearance>
 55                                <Material/>
 56                           </Appearance>
 57                           <ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
 58                      </Shape>
 59                 </Transform>
 60                 <Transform scale='0.313408 0.313408 0.313407' translation='-3.07052 -0.154345 -4.50195'>
 61                      <Shape>
 62                           <Appearance>
 63                                <Material/>
 64                           </Appearance>
 65                           <Extrusion crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0' orientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0' scale='1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1' solid='false' spine='-1.58296 -1.01245 0 -1.21333 -1.39814 0 -0.618718 -1.41421 0 0 -1 0 0 1 0 0.554436 1.39814 0 1.18119 1.39814 0 1.56688 1.01245 0'/>
 66                      </Shape>
 67                 </Transform>
 68                 <Transform scale='0.615111 0.615111 0.615112' translation='2.87214 -0.147732 -4.50195'>
 69                      <Shape>
 70                           <Appearance>
 71                                <Material/>
 72                           </Appearance>
 73                           <IndexedFaceSet creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
 74                                <Coordinate point='-2 1 1 -2 -1 1 2 1 1 2 -1 1 2 1 -1 2 -1 -1 -2 1 -1 -2 -1 -1'/>
 75                           </IndexedFaceSet>
 76                      </Shape>
 77                 </Transform>
 78            </Group>
 79            < ROUTE  fromNode='the-touch' fromField='touchTime' toNode='the-time' toField='startTime'/>
 80            < ROUTE  fromNode='the-touch' fromField='touchTime' toNode='text-time' toField='startTime'/>
 81            < ROUTE  fromNode='text-time' fromField='fraction_changed' toNode='text-color' toField='set_fraction'/>
 82            < ROUTE  fromNode='text-color' fromField='value_changed' toNode='the-click' toField='emissiveColor'/>
 83            < ROUTE  fromNode='the-time' fromField='fraction_changed' toNode='the-intensity' toField='set_fraction'/>
 84            < ROUTE  fromNode='the-intensity' fromField='value_changed' toNode='the-light' toField='intensity'/>
 85       </Scene>
 86  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: text-color, text-time, the-click, the-intensity, the-light, the-time, the-touch

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4
-->
X3D Tooltips element index: Appearance, Background, ColorInterpolator, Coordinate, DirectionalLight, ElevationGrid, Extrusion, FontStyle, Group, head, IndexedFaceSet, Material, meta, NavigationInfo, PointLight, ROUTE, ScalarInterpolator, Scene, Shape, SpotLight, Text, TimeSensor, TouchSensor, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types

Event Graph ROUTE Table entries with 6 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

the-touch
TouchSensor
touchTime
SFTime
→
ROUTE
event to
(1)
the-time
TimeSensor
startTime
SFTime 		then


  		the-time
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(2)
the-intensity
ScalarInterpolator
set_fraction
SFFloat 		then


  		the-intensity
ScalarInterpolator
value_changed
SFFloat
→
ROUTE
event to
(3)
the-light
DirectionalLight
intensity
SFFloat
the-touch
TouchSensor
touchTime
SFTime
→
ROUTE
event to
(1)
text-time
TimeSensor
startTime
SFTime 		then


  		text-time
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(2)
text-color
ColorInterpolator
set_fraction
SFFloat 		then


  		text-color
ColorInterpolator
value_changed
SFColor
→
ROUTE
event to
(3)
the-click
Material
emissiveColor
SFColor

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
