Viewpoint Slideshow: Conformance Nist X3D Examples Archive, Special Groups, LOD

X3D Example Archives: Conformance Nist, Special Groups, LOD

Directory Viewpoint Slideshow

LOD (Level Of Detail) uses camera-to-object distance to switch among contained child levels. (Contained nodes are now called 'children' rather than 'level', for consistent naming among all GroupingNodeType nodes.) LOD range values go from near to far (as child geometry gets simpler for better performance). For n range values, you must have n+1 children levels! Only currently selected children level is rendered, but all levels continue to send/receive events.

X3D Tooltips of interest: LOD.

X3D Specification sections of interest: 23 Navigation component, 23.2 Concepts and 23.4.3 LOD.

X3D Examples Archives of related interest:

VRML 2 Sourcebook: Chapter 25 Level Of Detail
X3D for Web Authors: Chapter 03 Grouping

10 X3D Models		13 X3D Model Viewpoint Snapshots

	bound 500.x3d		[1] bound_500.x3d user avatar position
	bound 500.x3d		[2] bound_500.x3d (default X3D view from 0 0 10)

	empty range.x3d		[3] empty_range.x3d user avatar position

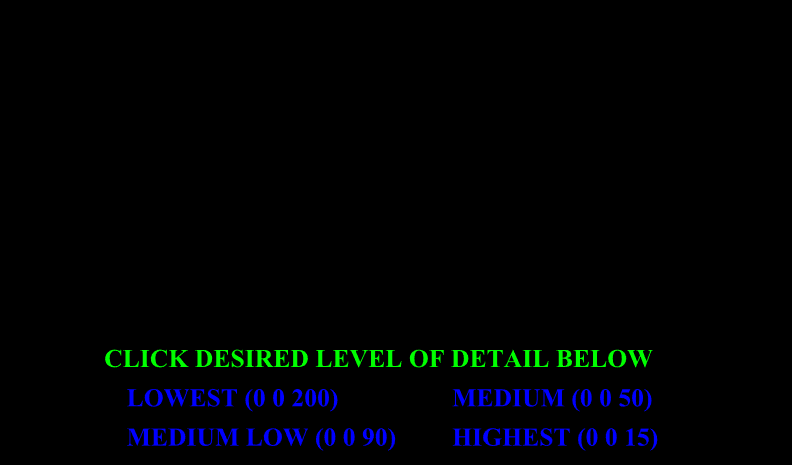

	empty range.x3d		[4] empty_range.x3d (default X3D view from 0 0 10)

	extra levels.x3d		[5] extra_levels.x3d user avatar position
	extra levels.x3d		[6] extra_levels.x3d (default X3D view from 0 0 10)

	few levels.x3d		[7] few_levels.x3d user avatar position

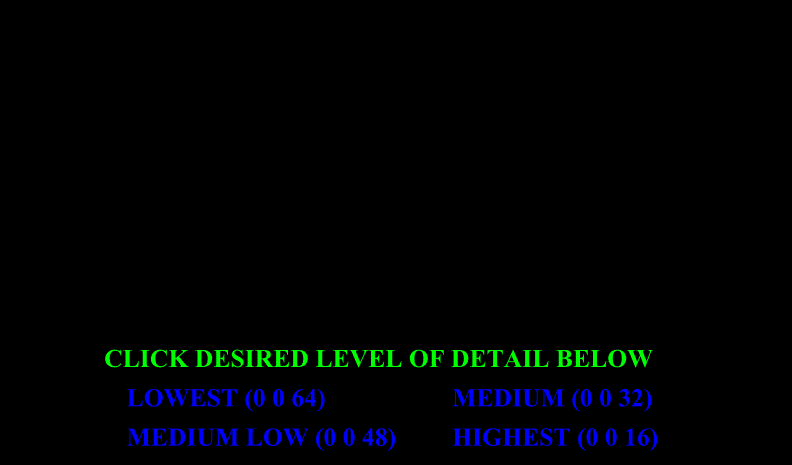

	few levels.x3d		[8] few_levels.x3d (default X3D view from 0 0 10)

	multiple level.x3d		[9] multiple_level.x3d user avatar position
	multiple level.x3d		[10] multiple_level.x3d (default X3D view from 0 0 10)

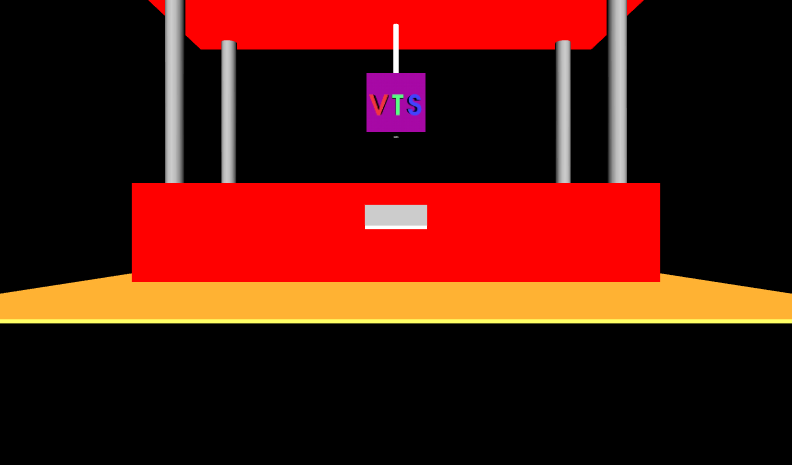

	ref 1.x3d		[11] ref1.x3d (default X3D view from 0 0 10)

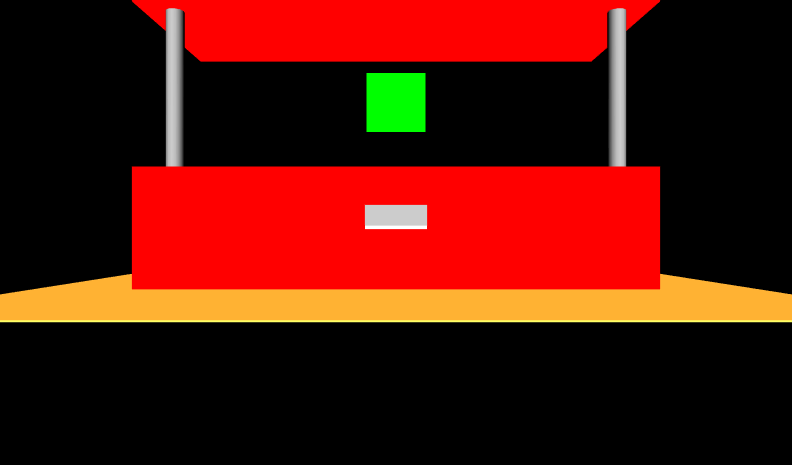

	ref 2.x3d		[12] ref2.x3d (default X3D view from 0 0 10)

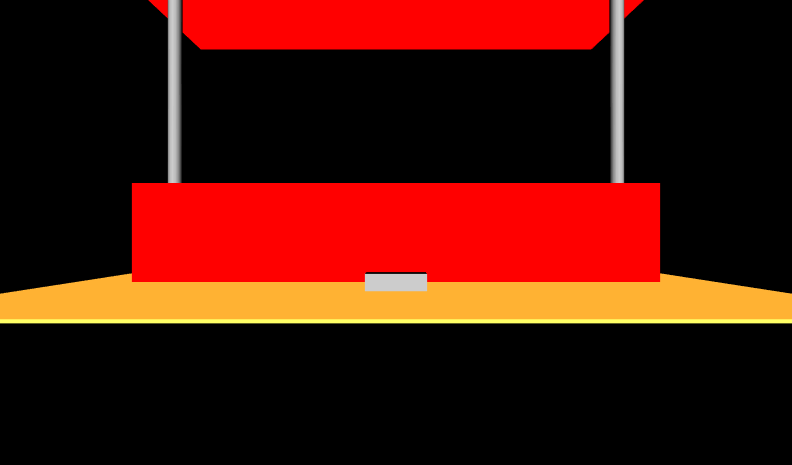

	ref 3.x3d		[13] ref3.x3d (default X3D view from 0 0 10)

	ref 4.x3d		[14] ref4.x3d (default X3D view from 0 0 10)

	test center.x3d		[15] test_center.x3d avatar position of user

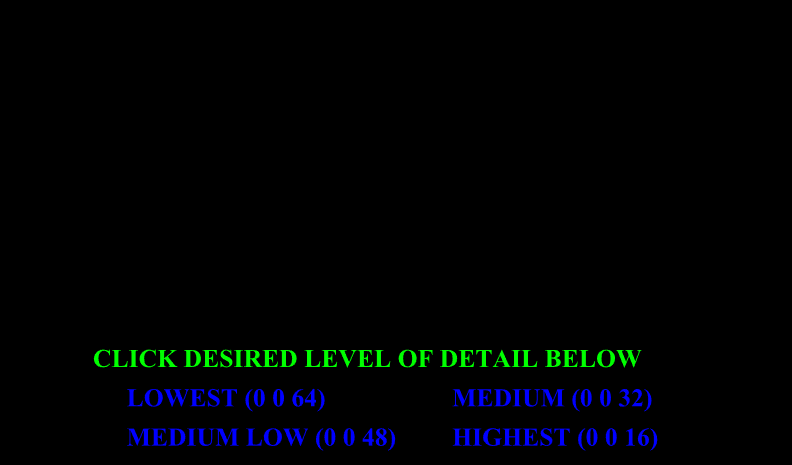

	test center.x3d		[16] test_center.x3d (default X3D view from 0 0 10)
