X3D Model Documentation: TestBoxEspdu.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
  3  <X3D profile='Immersive' version='3.2'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.2.xsd'>
  4       <head>
  5            <component level='1' name='DIS'/>
  6            <meta name='title' content='TestBoxEspdu.x3d'/>
  7            <meta name='creator' content='Don Brutzman, Don McGregor'/>
  8            <meta name='created' content='1 January 2007'/>
  9            <meta name='modified' content='20 October 2019'/>
 10            <meta name='description' content='A simple EspduTransform test to move a Box.'/>
 11            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Basic/DistributedInteractiveSimulation/TestBoxEspdu.x3d'/>
 12            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 13            <meta name='license' content='../../license.html'/>
 14       </head>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
 15       <Scene>
 16            <WorldInfo title='TestBoxEspdu.x3d'/>

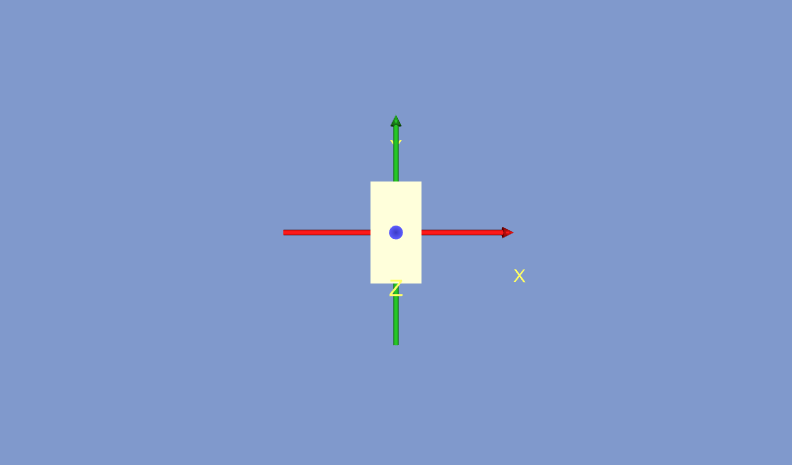

 17            <Viewpoint description='EspduTransform moves Box' position='0 0 25'/>
 18            <Background skyColor='0.5 0.6 0.8'/>
 19            <EspduTransform address='239.1.2.3' entityID='2' marking='TestBox' networkMode='networkReader' port='62040' containerField='children'>
 20                 <Shape>
 21                      <Box size='2 4 6'/>
 22                      <Appearance>
 23                           <Material diffuseColor='0.748014 0.62085 0' shininess='0.93' specularColor='0.860606 0.860606 0.860599'/>
 24                      </Appearance>
 25                 </Shape>
 26            </EspduTransform>
 27            <Transform scale='5 5 5'>
 28                 <Inline   url=' "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" '/>
 29            </Transform>
 30       </Scene>
 31  </X3D>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, Background, Box, component, EspduTransform, head, Inline, Material, meta, Scene, Shape, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types
-->
<!-- Online at
https://www.web3d.org/x3d/content/examples/Basic/DistributedInteractiveSimulation/TestBoxEspduIndex.html -->
