X3D Model Documentation: Figure06_08Asterisk3dWithAxes.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='Figure06_08Asterisk3dWithAxes.x3d'/>
  6            <meta name='creator' content='Figure 6.8, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch06/06fig08.htm'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='8 October 2000'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name='description' content='A 3D asterisk created with cylinders built within one vertical and two rotated coordinate systems, with coordinate axes superimposed to show X3D/VRML directions'/>
 12            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter06RotatingShapes/Figure06_08Asterisk3dWithAxes.x3d'/>
 13            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 14            <meta name='license' content='../../license.html'/>
 15       </head>
<!--
<!-- -->

<!-- to top Index for DEF nodes: Arm1, CoordinateAxes, GREEN_APPEARANCE

Index for Viewpoint node: Viewpoint_1
-->
 16       <Scene>
 17            <WorldInfo title='Figure06_08Asterisk3dWithAxes.x3d'/>

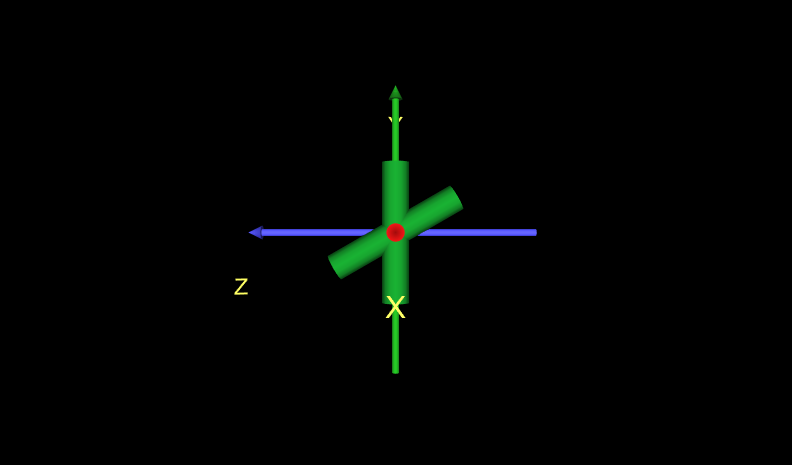

 18            <Viewpoint description='View shape' orientation='0 1 0 1.57' position='4 0 0'/>
 19            <Group>
 20
               <!-- Shape Arm1 is a DEF node that has 2 USE nodes: USE_1, USE_2 -->
                <Shape DEF='Arm1'>
 21                      <Cylinder height='1' radius='0.1'/>
 22                      <Appearance DEF='GREEN_APPEARANCE'>
 23                           <Material diffuseColor='0.1 0.7 0.2'/>
 24                      </Appearance>
 25                 </Shape>
 26                 <Transform rotation='1 0 0 1.047'>
 27                      <Shape USE='Arm1'/>
 28                 </Transform>
 29                 <Transform rotation='1 0 0 2.094'>
 30                      <Shape USE='Arm1'/>
 31                 </Transform>
 32            </Group>
 33            <!-- Adding this Inline reference to another scene superimposes X3D/VRML coordinate system axes. -->
 34            <Transform>
 35                 <Inline DEF='CoordinateAxes'   url=' "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.x3d" "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.wrl" '/>
 36            </Transform>
 37       </Scene>
 38  </X3D>
<!--
<!-- -->

<!-- to top Index for DEF nodes: Arm1, CoordinateAxes, GREEN_APPEARANCE

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, Cylinder, Group, head, Inline, Material, meta, Scene, Shape, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types
-->
