<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='title' content='Figure08.3PositionInterpolatorWithAxes.x3d'/>
<meta name='creator' content='Figure 8.3, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
<meta name='reference' content=' http://www.wiley.com/legacy/compbooks/vrml2sbk/ch08/08fig03.htm '/>
<meta name='transcriber' content='Don Brutzman'/>
<meta name='created' content='8 August 2000'/>
<meta name='modified' content='9 March 2014'/>
<meta name='description' content='Simple PositionInterpolator example. An animation that moves a coordinate system and the cube built within it along a bouncing path, with coordinate axes superimposed to show X3D/VRML directions'/>

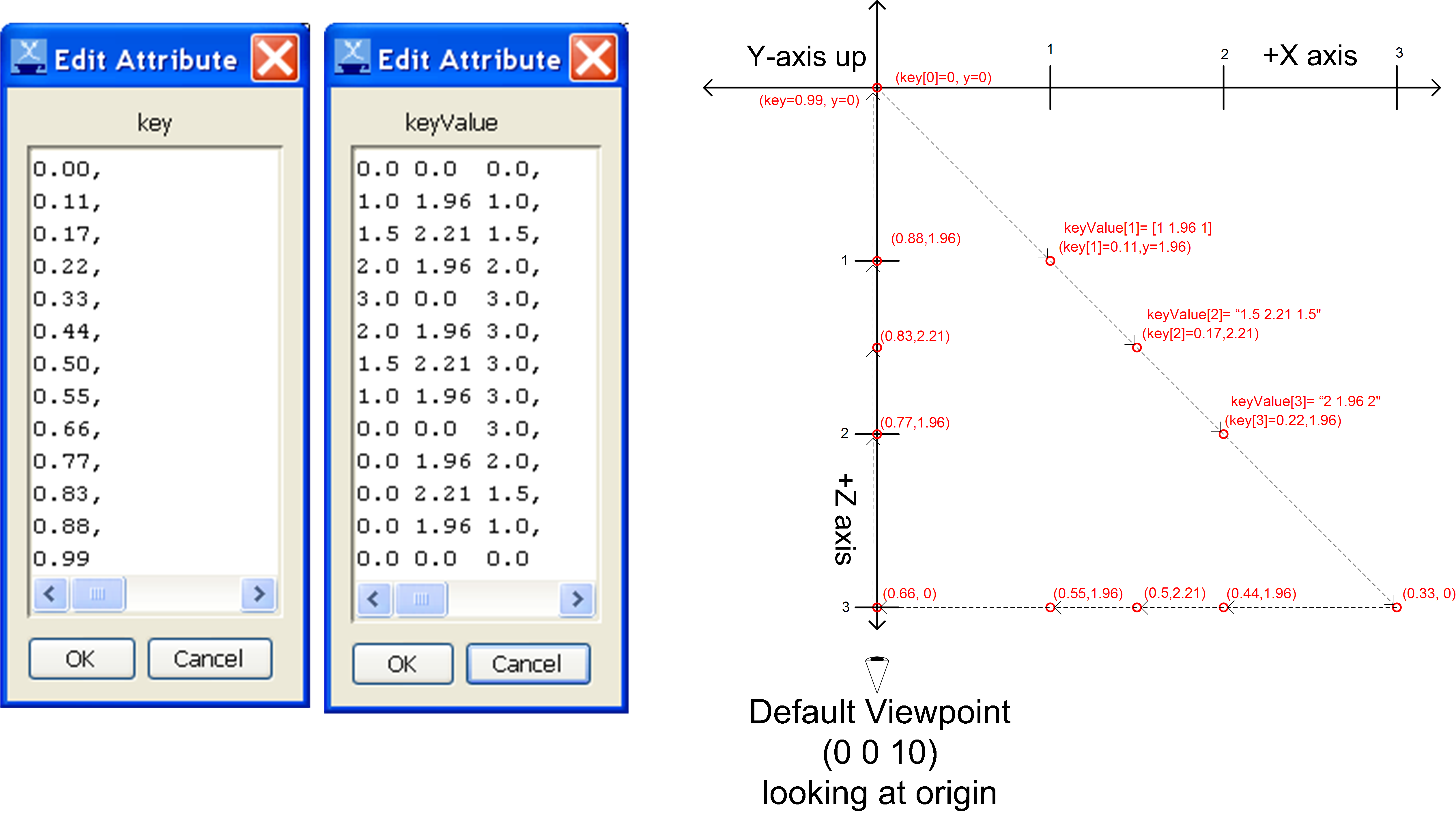

<meta name='reference' content='PositionInterpolatorPathMapDiagram.png'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter08-AnimatingPositionOrientationScale/Figure08.3PositionInterpolatorWithAxes.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<!--
Index for DEF nodes : BOUNCINGBOXTRANSFORM, CLOCK, CoordinateAxes, CUBEPATH
-->
<Scene>
<NavigationInfo/>
<!-- Animation clock -->
<!-- CLOCK ROUTE:  [from fraction_changed to CUBEPATH.set_fraction ] -->
<TimeSensor DEF='CLOCK' cycleInterval='4' loop='true'/>
<!-- Key locations in the animation path are captured in the PositionInterpolator. -->
<!-- Intermediate position values are interpolated between key locations. -->
<!-- CUBEPATH ROUTEs:  [from CLOCK.fraction_changed to set_fraction ] [from value_changed to BOUNCINGBOXTRANSFORM.set_translation ] -->
<PositionInterpolator DEF='CUBEPATH' key='0.00 0.11 0.17 0.22 0.33 0.44 0.50 0.55 0.66 0.77 0.83 0.88 0.99' keyValue='0.0 0.0 0.0 1.0 1.96 1.0 1.5 2.21 1.5 2.0 1.96 2.0 3.0 0.0 3.0 2.0 1.96 3.0 1.5 2.21 3.0 1.0 1.96 3.0 0.0 0.0 3.0 0.0 1.96 2.0 0.0 2.21 1.5 0.0 1.96 1.0 0.0 0.0 0.0'/>
<ROUTE fromNode='CLOCK' fromField='fraction_changed' toNode='CUBEPATH' toField='set_fraction'/>
<!-- Moving box is rotated slightly to better show its shape. -->
<!-- BOUNCINGBOXTRANSFORM ROUTE:  [from CUBEPATH.value_changed to set_translation ] -->
<Transform DEF='BOUNCINGBOXTRANSFORM' rotation='0 1 0 .78'>
<Shape>
<Appearance>
<Material diffuseColor='.8 .8 .2'/>
</Appearance>
<Box size='1 1.5 1'/>
</Shape>
</Transform>
<ROUTE fromNode='CUBEPATH' fromField='value_changed' toNode='BOUNCINGBOXTRANSFORM' toField='set_translation'/>
<!-- Adding this Inline reference to another scene superimposes X3D/VRML coordinate system axes. -->
<Transform scale='4 4 4'>
<Inline DEF='CoordinateAxes'
  url=' "../../X3dForWebAuthors/Chapter03-Grouping/CoordinateAxes.x3d" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter03-Grouping/CoordinateAxes.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.x3d" "../../X3dForWebAuthors/Chapter03-Grouping/CoordinateAxes.wrl" "http://X3dGraphics.com/examples/X3dForWebAuthors/Chapter03-Grouping/CoordinateAxes.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.wrl" '/>
</Transform>
</Scene>
</X3D>
<!--
Index for DEF nodes : BOUNCINGBOXTRANSFORM, CLOCK, CoordinateAxes, CUBEPATH
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/> -->

<!-- Additional help information about X3D scenes: X3D Resources, X3D Scene Authoring Hints and X3D Tooltips -->
