X3D Model Documentation: Figure14_6ElevationGridMedallion.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='Figure14_6ElevationGridMedallion.x3d'/>
  6            <meta name='creator' content='Figure 14.6, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch14/14fig06.htm'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='19 August 2000'/>
 10            <meta name='modified' content='20 October 2019'/>

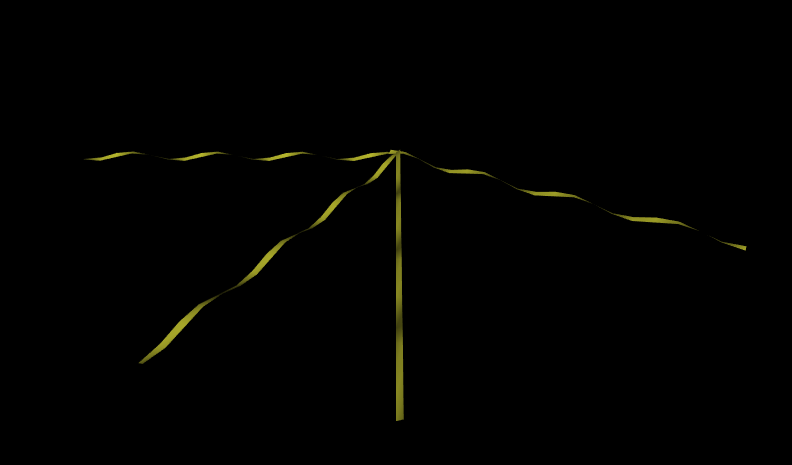

 11            <meta name='description' content='A medallion built from 12 ElevationGrid ribbons.'/>
 12            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter14ElevationGrid/Figure14_6ElevationGridMedallion.x3d'/>
 13            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 14            <meta name='license' content='../../license.html'/>
 15       </head>
<!--
<!-- -->

<!-- to top Index for DEF nodes: OneRibbon, ThreeRibbon

Index for Viewpoint node: Viewpoint_1
-->
 16       <Scene>
 17            <WorldInfo title='Figure14_6ElevationGridMedallion.x3d'/>
 18            <Viewpoint description='Medallion' orientation='1 0 0 -0.6' position='0 60 120'/>
 19            <Group>
 20
               <!-- Group ThreeRibbon is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 -->
                <Group DEF='ThreeRibbon'>
 21
                    <!-- Transform OneRibbon is a DEF node that has 2 USE nodes: USE_1, USE_2 -->
                     <Transform DEF='OneRibbon' translation='0 0 -2'>
 22                           <Inline   url=' "Figure14_3ElevationGridRibbon.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter14ElevationGrid/Figure14_3ElevationGridRibbon.x3d" "Figure14_3ElevationGridRibbon.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter14ElevationGrid/Figure14_3ElevationGridRibbon.wrl" '/>
 23                      </Transform>
 24                      <Transform rotation='0 1 0 0.52'>
 25                           <Transform USE='OneRibbon'/>
 26                      </Transform>
 27                      <Transform rotation='0 1 0 1.05'>
 28                           <Transform USE='OneRibbon'/>
 29                      </Transform>
 30                 </Group>
 31                 <Transform rotation='0 1 0 1.57'>
 32                      <Group USE='ThreeRibbon'/>
 33                 </Transform>
 34                 <Transform rotation='0 1 0 3.14'>
 35                      <Group USE='ThreeRibbon'/>
 36                 </Transform>
 37                 <Transform rotation='0 1 0 4.71'>
 38                      <Group USE='ThreeRibbon'/>
 39                 </Transform>
 40            </Group>
 41       </Scene>
 42  </X3D>
<!--
<!-- -->
