X3D Model Documentation: Figure15_07ExtrudedCylinder.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='Figure15_07ExtrudedCylinder.x3d'/>
  6            <meta name='creator' content='Figure 15.7, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch15/15fig07.htm'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='20 August 2000'/>
 10            <meta name='modified' content='20 October 2019'/>

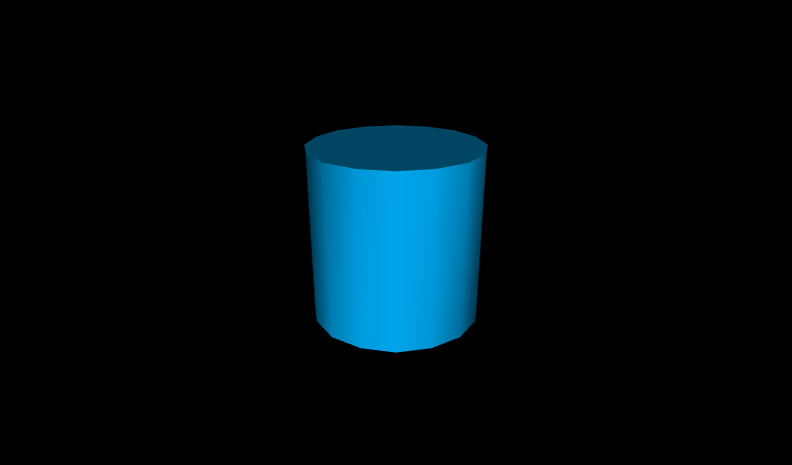

 11            <meta name='description' content='An extruded cylinder built using a circular cross section swept along a straight spine.'/>
 12            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter15Extrusion/Figure15_07ExtrudedCylinder.x3d'/>
 13            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 14            <meta name='license' content='../../license.html'/>
 15       </head>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
 16       <Scene>
 17            <WorldInfo title='Figure15_07ExtrudedCylinder.x3d'/>
 18            <Viewpoint description='Extruded cylinder' orientation='1 0 0 -0.4' position='0 2.5 6'/>
 19            <Shape>
 20                 <Appearance>
 21                      <Material diffuseColor='0 0.7 1'/>
 22                 </Appearance>
 23                 <Extrusion creaseAngle='0.785' crossSection='1.00 0.00 0.92 -0.38 0.71 -0.71 0.38 -0.92 0.00 -1.00 -0.38 -0.92 -0.71 -0.71 -0.92 -0.38 -1.00 -0.00 -0.92 0.38 -0.71 0.71 -0.38 0.92 0.00 1.00 0.38 0.92 0.71 0.71 0.92 0.38 1.00 0.00' spine='0 -1 0 0 1 0'/>
 24            </Shape>
 25       </Scene>
 26  </X3D>
<!--
