X3D Model Documentation: Figure17_07bTexturedLightningBolt.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Interchange' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='Figure17_07bTexturedLightningBolt.x3d'/>
  6            <meta name='creator' content='Figure 17.07b, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch17/17fig07b.htm'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='August 28, 2000'/>
 10            <meta name='modified' content='20 October 2019'/>

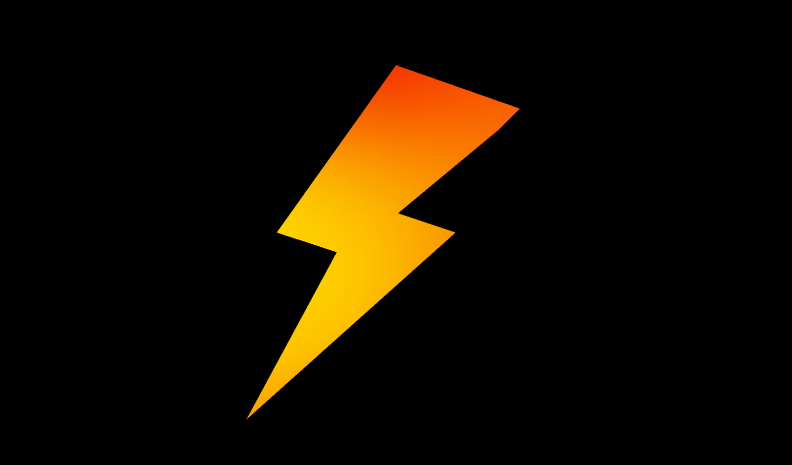

 11            <meta name='description' content='A flame image textured onto a 3D lightning bolt using concave faces. Compare Figures 13.13 and 17.7b.'/>
 12            <meta name='reference' content='../Chapter13PointsLinesFaces/Figure13_13IndexedFaceSetLightningBolt.x3d'/>
 13            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter17Textures/Figure17_07bTexturedLightningBolt.x3d'/>
 14            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 15            <meta name='license' content='../../license.html'/>
 16       </head>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
 17       <Scene>
 18            <WorldInfo title='Figure17_07bTexturedLightningBolt.x3d'/>
 19            <Viewpoint description='Textured lightning bolt' position='4 5 15'/>
 20            <Group>
 21                 <Shape>
 22                      <Appearance>
 23                           <ImageTexture   url=' "bolt2.jpg " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter17Textures/bolt2.jpg " '/>
 24                      </Appearance>
 25                      <IndexedFaceSet convex='false' coordIndex='0 1 2 3 4 5 6 -1 0 12 11 10 9 8 7 -1 0 7 1 -1 1 7 8 2 -1 2 8 9 3 -1 3 9 10 4 -1 4 10 11 5 -1 5 11 12 6 -1 6 12 0'>
 26                           <Coordinate point='0.0 0.0 0.0 5.5 5.0 0.88 4.0 5.5 0.968 7.0 8.0 1.408 4.0 9.0 1.584 1.0 5.0 0.88 2.5 4.5 0.792 5.5 5.0 -0.88 4.0 5.5 -0.968 7.0 8.0 -1.408 4.0 9.0 -1.584 1.0 5.0 -0.88 2.5 4.5 -0.792'/>
 27                      </IndexedFaceSet>
 28                 </Shape>
 29            </Group>
 30       </Scene>
 31  </X3D>
<!--
