X3D Model Documentation: Figure17_10cTextureTransparencyTree.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Interchange' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='Figure17_10cTextureTransparencyTree.x3d'/>
  6            <meta name='creator' content='Figure 17.10c, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch17/17fig10c.htm'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='28 August 2000'/>
 10            <meta name='modified' content='20 October 2019'/>

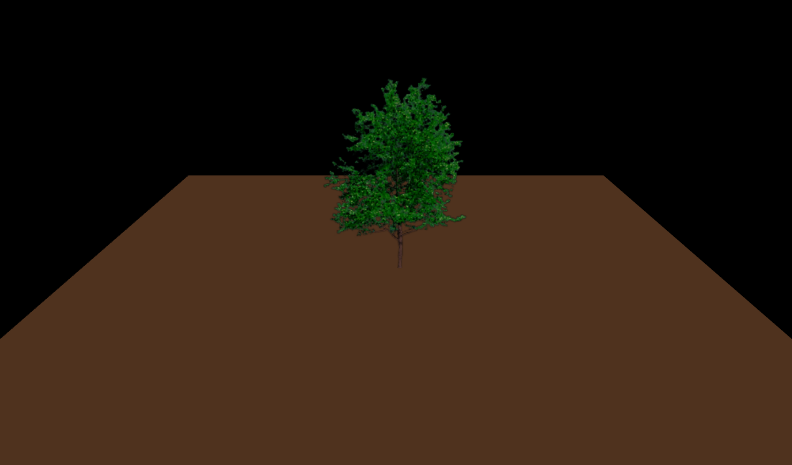

 11            <meta name='description' content='A tree image texture mapped, with pixel transparencies, on a rectangular face to create a tree.'/>
 12            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter17Textures/Figure17_10cTextureTransparencyTree.x3d'/>
 13            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 14            <meta name='license' content='../../license.html'/>
 15       </head>
<!--
<!-- -->

<!-- to top Index for DEF nodes: GroundPlane, Tree

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
 16       <Scene>
 17            <WorldInfo title='Figure17_10cTextureTransparencyTree.x3d'/>
 18            <Viewpoint description='Tree view' orientation='1 0 0 -0.4' position='0 4 8'/>
 19            <Viewpoint description='Side view (no billboarding)' orientation='-0.2915 0.9332 0.2101 1.3153' position='6 4 2'/>
 20            <Group>
 21                 <Shape DEF='GroundPlane'>
 22                      <Appearance>
 23                           <Material diffuseColor='0.8 0.5 0.3'/>
 24                      </Appearance>
 25                      <IndexedFaceSet solid='false' coordIndex='0 1 2 3'>
 26                           <Coordinate point='-5 0 5 5 0 5 5 0 -5 -5 0 -5'/>
 27                      </IndexedFaceSet>
 28                 </Shape>
 29                 <Shape DEF='Tree'>
 30                      <Appearance>
 31                           <ImageTexture   url=' "tree1.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter17Textures/tree1.png " '/>
 32                      </Appearance>
 33                      <IndexedFaceSet solid='false' coordIndex='0 1 2 3'>
 34                           <Coordinate point='-1.51 0 0 1.51 0 0 1.51 3 0 -1.51 3 0'/>
 35                      </IndexedFaceSet>
