X3D Model Documentation: Figure21_4bSomewhatShinyGreyVase.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='Figure21_4bSomewhatShinyGreyVase.x3d'/>
  6            <meta name='creator' content='Figure 21.4b, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch21/21fig04b.htm'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='22 September 2000'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name='description' content='A somewhat shiny grey vase. Compare Figures 21.4a, 4b, 4c and 4d.'/>
 12            <meta name='reference' content='Figure21_4aDullGreyVase.x3d'/>
 13            <meta name='reference' content='Figure21_4cShinyGreyVase.x3d'/>
 14            <meta name='reference' content='Figure21_4dVeryShinyGreyVase.x3d'/>
 15            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter21ShinyMaterials/Figure21_4bSomewhatShinyGreyVase.x3d'/>
 16            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 17            <meta name='license' content='../../license.html'/>
 18       </head>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
 19       <Scene>
 20            <WorldInfo title='Figure21_4bSomewhatShinyGreyVase.x3d'/>

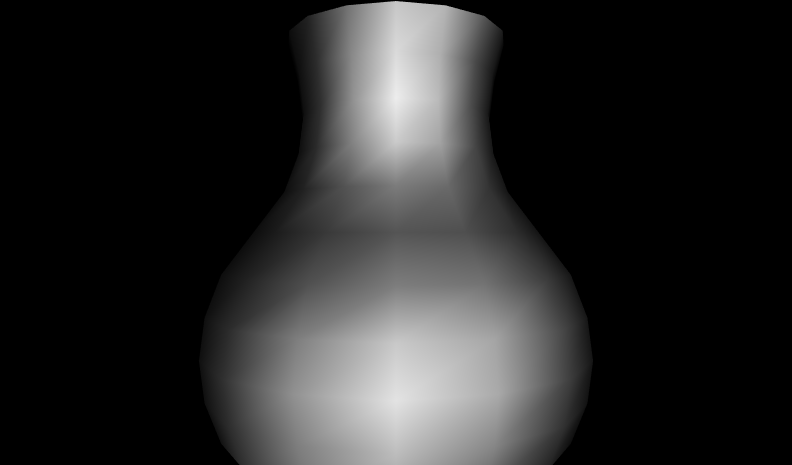

 21            <Viewpoint description='Somewhat shiny grey vase' orientation='1 0 0 0' position='0 2 6'/>
 22            <Group>
 23                 <PointLight intensity='0.2' location='3 3 3'/>
 24                 <Shape>
 25                      <Extrusion creaseAngle='1.57' crossSection='1 0 0.92 -0.38 0.71 -0.71 0.38 -0.92 0 -1 -0.38 -0.92 -0.71 -0.71 -0.92 -0.38 -1 -0 -0.92 0.38 -0.71 0.71 -0.38 0.92 0 1 0.38 0.92 0.71 0.71 0.92 0.38 1 0' endCap='false' scale='1.8 1.8 1.95 1.95 2.0 2.0 1.95 1.95 1.8 1.8 1.5 1.5 1.2 1.2 1.05 1.05 1.0 1.0 1.05 1.05 1.15 1.15' solid='false' spine='0 0.0 0 0 0.4 0 0 0.8 0 0 1.2 0 0 1.6 0 0 2.0 0 0 2.4 0 0 2.8 0 0 3.2 0 0 3.6 0 0 4.0 0'/>
 26                      <Appearance>
 27                           <Material ambientIntensity='0.4' diffuseColor='0.15 0.15 0.15' shininess='0.05' specularColor='0.7 0.7 0.7'/>
 28                      </Appearance>
 29                 </Shape>
 30            </Group>
 31       </Scene>
 32  </X3D>
<!--
