<?xml version="1.0" encoding="UTF-8"?>
|
2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
|
3 | <X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'> |
4 | <head> |
5 | <meta name='title' content='Fence.x3d'/> |
6 | <meta name='description' content='Chain-link fence illustrates the use of rotation and scaling within texture transforms.'/> |
7 | <meta name='creator' content='David R. Nadeau'/> |
8 | <meta name='translator' content='Don Brutzman'/> |
9 | <meta name='created' content='1 July 1998'/> |
10 | <meta name='translated' content='2 February 2014'/> |
11 | <meta name='modified' content='20 October 2019'/> |
12 | <meta name='reference' content='originals/fence.wrl'/> |
13 | <meta name='reference' content='http://www.siggraph.org/s98'/> |
14 | <meta name='reference' content='http://www.siggraph.org/s98/conference/courses/18.html'/> |
15 | <meta name='reference' content='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0297.htm'/> |
16 | <meta name='reference' content='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm'/> |
17 | <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dResources.html'/> |
18 | <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Fence.x3d'/> |
19 | <meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/> |
20 | <meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/> |
21 | <meta name='license' content='../license.html'/> |
22 | </head> |
23 | <Scene> |
24 | <WorldInfo title='Fence.x3d'/> |

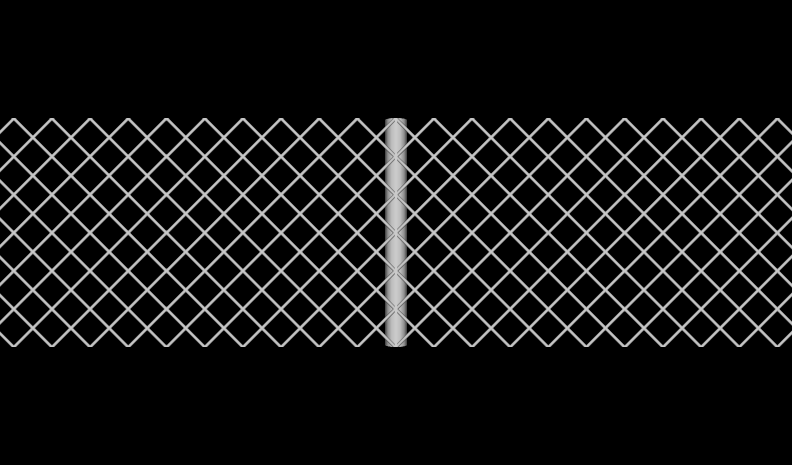

25 | <Viewpoint description='Entry view' position='0.0 0.0 5.0'/> |
26 | <NavigationInfo/> |
27 | <Shape> |
28 | <Appearance> |
29 | <TextureTransform center='0.5 0.5' rotation='0.7853982' scale='8.5 8.5'/> |
30 | <Material/> |
31 |
<ImageTexture
url=' "grill.png![]() ![]() |
32 | </Appearance> |
33 | <IndexedFaceSet solid='false' coordIndex='0 1 2 3 -1 4 5 6 7 -1 8 9 10 11 -1 12 13 14 15' texCoordIndex='0 1 2 3 -1 0 1 2 3 -1 0 1 2 3 -1 0 1 2 3'> |
34 | <TextureCoordinate point='0.0 0.0 1.0 0.0 1.0 1.0 0.0 1.0'/> |
35 | <Coordinate point='-4.0 -1.0 0.1 -2.0 -1.0 0.1 -2.0 1.0 0.1 -4.0 1.0 0.1 -2.0 -1.0 0.1 0.0 -1.0 0.1 0.0 1.0 0.1 -2.0 1.0 0.1 0.0 -1.0 0.1 2.0 -1.0 0.1 2.0 1.0 0.1 0.0 1.0 0.1 2.0 -1.0 0.1 4.0 -1.0 0.1 4.0 1.0 0.1 2.0 1.0 0.1'/> |
36 | </IndexedFaceSet> |
37 | </Shape> |
38 | |
39 | <Appearance> |
40 | <Material/> |
41 | </Appearance> |
42 | <Cylinder radius='0.1'/> |
43 | </Shape> |
44 | <Transform translation='-4.0 0.0 0.0'> |
45 | <Shape USE='Post'/> |
46 | </Transform> |
47 | <Transform translation='4.0 0.0 0.0'> |
48 | <Shape USE='Post'/> |
49 | </Transform> |
50 | </Scene> |
51 | </X3D> |
<!--
