X3D Model Documentation: LinePlot.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Interchange' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='titlecontent='LinePlot.x3d'/>

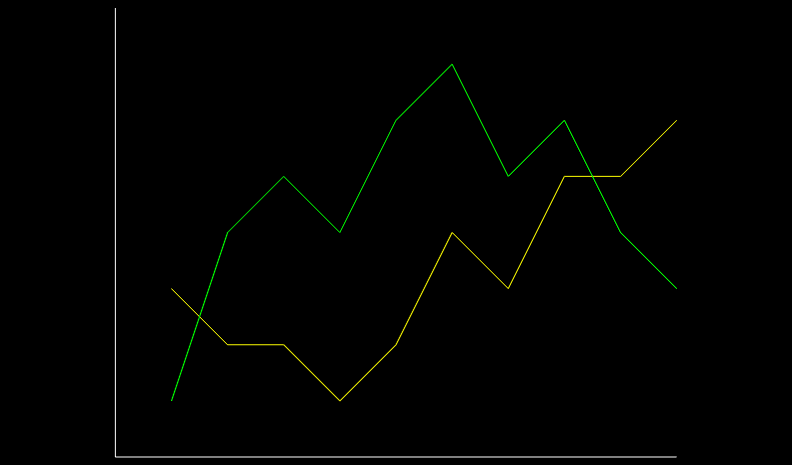

  6            <meta name='descriptioncontent='Building shapes out of points, lines, and faces: IndexedLineSet example.'/>
  7            <meta name='creatorcontent='David R. Nadeau, John L. Moreland, Michael M. Heck'/>
  8            <meta name='translatorcontent='Don Brutzman'/>
  9            <meta name='createdcontent='1 July 1998'/>
 10            <meta name='translatedcontent='2 February 2014'/>
 11            <meta name='modifiedcontent='20 October 2019'/>
 12            <meta name='referencecontent='originals/lnplot.wrl'/>
 13            <meta name='referencecontent='http://www.siggraph.org/s98'/>
 14            <meta name='referencecontent='http://www.siggraph.org/s98/conference/courses/18.html'/>
 15            <meta name='referencecontent='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0186.htm'/>
 16            <meta name='referencecontent='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm'/>
 17            <meta name='referencecontent='https://www.web3d.org/x3d/content/examples/X3dResources.html'/>
 18            <meta name='identifiercontent='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/LinePlot.x3d'/>
 19            <meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 20            <meta name='generatorcontent='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
 21            <meta name='licensecontent='../license.html'/>
 22       </head>
<!--

<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
 23       <Scene>
 24            <WorldInfo title='LinePlot.x3d'/>
 25            <Viewpoint description='Entry view'/>
 26            <NavigationInfo/>
 27            <Transform translation='-5.0 -4.0 0.0'>
 28                 <Shape>
 29                      <Appearance>
 30                           <Material diffuseColor='1.0 1.0 1.0emissiveColor='1.0 1.0 1.0'/>
 31                      </Appearance>
 32                      <IndexedLineSet coordIndex='0 1 -1 0 2 -1'>
 33                           <Coordinate point='0.0 0.0 0.0 10.0 0.0 0.0 0.0 8.0 0.0'/>
 34                      </IndexedLineSet>
 35                 </Shape>
 36                 <Shape>
 37                      <Appearance>
 38                           <Material diffuseColor='0.0 1.0 0.0emissiveColor='0.0 1.0 0.0'/>
 39                      </Appearance>
 40                      <IndexedLineSet coordIndex='0 1 2 3 4 5 6 7 8 9 -1'>
 41                           <Coordinate point='1.0 1.0 0.0 2.0 4.0 0.0 3.0 5.0 0.0 4.0 4.0 0.0 5.0 6.0 0.0 6.0 7.0 0.0 7.0 5.0 0.0 8.0 6.0 0.0 9.0 4.0 0.0 10.0 3.0 0.0'/>
 42                      </IndexedLineSet>
 43                 </Shape>
 44                 <Shape>
 45                      <Appearance>
 46                           <Material diffuseColor='1.0 1.0 0.0emissiveColor='1.0 1.0 0.0'/>
 47                      </Appearance>
 48                      <IndexedLineSet coordIndex='0 1 2 3 4 5 6 7 8 9 -1'>
 49                           <Coordinate point='1.0 3.0 0.0 2.0 2.0 0.0 3.0 2.0 0.0 4.0 1.0 0.0 5.0 2.0 0.0 6.0 4.0 0.0 7.0 3.0 0.0 8.0 5.0 0.0 9.0 5.0 0.0 10.0 6.0 0.0'/>
 50                      </IndexedLineSet>
 51                 </Shape>
 52            </Transform>
 53       </Scene>
 54  </X3D>
<!--
