X3D Model Documentation: Table.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Interchange' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content='Table.x3d'/>
  6            <meta name='description' content='This table is inlined into the dinette scene to illustrate inline groups.'/>
  7            <meta name='creator' content='David R. Nadeau'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='1 July 1998'/>
 10            <meta name='translated' content='2 February 2014'/>
 11            <meta name='modified' content='20 October 2019'/>
 12            <meta name='reference' content='Dinette.x3d'/>
 13            <meta name='reference' content='originals/table.wrl'/>
 14            <meta name='reference' content='http://www.siggraph.org/s98'/>
 15            <meta name='reference' content='http://www.siggraph.org/s98/conference/courses/18.html'/>
 16            <meta name='reference' content='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0098.htm'/>
 17            <meta name='reference' content='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm'/>
 18            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dResources.html'/>
 19            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Table.x3d'/>
 20            <meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 21            <meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
 22            <meta name='license' content='../license.html'/>
 23       </head>
<!--
<!-- -->

<!-- to top Index for DEF node: Brown

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5
-->
 24       <Scene>
 25            <WorldInfo title='Table.x3d'/>

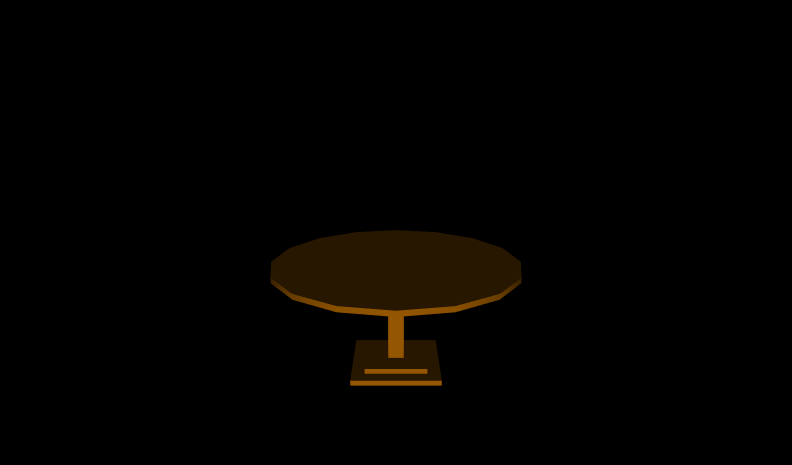

 26            <Viewpoint description='Table front' orientation='1 0 0 -0.260602' position='0 1.6 3'/>

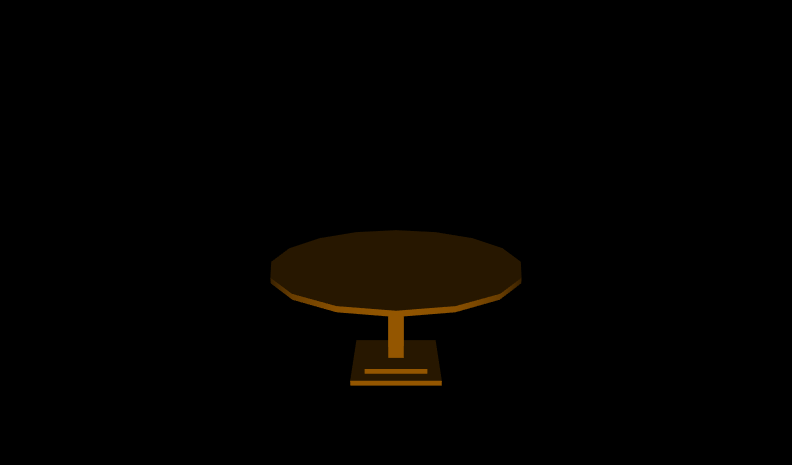

 27            <Viewpoint description='Table right side' orientation='-0.12885 0.98326 0.12885 1.58768' position='3 1.6 0'/>

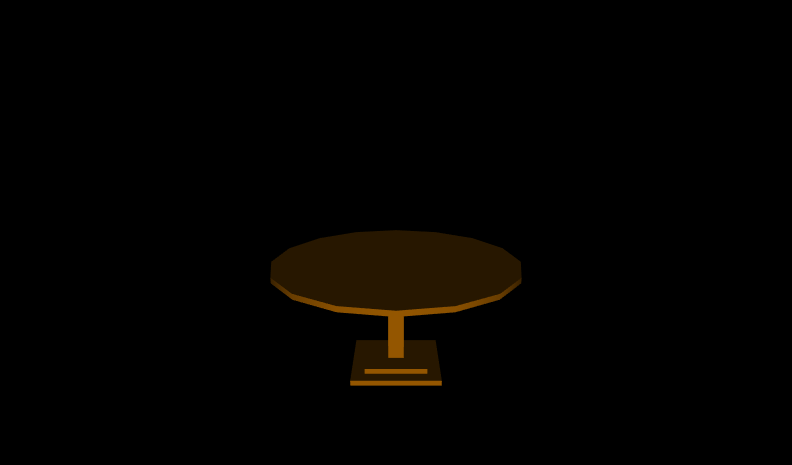

 28            <Viewpoint description='Table back' orientation='0 0.99152 0.12993 -3.141593' position='0 1.6 -3'/>
 29            <Viewpoint description='Table left side' orientation='0.12885 0.98326 0.12885 -1.58768' position='-3 1.6 0'/>
 30            <Viewpoint description='Table from above' orientation='1 0 0 -1.570796' position='0 3 0'/>
 31            <!-- Table top -->
 32            <Transform translation='0.0 0.615 0.0'>
 33                 <Shape>
 34
                    <!-- Appearance Brown is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 -->
                     <Appearance DEF='Brown'>
 35                           <Material diffuseColor='0.6 0.35 0.0'/>
 36                      </Appearance>
 37                      <Cylinder height='0.03' radius='0.7'/>
 38                 </Shape>
 39            </Transform>
 40            <!-- Table leg -->
 41            <Transform translation='0.0 0.3075 0.0'>
 42                 <Shape>
 43                      <Appearance USE='Brown'/>
 44                      <Box size='0.09 0.57 0.09'/>
 45                 </Shape>
 46            </Transform>
 47            <!-- Table leg base -->
 48            <Transform translation='0.0 0.015 0.0'>
 49                 <Shape>
 50                      <Appearance USE='Brown'/>
 51                      <Box size='0.5 0.03 0.5'/>
 52                 </Shape>
 53            </Transform>
 54            <Transform translation='0.0 0.045 0.0'>
 55                 <Shape>
 56                      <Appearance USE='Brown'/>
 57                      <Box size='0.35 0.03 0.35'/>
 58                 </Shape>
 59            </Transform>
 60       </Scene>
 61  </X3D>
<!--
<!-- -->
