X3D Model Documentation: aTorch2.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='titlecontent='aTorch2.x3d'/>
  6            <meta name='descriptioncontent='Torch with animated flames (medium detail): this file creates a torch with animated flames created using the Flames prototype node defined by an EXTERNPROTO.'/>
  7            <meta name='creatorcontent='David R. Nadeau'/>
  8            <meta name='translatorcontent='Don Brutzman'/>
  9            <meta name='createdcontent='1 July 1998'/>
 10            <meta name='translatedcontent='2 February 2014'/>
 11            <meta name='modifiedcontent='20 October 2019'/>
 12            <meta name='referencecontent='aTorch.x3d'/>
 13            <meta name='referencecontent='originals/aTorch2.wrl'/>

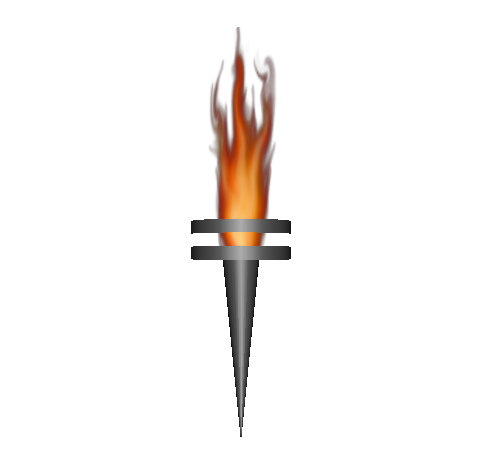

 14            <meta name='Imagecontent='aTorch2BackgroundWhite.png'/>
 15            <meta name='referencecontent='http://www.siggraph.org/s98'/>
 16            <meta name='referencecontent='http://www.siggraph.org/s98/conference/courses/18.html'/>
 17            <meta name='referencecontent='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0500.htm'/>
 18            <meta name='referencecontent='http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm'/>
 19            <meta name='referencecontent='https://www.web3d.org/x3d/content/examples/X3dResources.html'/>
 20            <meta name='identifiercontent='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/aTorch2.x3d'/>
 21            <meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 22            <meta name='generatorcontent='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
 23            <meta name='licensecontent='../license.html'/>
 24       </head>
<!--

<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: Gray, Ring

Index for ExternProtoDeclare definition: Flames
-->
 25       <Scene>
 26            <WorldInfo info='"Copyright (c) 1997, David R. Nadeau"title='Torch with animated flames (medium detail)'/>
 27            <ExternProtoDeclare name='Flames'   url=' "Flames.x3d#Flames" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Flames.x3d#Flames" "Flames.wrl#Flames" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Flames.wrl#Flames" '>
 28                 <field name='startTimetype='SFTimeaccessType='initializeOnly'/>
 29                 <field name='cycleIntervaltype='SFTimeaccessType='initializeOnly'/>
 30            </ExternProtoDeclare>
 31            <Transform scale='0.5 0.5 0.5translation='0.0 0.0 0.2'>
 32                 <Transform rotation='1.0 0.0 0.0 3.14translation='0.0 -0.75 0.0'>
 33                      <Shape>
 34
                         <!-- Appearance Gray is a DEF node that has 1 USE node: USE_1 -->
                         <Appearance DEF='Gray'>
 35                                <Material diffuseColor='0.4 0.4 0.4specularColor='0.7 0.7 0.7'/>
 36                           </Appearance>
 37                           <Cone bottomRadius='0.15height='1.5'/>
 38                      </Shape>
 39                 </Transform>
 40
               <!-- Shape Ring is a DEF node that has 1 USE node: USE_1 -->
               <Shape DEF='Ring'>
 41                      <Appearance USE='Gray'/>
 42                      <Cylinder bottom='falseheight='0.1radius='0.4top='false'/>
 43                 </Shape>
 44                 <Transform translation='0.0 0.2 0.0'>
 45                      <Shape USE='Ring'/>
 46                 </Transform>
 47                 <Billboard>
 48                      <ProtoInstance name='Flames'/>
 49                 </Billboard>
 50            </Transform>
 51       </Scene>
 52  </X3D>
<!--

<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: Gray, Ring

Index for ExternProtoDeclare definition: Flames
-->
X3D Tooltips element index: Appearance, Billboard, Cone, Cylinder, ExternProtoDeclare, field, head, Material, meta, ProtoInstance, Scene, Shape, Transform, WorldInfo, X3D, accessType and type, XML data types, field types

Event Graph ROUTE Table with 0 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.


ProtoInstance
Flames
No ROUTE connection found for output events from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.
Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
