| 3 | <X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content='ParallelepipedExamples.x3d'/> |
| 6 | <meta name='description' content='Example use of external prototype declaration for Parallelepiped, which is a 3D figure formed by six parallelograms.'/> |
| 7 | <meta name='creator' content='Don Brutzman'/> |
| 8 | <meta name='created' content='25 November 2011'/> |
| 9 | <meta name='modified' content='8 December 2024'/> |
| 10 | <meta name='reference' content='ParallelepipedPrototype.x3d'/> |
| 11 |

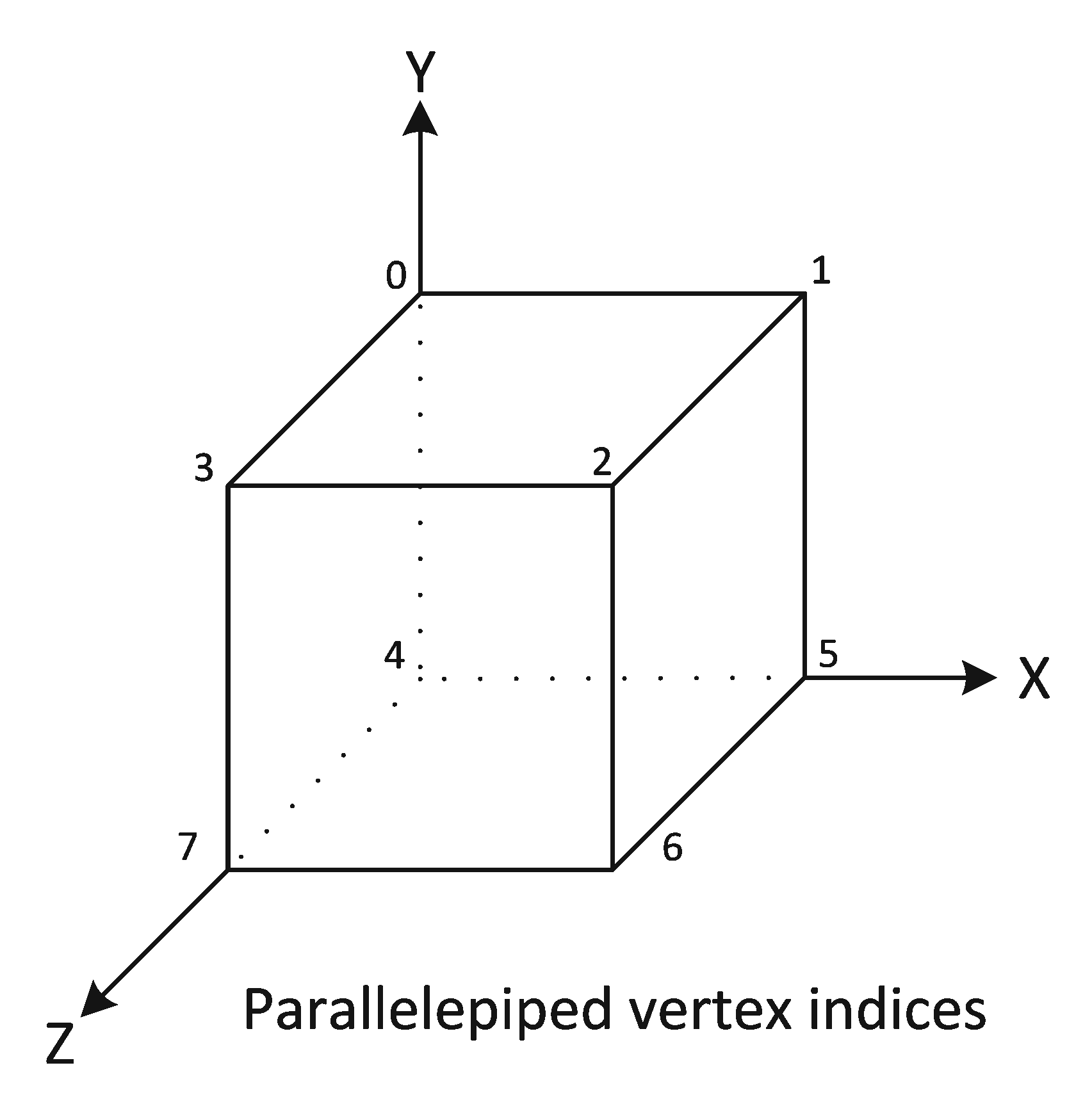

<meta name='Image' content='ParallelepipedVertexIndices.png'/>
|
| 12 | <meta name='drawing' content='GeometricShapes.vsdx'/> |
| 13 | <meta name='reference' content='https://en.wikipedia.org/wiki/Parallelepiped'/> |
| 14 | <meta name='reference' content='http://upload.wikimedia.org/wikipedia/commons/f/f6/Parallelepiped.svg'/> |
| 15 | <meta name='reference' content='http://upload.wikimedia.org/wikipedia/commons/thumb/f/f6/Parallelepiped.svg/500px-Parallelepiped.svg.png'/> |
| 16 | <meta name='subject' content='parallelepiped rhomboid geometry polyhedron'/> |
| 17 | <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/ParallelepipedExamples.x3d'/> |
| 18 | <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dResources.html'/> |
| 19 | <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/> |
| 20 | <meta name='license' content='../license.html'/> |
| 21 | </head> |
Index for DEF nodes:
BlueAppearance,
ParallelepipedBox
| 22 | <Scene> |
| 23 | <WorldInfo title='ParallelepipedExamples.x3d'/> |
| 24 | <ExternProtoDeclare name='Parallelepiped' appinfo='Parallelepiped is a 3D figure formed by six parallelograms; also sometimes referred to as a rhomboid' url=' "ParallelepipedPrototype.x3d#Parallelepiped" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/ParallelepipedPrototype.x3d#Parallelepiped" "ParallelepipedPrototype.wrl#Parallelepiped" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/ParallelepipedPrototype.wrl#Parallelepiped" '> |
| 25 | <field name='point' type='MFVec3f' accessType='inputOutput'/> |
| 26 | <field name='colorPerVertex' type='SFBool' accessType='initializeOnly'/> |
| 27 | <field name='normalPerVertex' type='SFBool' accessType='initializeOnly'/> |
| 28 | <field name='colorIndex' type='MFInt32' accessType='initializeOnly'/> |
| 29 | <field name='normalIndex' type='MFInt32' accessType='initializeOnly'/> |
| 30 | <field name='texCoordIndex' type='MFInt32' accessType='initializeOnly'/> |
| 31 | <field name='colorNode' type='SFNode' accessType='inputOutput'/> |
| 32 | <field name='normalNode' type='SFNode' accessType='inputOutput'/> |
| 33 | <field name='texCoordNode' type='SFNode' accessType='inputOutput'/> |
| 34 | </ExternProtoDeclare> |
| 35 | <!-- ================================================================================ --> |
| 36 | <Background skyColor='0.905882 1 0.858824'/> |

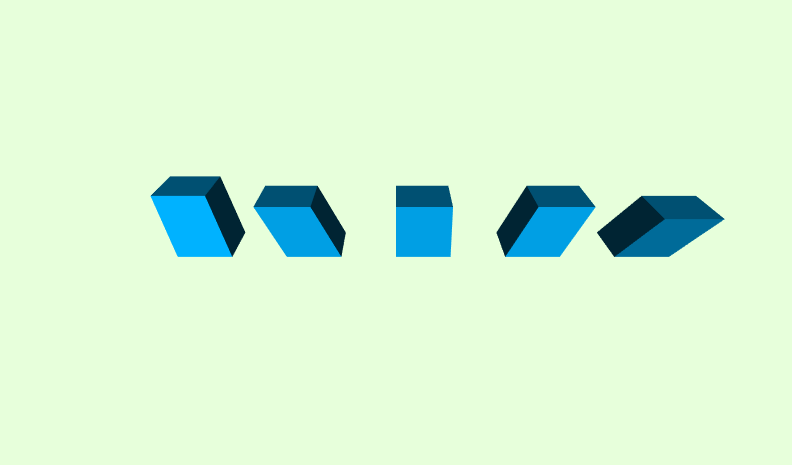

| 37 | <Viewpoint description='Parellelopiped examples' orientation='1 0 0 -0.46365' position='0 5 10'/> |
| 38 | <Transform translation='-4 0 0'> |
| 39 | <Shape> |
| 40 | <ProtoInstance name='Parallelepiped' containerField='geometry'> |
| 41 | <fieldValue name='point' value='-0.5 1 -0.5 0.5 1 -0.5 0.5 1 0.5 -0.5 1 0.5 0 0 0 1 0 0 1 0 1 0 0 1'/> |
| 42 | </ProtoInstance> |
| 43 |
<!-- Appearance
BlueAppearance is a DEF node that has 4 USE nodes: USE_1, USE_2, USE_3, USE_4 -->
<Appearance DEF='BlueAppearance'> |
| 44 | <Material diffuseColor='0 0.698039 1'/> |
| 45 | </Appearance> |
| 46 | </Shape> |
| 47 | </Transform> |
| 48 | <Transform translation='-2 0 0'> |
| 49 | <Shape> |
| 50 | <ProtoInstance name='Parallelepiped' containerField='geometry'> |
| 51 | <fieldValue name='point' value='-0.5 1 0 0.5 1 0 0.5 1 1 -0.5 1 1 0 0 0 1 0 0 1 0 1 0 0 1'/> |
| 52 | </ProtoInstance> |
| 53 | <Appearance USE='BlueAppearance'/> |
| 54 | </Shape> |
| 55 | </Transform> |
| 56 | <Transform> |
| 57 | <Shape> |
| 58 | <ProtoInstance name='Parallelepiped' DEF='ParallelepipedBox' containerField='geometry'> |
| 59 | <fieldValue name='point' value='0 1 0 1 1 0 1 1 1 0 1 1 0 0 0 1 0 0 1 0 1 0 0 1'/> |
| 60 | </ProtoInstance> |
| 61 | <Appearance USE='BlueAppearance'/> |
| 62 | </Shape> |
| 63 | </Transform> |
| 64 | <Transform translation='2 0 0'> |
| 65 | <Shape> |
| 66 | <ProtoInstance name='Parallelepiped' containerField='geometry'> |
| 67 | <fieldValue name='point' value='0.5 1 0 1.5 1 0 1.5 1 1 0.5 1 1 0 0 0 1 0 0 1 0 1 0 0 1'/> |
| 68 | </ProtoInstance> |
| 69 | <Appearance USE='BlueAppearance'/> |
| 70 | </Shape> |
| 71 | </Transform> |
| 72 | <Transform translation='4 0 0'> |
| 73 | <Shape> |
| 74 | <ProtoInstance name='Parallelepiped' containerField='geometry'> |
| 75 | <fieldValue name='point' value='0.5 1 0.5 1.5 1 0.5 1.5 1 1.5 0.5 1 1.5 0 0 0 1 0 0 1 0 1 0 0 1'/> |
| 76 | </ProtoInstance> |
| 77 | <Appearance USE='BlueAppearance'/> |
| 78 | </Shape> |
| 79 | </Transform> |
| 80 | </Scene> |
| 81 | </X3D> |
