<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
|
| 3 | <X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content=' BindingOperations.x3d '/> |
| 6 | <meta name='description' content='Illustrate Viewpoint binding operations (in gory detail!) as described in Chapter 4 concepts. Scene design: a TimeSensor clock drives and IntegerSequencer for each t0/t1/etc. event, and a customized Script node sends bind/unbind events to the correct Viewpoint. Display the browser console to see occurrence of each event.'/> |
| 7 | <meta name='creator' content='Don Brutzman'/> |
| 8 | <meta name='created' content='5 January 2008'/> |
| 9 | <meta name='modified' content='4 August 2024'/> |
| 10 | <meta name='reference' content=' BindingOperations.console.txt '/> |
| 11 |

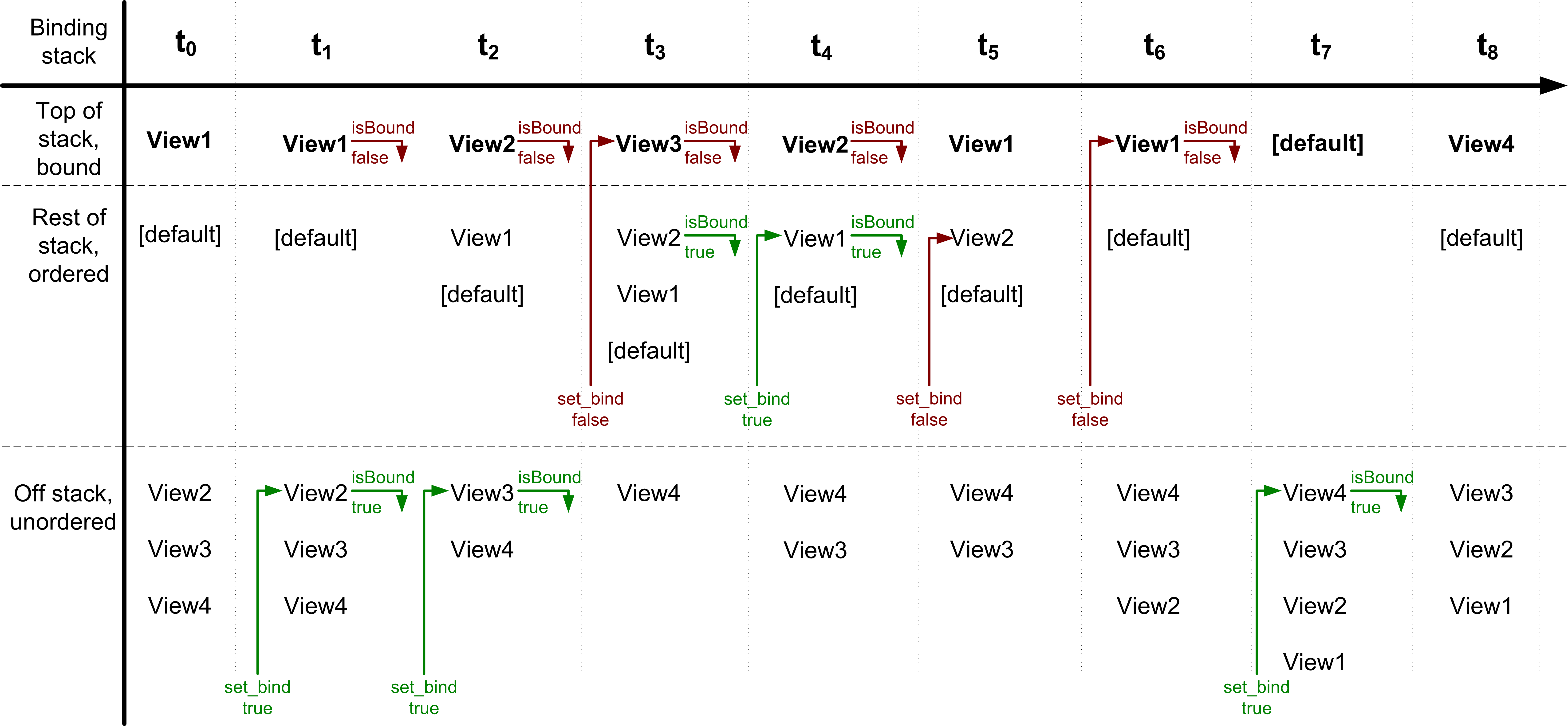

<meta name='reference' content='BindingStackOperations.png' />
|
| 12 | <meta name='reference' content='X3D for Web Authors, Section 2.5.1, Figure 4.1'/> |
| 13 | <meta name='reference' content='https://X3dGraphics.com'/> |
| 14 | <meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/> |
| 15 | <meta name='rights' content='Copyright Don Brutzman and Leonard Daly 2007'/> |
| 16 | <meta name='subject' content='X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com'/> |
| 17 | <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter04ViewingNavigation/BindingOperations.x3d '/> |
| 18 | <meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/> |
| 19 | <meta name='license' content='../license.html'/> |
| 20 | </head> |
DEF nodes index:
BindingSequencerEngine,
CenterJustify,
ClickToAnimateView,
Clock,
Text1,
Text2,
Text3,
Text4,
TextTouchSensor,
TimingSequencer,
View1,
View2,
View3,
View4
| 21 | <Scene> |
| 22 | <WorldInfo title='BindingOperations.x3d'/> |
| 23 |
<!-- ROUTE information for View1 node:
[from BindingSequencerEngine.bindView1 to set_bind
]
[from isBound to BindingSequencerEngine.view1Bound
]
-->

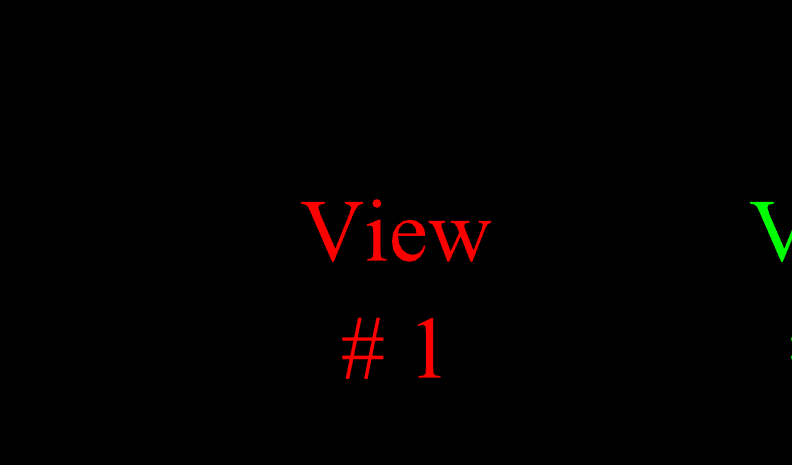

<Viewpoint DEF='View1' centerOfRotation='-6 0 0' description='Viewpoint 1' position='-6 0 5'/> |
| 24 |
<!-- ROUTE information for View2 node:
[from BindingSequencerEngine.bindView2 to set_bind
]
[from isBound to BindingSequencerEngine.view2Bound
]
-->

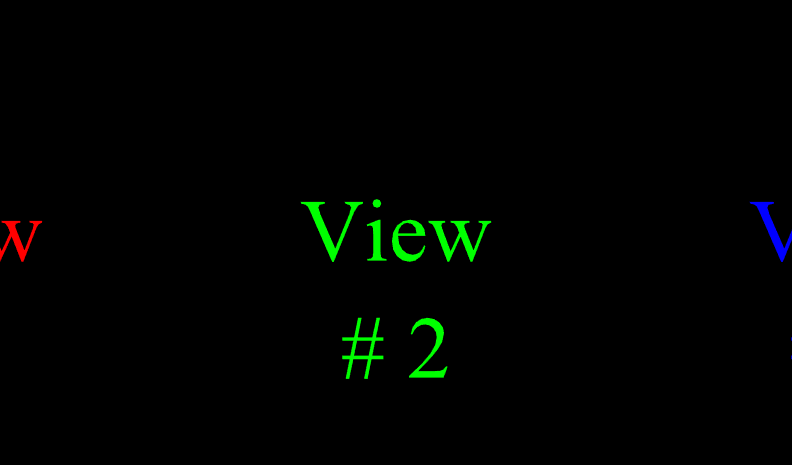

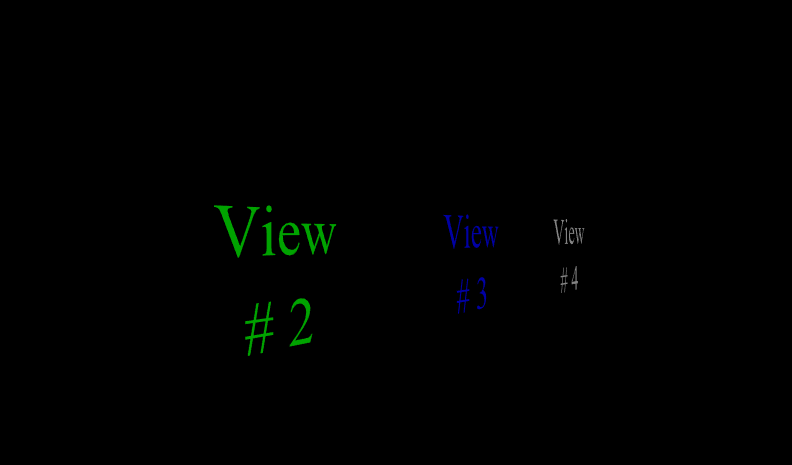

<Viewpoint DEF='View2' centerOfRotation='-2 0 0' description='Viewpoint 2' position='-2 0 5'/> |
| 25 |
<!-- ROUTE information for View3 node:
[from BindingSequencerEngine.bindView3 to set_bind
]
[from isBound to BindingSequencerEngine.view3Bound
]
-->

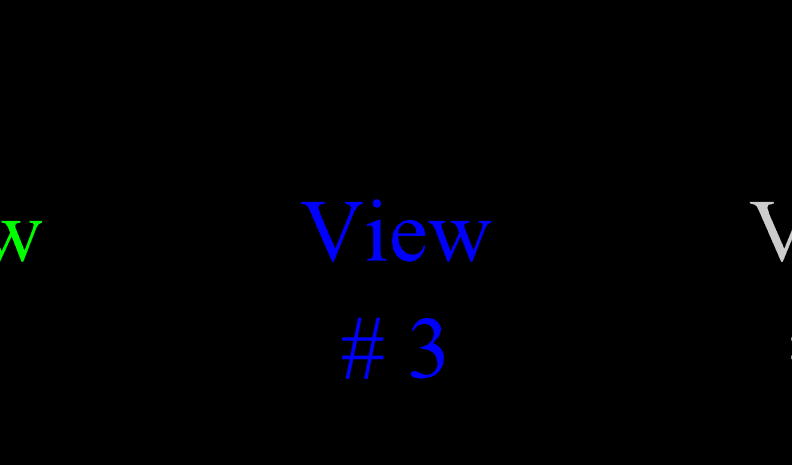

<Viewpoint DEF='View3' centerOfRotation='2 0 0' description='Viewpoint 3' position='2 0 5'/> |
| 26 |
<!-- ROUTE information for View4 node:
[from BindingSequencerEngine.bindView4 to set_bind
]
[from isBound to BindingSequencerEngine.view4Bound
]
-->
<Viewpoint DEF='View4' centerOfRotation='6 0 0' description='Viewpoint 4' position='6 0 5'/> |
| 27 | <!-- Script initialization ought to first bind view5 below. --> |
| 28 | <Group> |
| 29 | <Transform DEF='Text1' translation='-6 0 0'> |
| 30 | <Shape> |
| 31 | <Text string='"View" "# 1"'> |
| 32 |
<!-- FontStyle
CenterJustify is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 --> <FontStyle DEF='CenterJustify' justify='"MIDDLE" "MIDDLE"'/> |
| 33 | </Text> |
| 34 | <Appearance> |
| 35 | <Material diffuseColor='1 0 0'/> |
| 36 | </Appearance> |
| 37 | </Shape> |
| 38 | </Transform> |
| 39 | <Transform DEF='Text2' translation='-2 0 0'> |
| 40 | <Shape> |
| 41 | <Text string='"View" "# 2"'> |
| 42 | <FontStyle USE='CenterJustify'/> |
| 43 | </Text> |
| 44 | <Appearance> |
| 45 | <Material diffuseColor='0 1 0'/> |
| 46 | </Appearance> |
| 47 | </Shape> |
| 48 | </Transform> |
| 49 | <Transform DEF='Text3' translation='2 0 0'> |
| 50 | <Shape> |
| 51 | <Text string='"View" "# 3"'> |
| 52 | <FontStyle USE='CenterJustify'/> |
| 53 | </Text> |
| 54 | <Appearance> |
| 55 | <Material diffuseColor='0 0 1'/> |
| 56 | </Appearance> |
| 57 | </Shape> |
| 58 | </Transform> |
| 59 | <Transform DEF='Text4' translation='6 0 0'> |
| 60 | <Shape> |
| 61 | <Text string='"View" "# 4"'> |
| 62 | <FontStyle USE='CenterJustify'/> |
| 63 | </Text> |
| 64 | <Appearance> |
| 65 | <Material/> |
| 66 | </Appearance> |
| 67 | </Shape> |
| 68 | </Transform> |
| 69 | </Group> |
| 70 | <!-- The following advanced animation sequence uses nodes covered in Chapters 7, 8 and 9. --> |
| 71 | <!-- It does not need to be studied in this chapter. --> |
| 72 | <Transform translation='0 -3 8'> |
| 73 | <!-- notice this next Viewpoint has been transformed with the text, so its position is relative. it is called view5 in the Script. --> |
| 74 |
<!-- ROUTE information for ClickToAnimateView node:
[from BindingSequencerEngine.bindView5 to set_bind
]
-->

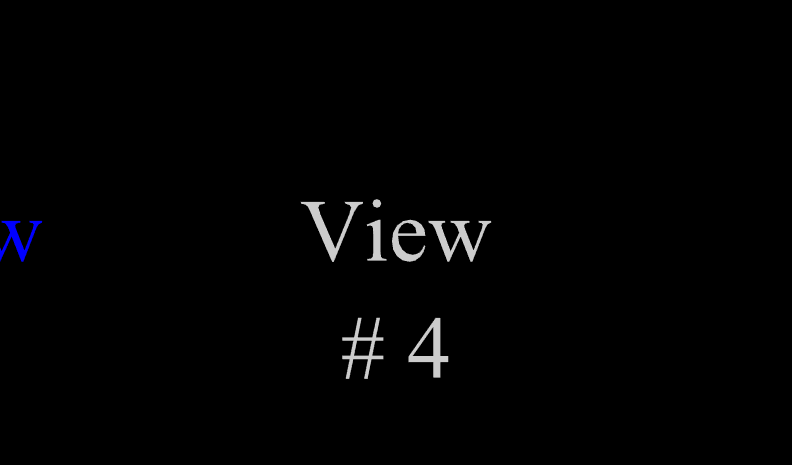

<Viewpoint DEF='ClickToAnimateView' description='Select animation sequence' position='0 0 7'/> |
| 75 | <Shape> |
| 76 | <Text string='"Click here to animate"'> |
| 77 | <FontStyle justify='"MIDDLE" "BEGIN"'/> |
| 78 | </Text> |
| 79 | <Appearance> |
| 80 | <Material diffuseColor='0.8 0.4 0'/> |
| 81 | </Appearance> |
| 82 | </Shape> |
| 83 | <Shape> |
| 84 | <Box size='7 1 0.02'/> |
| 85 | <Appearance> |
| 86 | <Material transparency='1'/> |
| 87 | </Appearance> |
| 88 | </Shape> |
| 89 |
<!-- ROUTE information for TextTouchSensor node:
[from touchTime to Clock.set_startTime
]
-->
<TouchSensor DEF='TextTouchSensor' description='Click to begin animating viewpoint selections'/> |
| 90 |
<!-- ROUTE information for Clock node:
[from TextTouchSensor.touchTime to set_startTime
]
[from fraction_changed to TimingSequencer.set_fraction
]
-->
<TimeSensor DEF='Clock' cycleInterval='10'/> |
| 91 | < ROUTE fromNode='TextTouchSensor' fromField='touchTime' toNode='Clock' toField='set_startTime'/> |
| 92 |
<!-- ROUTE information for TimingSequencer node:
[from Clock.fraction_changed to set_fraction
]
[from value_changed to BindingSequencerEngine.set_timeEvent
]
-->
<IntegerSequencer DEF='TimingSequencer' key='0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 1.0' keyValue='0 1 2 3 4 5 6 7 8 10'/> |
| 93 | < ROUTE fromNode='Clock' fromField='fraction_changed' toNode='TimingSequencer' toField='set_fraction'/> |
| 94 |
<!-- ROUTE information for BindingSequencerEngine node:
[from TimingSequencer.value_changed to set_timeEvent
]
[from View1.isBound to view1Bound
]
[from View2.isBound to view2Bound
]
[from View3.isBound to view3Bound
]
[from View4.isBound to view4Bound
]
[from bindView1 to View1.set_bind
]
[from bindView2 to View2.set_bind
]
[from bindView3 to View3.set_bind
]
[from bindView4 to View4.set_bind
]
[from bindView5 to ClickToAnimateView.set_bind
]
-->
<Script DEF='BindingSequencerEngine'> |
| 95 | <field name='set_timeEvent' type='SFInt32' accessType='inputOnly'/> |
| 96 | <field name='bindView1' type='SFBool' accessType='outputOnly'/> |
| 97 | <field name='bindView2' type='SFBool' accessType='outputOnly'/> |
| 98 | <field name='bindView3' type='SFBool' accessType='outputOnly'/> |
| 99 | <field name='bindView4' type='SFBool' accessType='outputOnly'/> |
| 100 | <field name='bindView5' type='SFBool' accessType='outputOnly'/> |
| 101 | <field name='view1Bound' type='SFBool' accessType='inputOnly'/> |
| 102 | <field name='view2Bound' type='SFBool' accessType='inputOnly'/> |
| 103 | <field name='view3Bound' type='SFBool' accessType='inputOnly'/> |
| 104 | <field name='view4Bound' type='SFBool' accessType='inputOnly'/> |
| 105 | <field name='priorInputvalue' type='SFInt32' value='-1' accessType='initializeOnly'/> |
<![CDATA[
ecmascript:
function initialize ()
{
bindView5 = true;
Browser.println ('Timing script initialized and ready for activation');
}
function set_timeEvent (inputValue)
{
if (inputValue == priorInputvalue)
{
return; // ignore repeated inputs
}
// new value provided
priorInputvalue = inputValue;
// Browser.println ('timeEvent inputValue=' + inputValue);
// mimics user execution of Figure 4.1 steps t_0 through t_8
if (inputValue == 0)
{
Browser.println ('===========');
Browser.println ('time t0');
bindView1 = true;
}
else if (inputValue == 1)
{
Browser.println ('===========');
Browser.println ('time t1');
bindView2 = true;
}
else if (inputValue == 2)
{
Browser.println ('===========');
Browser.println ('time t2');
bindView3 = true;
}
else if (inputValue == 3)
{
Browser.println ('===========');
Browser.println ('time t3');
bindView3 = false;
}
else if (inputValue == 4)
{
Browser.println ('===========');
Browser.println ('time t4');
bindView1 = true;
}
else if (inputValue == 5)
{
Browser.println ('===========');
Browser.println ('time t5');
bindView2 = false;
}
else if (inputValue == 6)
{
Browser.println ('===========');
Browser.println ('time t6');
bindView1 = false;
}
else if (inputValue == 7)
{
Browser.println ('===========');
Browser.println ('time t7');
bindView4 = true;
}
else if (inputValue == 8)
{
Browser.println ();
Browser.println ('===========');
Browser.println ('time t8, no action, all done');
}
}
function view1Bound (inputValue)
{
Browser.println (', view1Bound ' + (inputValue));
if (priorInputvalue == -1) Browser.println ();
}
function view2Bound (inputValue)
{
Browser.println (', view2Bound ' + (inputValue));
}
function view3Bound (inputValue)
{
Browser.println (', view3Bound ' + (inputValue));
}
function view4Bound (inputValue)
{
Browser.println (', view4Bound ' + (inputValue));
}
function view5Bound (inputValue)
{
Browser.println (', view5Bound ' + (inputValue));
}
]]>
|
|
| 107 | </Script> |
| 108 | <!-- drive Script with TimeSensor clock --> |
| 109 | < ROUTE fromNode='TimingSequencer' fromField='value_changed' toNode='BindingSequencerEngine' toField='set_timeEvent'/> |
| 110 | <!-- Script will bind and unbind Viewpoint nodes --> |
| 111 | < ROUTE fromNode='BindingSequencerEngine' fromField='bindView1' toNode='View1' toField='set_bind'/> |
| 112 | < ROUTE fromNode='BindingSequencerEngine' fromField='bindView2' toNode='View2' toField='set_bind'/> |
| 113 | < ROUTE fromNode='BindingSequencerEngine' fromField='bindView3' toNode='View3' toField='set_bind'/> |
| 114 | < ROUTE fromNode='BindingSequencerEngine' fromField='bindView4' toNode='View4' toField='set_bind'/> |
| 115 | < ROUTE fromNode='BindingSequencerEngine' fromField='bindView5' toNode='ClickToAnimateView' toField='set_bind'/> |
| 116 | <!-- Viewpoint nodes report bind and unbind events to Script for recording results --> |
| 117 | < ROUTE fromNode='View1' fromField='isBound' toNode='BindingSequencerEngine' toField='view1Bound'/> |
| 118 | < ROUTE fromNode='View2' fromField='isBound' toNode='BindingSequencerEngine' toField='view2Bound'/> |
| 119 | < ROUTE fromNode='View3' fromField='isBound' toNode='BindingSequencerEngine' toField='view3Bound'/> |
| 120 | < ROUTE fromNode='View4' fromField='isBound' toNode='BindingSequencerEngine' toField='view4Bound'/> |
| 121 | <!-- Note that Script inputs do not cause Script outputs, and therefore no event loops occur. --> |
| 122 | <!-- It is possible to silence event-loop diagnostic warnings by separating the functionality of Script inputs and outputs into two separate Script nodes. --> |
| 123 | </Transform> |
| 124 | </Scene> |
| 125 | </X3D> |
