<?xml version="1.0" encoding="UTF-8"?>
|
2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
|
3 | <X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'> |
4 | <head> |
5 | <meta name='title' content='ColorPerVertexExamples.x3d'/> |
6 | <meta name='description' content='Geometry Polygons Nodes: Color, Coordinate, IndexedFaceSet, IndexedLineSet, PointSet'/> |
7 | <meta name='creator' content='Don Brutzman'/> |
8 | <meta name='created' content='5 September 2005'/> |
9 | <meta name='modified' content='11 May 2021'/> |
10 |

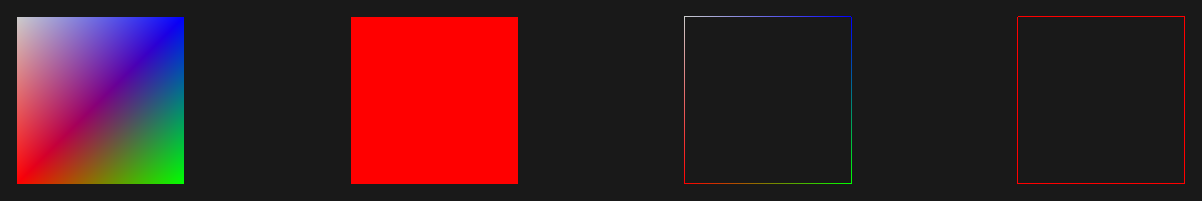

<meta name='Image' content='ColorPerVertexExamples.png'![]() |
11 | <meta name=' TODO ' content=' Blender import problems '/> |
12 |

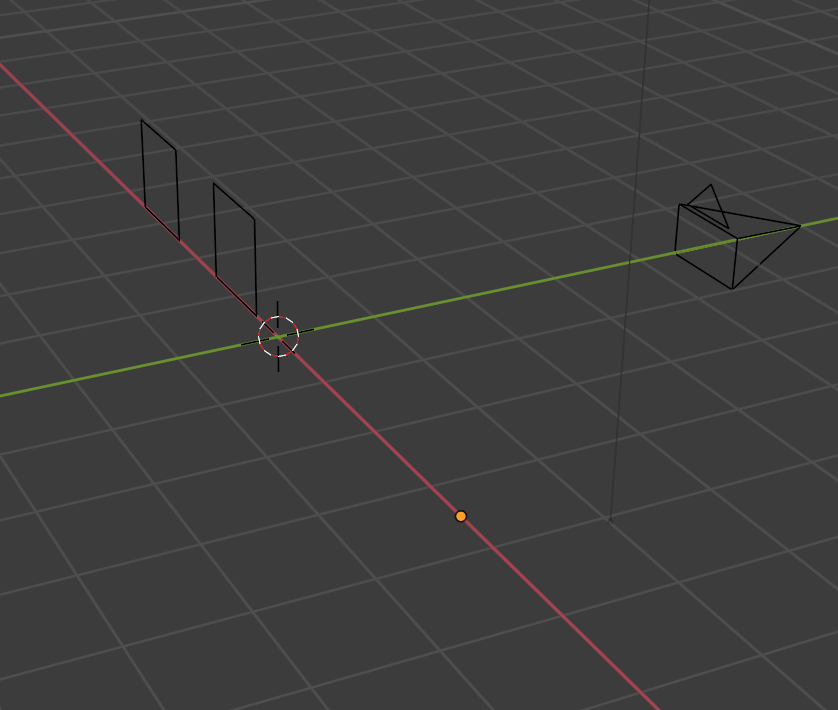

<meta name='Image' content='ColorPerVertexExamplesBlender.png'![]() |
13 | <meta name=' TODO ' content=' Xj3D rendering problems '/> |
14 |
<meta name='Image' content='ColorPerVertexExamplesXj3D.png'![]() |
15 | <meta name='reference' content='https://www.web3d.org/x3d/tooltips/X3dTooltips.html#IndexedFaceSet'/> |
16 | <meta name='reference' content='https://www.web3d.org/x3d/tooltips/X3dTooltips.html#IndexedLineSet'/> |
17 | <meta name='reference' content='https://www.web3d.org/x3d/tooltips/X3dTooltips.html#Coordinate'/> |
18 | <meta name='reference' content='https://www.web3d.org/x3d/tooltips/X3dTooltips.html#Color'/> |
19 | <meta name='rights' content='Copyright (c) 2005, Daly Realism and Don Brutzman'/> |
20 | <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter06GeometryPointsLinesPolygons/ColorPerVertexExamples.x3d'/> |
21 | <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/> |
22 | <meta name='license' content='../license.html'/> |
23 | </head> |
24 | <Scene> |
25 | <WorldInfo title='ColorPerVertexExamples.x3d'/> |
26 | <Viewpoint description='ColorPerVertex Examples' position='0 0 6'/> |
27 | <Background groundColor='0.1 0.1 0.1' skyColor='0.1 0.1 0.1'/> |
28 | <Transform translation='-0.5 0 0'> |
29 | <Transform translation='-3 0 0'> |
30 | <Shape> |
31 | <!-- Default settings: colorPerVertex='true' and solid='true' (single-sided polygon) --> |
32 | <IndexedFaceSet colorIndex='0 1 2 3 0 -1' coordIndex='0 1 2 3 0 -1'> |
33 |
<!-- Coordinate
FourPoints is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 --> <Coordinate DEF='FourPoints' point='0 0 0 1 0 0 1 1 0 0 1 0'/> |
34 |
<!-- Color
FourColors is a DEF node that has 2 USE nodes: USE_1, USE_2 --> <Color DEF='FourColors' color='1 0 0 0 1 0 0 0 1 0.8 0.8 0.8'/> |
35 | </IndexedFaceSet> |
36 | </Shape> |
37 | </Transform> |
38 | <Transform translation='-1 0 0'> |
39 | <Shape> |
40 | <!-- Non-default settings: colorPerVertex='false' and solid='false' (double-sided polygon) --> |
41 | <IndexedFaceSet colorPerVertex='false' solid='false' colorIndex='2' coordIndex='0 1 2 3 0 -1'> |
42 | <!-- Note that only 4 points are needed to create a 4-vertex polygon. --> |
43 | <Coordinate USE='FourPoints'/> |
44 | <ColorRGBA DEF='FourColorsRGBA' color='1 0 0 1 0 1 0 1 0 0 1 0.5 0.8 0.8 0.8 0'/> |
45 | </IndexedFaceSet> |
46 | </Shape> |
47 | </Transform> |
48 | <Transform translation='1 0 0'> |
49 | <Shape> |
50 | <!-- Student TODO: try different color indices. --> |
51 | <IndexedLineSet colorIndex='0 1 2 3 0 -1' coordIndex='0 1 2 3 0 -1'> |
52 | <Coordinate USE='FourPoints'/> |
53 | <Color USE='FourColors'/> |
54 | </IndexedLineSet> |
55 | </Shape> |
56 | </Transform> |
57 | <Transform translation='3 0 0'> |
58 | <Shape> |
59 | <!-- Note that 5 points are needed to create 4 complete line segments. --> |
60 | <IndexedLineSet colorPerVertex='false' colorIndex='0' coordIndex='0 1 2 3 0 -1'> |
61 | <Coordinate USE='FourPoints'/> |
62 | <Color USE='FourColors'/> |
63 | </IndexedLineSet> |
64 | </Shape> |
65 | </Transform> |
66 | </Transform> |
67 | </Scene> |
68 | </X3D> |
<!--
