X3D Model Documentation: ExtrusionRoomWalls.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' ExtrusionRoomWalls.x3d '/>

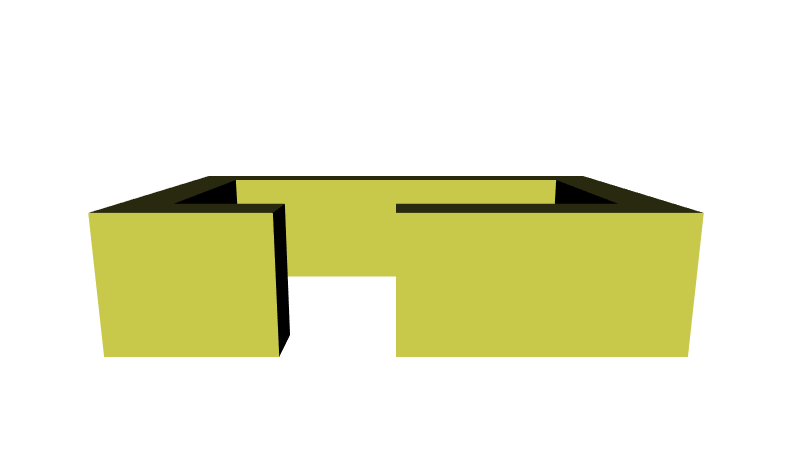

  6            <meta name='description' content='Wall definition for a room, defined as a cross section and extruded vertically.'/>
  7            <meta name='creator' content='Don Brutzman'/>
  8            <meta name='contributor' content='U.S. Naval Postgraduate School (NPS)'/>
  9            <meta name='created' content='3 September 2005'/>
 10            <meta name='modified' content='20 January 2024'/>
 11            <meta name='subject' content='Extrusion example'/>
 12            <meta name='reference' content='https://en.wikipedia.org/wiki/Extrusion'/>
 13            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter06GeometryPointsLinesPolygons/ExtrusionRoomWalls.x3d '/>
 14            <meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 15            <meta name='license' content='../license.html'/>
 16       </head>
<!--
<!-- to top DEF node index: Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3
-->
 17       <Scene>
 18            <WorldInfo title='ExtrusionRoomWalls.x3d'/>
 19            <Viewpoint description='Extrusion Room Walls' orientation='1 0 0 -0.2' position='5 4 15'/>
 20            <Viewpoint description='Oblique view from above' orientation='1 0 0 -0.78' position='5 10 13'/>
 21            <Viewpoint description='Overhead view' orientation='1 0 0 -1.57' position='5 12 3'/>
 22            <Background skyColor='1 1 1'/>
 23            <Transform>
 24                 <Shape>
 25                      <!-- be sure to order cross-section points so that normal is upward -->
 26                      <Extrusion convex='false' crossSection='0 0 0 6 3 6 3 5 1 5 1 1 9 1 9 5 5 5 5 6 10 6 10 0 0 0' spine='0 0 0 0 2.5 0'>
 27                           <!-- spine is open, crossSection is closed -->
 28                      </Extrusion>
 29                      <Appearance>
 30                           <Material diffuseColor='0.8 0.8 0.3'/>
 31                      </Appearance>
 32                 </Shape>
 33            </Transform>
 34       </Scene>
 35  </X3D>
<!--
