X3D Model Documentation: HelloX3dTrademark.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <!-- X3D&#8482; is a trademark of the Web3D Consortium Incorporated, standing for Extensible 3D Graphics (X3D). -->
  5       <head>
  6            <meta name='titlecontent='HelloX3dTrademark.x3d'/>
  7            <meta name='creatorcontent='Don Brutzman'/>
  8            <meta name='createdcontent='6 June 2001'/>
  9            <meta name='modifiedcontent='20 October 2019'/>

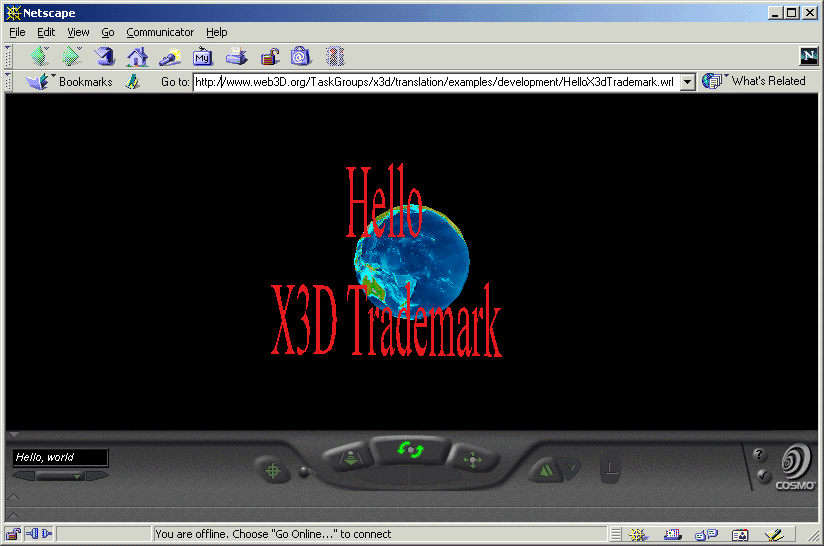

 10            <meta name='descriptioncontent='Simple example showing spinning globe and X3D&#8482; trademark text. X3D (tm) is a trademark of the Web3D Consortium Inc. X3D stands for Extensible 3D Graphics (X3D), an encoding of VRML using XML. X3D has been defined since 1998. Trademark registration pending. VRML is the Virtual Reality Modeling Language (VRML), International Standard ISO/IEC 14772-1:1997. XML is the Extensible Markup Language (XML), a Recommendation of the World Wide Web Consortium (W3C).'/>
 11            <meta name='Imagecontent='HelloX3dTrademark.png'/>
 12            <meta name='referencecontent='https://www.web3d.org'/>
 13            <meta name='referencecontent='https://www.web3d.org/x3d'/>
 14            <meta name='referencecontent='https://www.web3d.org/Specifications/VRML97'/>
 15            <meta name='referencecontent='http://www.w3.org/XML'/>
 16            <meta name='identifiercontent='https://www.web3d.org/x3d/content/examples/Basic/development/HelloX3dTrademark.x3d'/>
 17            <meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 18            <meta name='licensecontent='../license.html'/>
 19       </head>
<!--

<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: EarthCoordinateSystem, GlobeNotToScale, MiniWorld, OrbitalTimeInterval, SimpleGeoStationarySatellite, SpinThoseThings

Index for Viewpoint node: Viewpoint_1
-->
 20       <Scene>
 21            <WorldInfo info='"an introductory scene"title='Hello X3D&#8482; Trademark (tm)'/>
 22            <Viewpoint description='Hello, worldorientation='0 1 0 3.14159position='0 0 -8'/>
 23
          <!-- ROUTE information for EarthCoordinateSystem node:  [from SpinThoseThings.value_changed to rotation ] -->
          <Transform DEF='EarthCoordinateSystem'>
 24                 <Group DEF='MiniWorld'>
 25                      <Shape>
 26                           <Appearance>
 27                                <ImageTexture   url=' "earth-topo.png " "earth-topo.gif " "earth-topo-small.gif " "https://www.web3d.org/x3d/content/examples/Basic/development/earth-topo.png " "https://www.web3d.org/x3d/content/examples/Basic/development/earth-topo.gif " "https://www.web3d.org/x3d/content/examples/Basic/development/earth-topo-small.gif " '/>
 28                           </Appearance>
 29                           <Sphere DEF='GlobeNotToScale'/>
 30                      </Shape>
 31                 </Group>
 32                 <Transform DEF='SimpleGeoStationarySatellitescale='0.1 0.3 0.1translation='0 0 4'>
 33                      <Shape>
 34                           <Appearance>
 35                                <Material diffuseColor='0.9 0.1 0.1'/>
 36                           </Appearance>
 37                           <Text string='"Hello" "X3D Trademark (tm)"'>
 38                                <FontStyle justify='"MIDDLE" "MIDDLE"size='3'/>
 39                           </Text>
 40                      </Shape>
 41                 </Transform>
 42            </Transform>
 43
          <!-- ROUTE information for OrbitalTimeInterval node:  [from fraction_changed to SpinThoseThings.set_fraction ] -->
          <TimeSensor DEF='OrbitalTimeIntervalcycleInterval='12.0loop='true'/>
 44
          <!-- ROUTE information for SpinThoseThings node:  [from OrbitalTimeInterval.fraction_changed to set_fraction ] [from value_changed to EarthCoordinateSystem.rotation ] -->
          <OrientationInterpolator DEF='SpinThoseThingskey='0.00 0.25 0.50 0.75 1.00keyValue='0 1 0 0 0 1 0 1.57079 0 1 0 3.14159 0 1 0 4.7123889 0 1 0 6.2831852'/>
 45            < ROUTE  fromNode='OrbitalTimeInterval' fromField='fraction_changed' toNode='SpinThoseThings' toField='set_fraction'/>
 46            < ROUTE  fromNode='SpinThoseThings' fromField='value_changed' toNode='EarthCoordinateSystem' toField='rotation'/>
 47       </Scene>
 48  </X3D>
<!--

<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: EarthCoordinateSystem, GlobeNotToScale, MiniWorld, OrbitalTimeInterval, SimpleGeoStationarySatellite, SpinThoseThings

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, FontStyle, Group, head, ImageTexture, Material, meta, OrientationInterpolator, ROUTE, Scene, Shape, Sphere, Text, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types

Event Graph ROUTE Table with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

OrbitalTimeInterval
TimeSensor
fraction_changed
SFFloat

ROUTE
event to
(1)
SpinThoseThings
OrientationInterpolator
set_fraction
SFFloat
then



SpinThoseThings
OrientationInterpolator
value_changed
SFRotation

ROUTE
event to
(2)
EarthCoordinateSystem
Transform
rotation
SFRotation
Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
