element Text

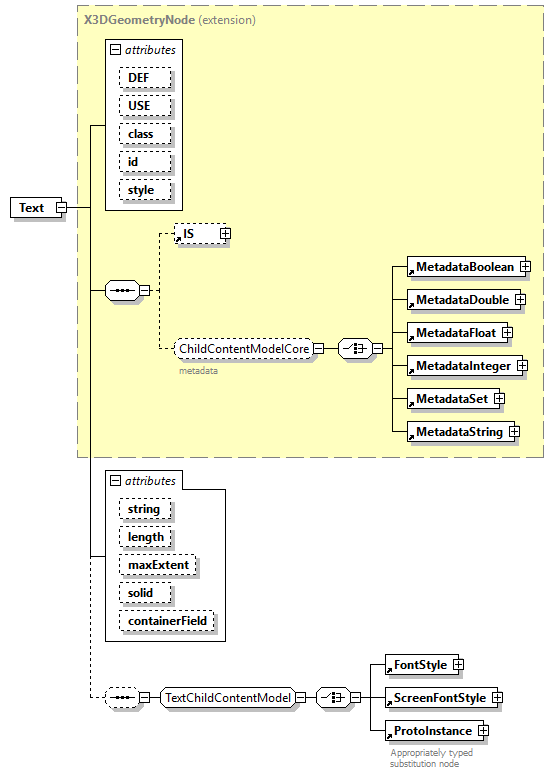

diagram x3d-4.0_diagrams/x3d-4.0_p240.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString FontStyle ScreenFontStyle ProtoInstance
used by
group GeometryContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

string  MFString
length  MFFloat
appinfo
<xs:minInclusive value="0"/>
maxExtent  derived by: SFFloat    0.0
solid  SFBool    false
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="lineBounds" type="MFVec2f" fixed="outputOnlyField"/>
<xs:attribute name="origin" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="solid" type="SFBool" default="false" fixed="initializeOnlyField"/>
<xs:attribute name="textBounds" type="SFVec2f" fixed="outputOnlyField"/>
<xs:element name="fontStyle" type="SFNode" fixed="inputOutputField" default="X3DFontStyleNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Text"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Text">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="lineBounds" type="MFVec2f" fixed="outputOnlyField"/>

<xs:attribute name="origin" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="solid" type="SFBool" default="false" fixed="initializeOnlyField"/>

<xs:attribute name="textBounds" type="SFVec2f" fixed="outputOnlyField"/>

<xs:element name="fontStyle" type="SFNode" fixed="inputOutputField" default="X3DFontStyleNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Text"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/text.html#Text"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:sequence minOccurs="0">

<xs:group ref="TextChildContentModel"/>

</xs:sequence>

<xs:attribute name="string" type="MFString"/>

<xs:attribute name="length" type="MFFloat">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="maxExtent" default="0.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="solid" type="SFBool" default="false"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Text/@string
type MFString
source <xs:attribute name="string" type="MFString"/>

attribute Text/@length
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation
appinfo
<xs:minInclusive value="0"/>
source <xs:attribute name="length" type="MFFloat">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Text/@maxExtent
type restriction of SFFloat
properties
default 0.0
facets
Kind Value Annotation
minInclusive 0
pattern \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="maxExtent" default="0.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Text/@solid
type SFBool
properties
default false
source <xs:attribute name="solid" type="SFBool" default="false"/>

attribute Text/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
