| 10 X3D Scenes | Scene Descriptions | |
|---|---|---|
|
Figure 16.1 Colored Point Set Scatter Plot | A scatter plot with the points colored using colors from a Color node. |
|
Figure 16.2 Colored Lines Plot | A line plot with the polylines colored using colors from a Color node. |
|
Figure 16.3 Colored Lines Starburst | A star burst of lines colored using colors from a Color node, select second viewpoint for animation. |
|
Figure 16.3 Colored Lines Starburst With Axes | A line plot with the polylines colored using colors from a ColorNode. |
|
Figure 16.4 Colored Book Faces | A book with its faces individually colored using colors from a ColorNode. |
|
Figure 16.4 Colored Book Faces With Axes | A book with its faces individually colored using colors from a Color node. |
|
Figure 16.5 Log Fire Colored Faces | A log and fire using faces colored vertex-by-vertex with colors from a ColorNode. |
|
Figure 16.5 Log Fire Colored Faces With Axes | A log and fire using faces colored vertex-by-vertex with colors from a Color node. |
|
Figure 16.6 Colored Elevation Grid Checkerboard | A checkerboard built using elevation-grid squares and colored using colors from a Color node. |
|

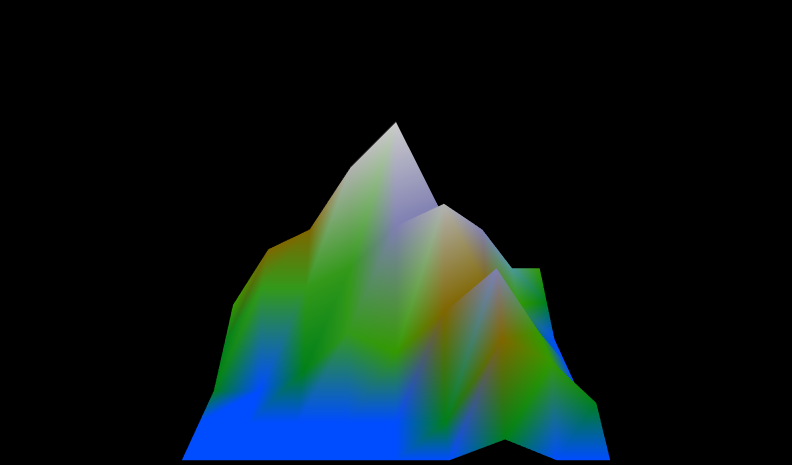

Figure 16.7 Vertex Colored Elevation Grid Mountain | A mountain built using ElevationGrid points and colored vertex-by-vertex using colors from a Color node. Compare Figure14.2ElevationGridMountain.x3d, Figure16.7VertexColoredElevationGridMountain.x3d and Figure17.08bTexturedElevationGridMountain.x3d |
Online at http://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter16-Color
Master source code archive is under subversion control at
http://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter16-Color
|
|
|
|
|
|
Also available: current and archived nightly builds and distributions of these examples, all published under an Open-Source License.
The X3D Resources: Examples page and Savage Developers Guide provide more information about the production of this archive.
