[X3D-Ecosystem] x3d.py. NavigationInfo.type and url fields.

[John Carlson]

Don, this is a separate issue, separate from X3DJSAIL.  You have been
provided the correct information many times.  You have been pointed at the
spec many times you list below many times.  Aaron was addressed in this
message, not you.  If you want an example of correct MFStrings in JSON,
beyond what I’ve provided, look at url fields in X3D JSON.

AFAIK, X3dToJson web pages has been correct for a long time and
X3dToJson.xslt was correct until other logic got introduced.  At the time,
I complained, and I continued to complain and we kept getting stuck in the
same loop.  I thought that Aaron might have a solution for RawKee and
x3d.py, so I messaged him.

Please return to SourceForge, I have provided a one-liner as to what I
expect.

Thanks,

John


On Thu, Aug 7, 2025 at 12:08 PM Don Brutzman <don.brutzman at gmail.com> wrote:

> John, thank you for identifying this problem when converting to JSON.  The
> detailed description that you have crafted provides a good example of
> "almost a repeatable issue report".
>
> You have provided *valid input .x3d* and a reportedly* improper output in
> JSON.*
>
> Please provide what you think the *correct JSON output* needs to be.
>
> I looked online and quickly found
>
>    - X3D Example Archives: X3D4WA, X3D for Web Authors, Chapter 04
>    Viewing Navigation, Navigation Info Example
>    -
>    https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExampleIndex.html
>    -
>    https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExample.x3d
>    -
>    https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExample.json
>
> which includes the (correctly expressed, highly validated) .x3d node
>
> <NavigationInfo DEF='FLY_FIRST
> <https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExample.html#FLY_FIRST>
> ' type='"FLY" "ANY"'/>
>
>
> but then provides the (awkwardly expressed) .json conversion result:
>
>           { "NavigationInfo":
>             {
>               "@DEF":"FLY_FIRST",
>               "@type":"\"FLY\" \"ANY\""
>             }
>           },
>
> Wondering, is that conversion correct?  (Am guessing no, it is not)
>
> Based on the X3dToJson conversion page, I'd expect something different:
>
>    - X3D to JSON Stylesheet Converter: Examples, Origami Cranes
>    - https://www.web3d.org/x3d/stylesheets/X3dToJson.html#OrigamiCranes
>
> with (direct link to fragment
> <https://www.web3d.org/x3d/stylesheets/X3dToJson.html#OrigamiCranes:~:text=%7B%20%22NavigationInfo%22%3A%0A%20%20%20%20%20%20%20%20%20%20%20%20%7B%0A%20%20%20%20%20%20%20%20%20%20%20%20%20%20%22%40type%22%3A%5B%22NONE%22%5D%0A%20%20%20%20%20%20%20%20%20%20%20%20%7D%0A%20%20%20%20%20%20%20%20%20%20%7D%2C>),
> then adapted here for your example:
>
>
> *          { "NavigationInfo":
>             {
>               "@type":["FLY" "ANY"]
>             }
>           },*
>
> *Wondering, do you think this the proper way to express that X3D MFString
> array in JSON?*
>

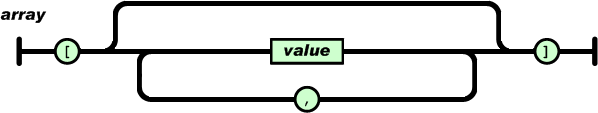

> Based on the "railroad track" diagrams for JSON arrays and MFString, the square brackets look good to me:
>
>
>    - X3D to JSON Stylesheet Converter: JSON Arrays
>    - https://www.web3d.org/x3d/stylesheets/X3dToJson.html#arrays
>    -
>    - [image: image.png]
>    -
>    MFString is array of quoted SFString (XML attribute) values JSON array of *string* type
>
>
> p.s. (One more point, please: let's proceed step by step... There is no need to discuss Python whatsoever in this issue, that is a separate issue we can tackle after this.  Including it as part of the mix here only adds unnecessary complexity/confusion.)
>
>
> Thanks for all efforts.
>
> v/r Don
>
>
>
> On Thu, Aug 7, 2025 at 12:14 AM John Carlson <yottzumm at gmail.com> wrote:
>
>> For Aaron:  Another notice on PythonSeriializer.js and x3d.py
>>
>> PythonSerializer.js translates NavigationInfo.type to:
>>
>> NavigationInfo8 = x3d.NavigationInfo()
>> NavigationInfo8.type = ["ANY","EXAMINE","WALK","FLY","LOOKAT"]
>>
>> Which appears OK to me.
>>
>> When I get X3D JSON output from x3d.py, I get:
>>
>>     {
>>         "NavigationInfo":
>>         {
>>       {
>>         "@type":""ANY" "EXAMINE" "WALK" "FLY" "LOOKAT""
>>       }
>>     },
>>
>>
>> Which doesn't look right at all.
>>
>> I pretty much know that X3D JSON output from x3d.py has been iffy.  I
>> wonder if Aaron has better output as X3D JSON with url fields especially.
>> Can any JSON generating Python be shared yet?  Maybe after SIGGRAPH and
>> Web3D Conference?
>>
>> Python is attached,and original .x3d.as well as JSON output
>>
>> Thanks for any additions to x3d.py!
>>
>> I am looking at the GraalPySerializer.js and realizing I left some
>> semicolons in.  Retesting is going well, but apparently, I need to set up a
>> function or alias in bash to do things right.
>>
>> John
>>
>
