[X3D-Ecosystem] x3d.py. NavigationInfo.type and url fields.

[Don Brutzman]

So sorry John but I really have no idea what you are talking about in your
response.

I just looked but am not finding what you refer to in the tickets on
sourceforge, there are many overlapping entries regarding converters.  It
is challenging but I will continue to tackle reported problems there, one
by one.

   - https://sourceforge.net/p/x3d/tickets/

Confirmation by anyone on JSON MFString syntax will help, all shared
understanding is welcome.  Recap, best example so far seems to be

*          { "NavigationInfo":
            {
              "@type":["FLY" "ANY"]
            }
          },*

Given best assessments and well-formed JSON checks regarding syntax, I will
work on

   - updating X3dToJson.xslt to match the MFString "railroad tracks" syntax,
   - updating autogenerated x3d.py serialization into JSON to perform
   MFString representations similarly,
   - (someday) produce an X3D JSON Schema autogenerated from X3DUOM to
   support type-aware X3D JSON validation.

Hope this helps.  Very respectfully, Don

On Thu, Aug 7, 2025 at 10:41 AM John Carlson <yottzumm at gmail.com> wrote:

> Don, this is a separate issue, separate from X3DJSAIL.  You have been
> provided the correct information many times.  You have been pointed at the
> spec many times you list below many times.  Aaron was addressed in this
> message, not you.  If you want an example of correct MFStrings in JSON,
> beyond what I’ve provided, look at url fields in X3D JSON.
>
> AFAIK, X3dToJson web pages has been correct for a long time and
> X3dToJson.xslt was correct until other logic got introduced.  At the time,
> I complained, and I continued to complain and we kept getting stuck in the
> same loop.  I thought that Aaron might have a solution for RawKee and
> x3d.py, so I messaged him.
>
> Please return to SourceForge, I have provided a one-liner as to what I
> expect.
>
> Thanks,
>
> John
>
>
> On Thu, Aug 7, 2025 at 12:08 PM Don Brutzman <don.brutzman at gmail.com>
> wrote:
>
>> John, thank you for identifying this problem when converting to JSON.
>> The detailed description that you have crafted provides a good example of
>> "almost a repeatable issue report".
>>
>> You have provided *valid input .x3d* and a reportedly* improper output
>> in JSON.*
>>
>> Please provide what you think the *correct JSON output* needs to be.
>>
>> I looked online and quickly found
>>
>>    - X3D Example Archives: X3D4WA, X3D for Web Authors, Chapter 04
>>    Viewing Navigation, Navigation Info Example
>>    -
>>    https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExampleIndex.html
>>    -
>>    https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExample.x3d
>>    -
>>    https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExample.json
>>
>> which includes the (correctly expressed, highly validated) .x3d node
>>
>> <NavigationInfo DEF='FLY_FIRST
>> <https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter04ViewingNavigation/NavigationInfoExample.html#FLY_FIRST>
>> ' type='"FLY" "ANY"'/>
>>
>>
>> but then provides the (awkwardly expressed) .json conversion result:
>>
>>           { "NavigationInfo":
>>             {
>>               "@DEF":"FLY_FIRST",
>>               "@type":"\"FLY\" \"ANY\""
>>             }
>>           },
>>
>> Wondering, is that conversion correct?  (Am guessing no, it is not)
>>
>> Based on the X3dToJson conversion page, I'd expect something different:
>>
>>    - X3D to JSON Stylesheet Converter: Examples, Origami Cranes
>>    - https://www.web3d.org/x3d/stylesheets/X3dToJson.html#OrigamiCranes
>>
>> with (direct link to fragment
>> <https://www.web3d.org/x3d/stylesheets/X3dToJson.html#OrigamiCranes:~:text=%7B%20%22NavigationInfo%22%3A%0A%20%20%20%20%20%20%20%20%20%20%20%20%7B%0A%20%20%20%20%20%20%20%20%20%20%20%20%20%20%22%40type%22%3A%5B%22NONE%22%5D%0A%20%20%20%20%20%20%20%20%20%20%20%20%7D%0A%20%20%20%20%20%20%20%20%20%20%7D%2C>),
>> then adapted here for your example:
>>
>>
>> *          { "NavigationInfo":
>>             {
>>               "@type":["FLY" "ANY"]
>>             }
>>           },*
>>
>> *Wondering, do you think this the proper way to express that X3D MFString
>> array in JSON?*
>>

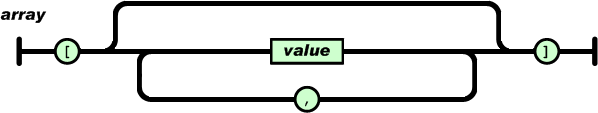

>> Based on the "railroad track" diagrams for JSON arrays and MFString, the square brackets look good to me:
>>
>>
>>    - X3D to JSON Stylesheet Converter: JSON Arrays
>>    - https://www.web3d.org/x3d/stylesheets/X3dToJson.html#arrays
>>    -
>>    - [image: image.png]
>>    -
>>    MFString is array of quoted SFString (XML attribute) values JSON array of *string* type
>>
>>
>> p.s. (One more point, please: let's proceed step by step... There is no need to discuss Python whatsoever in this issue, that is a separate issue we can tackle after this.  Including it as part of the mix here only adds unnecessary complexity/confusion.)
>>
>>
>> Thanks for all efforts.
>>
>> v/r Don
>>
>>
>>
>> On Thu, Aug 7, 2025 at 12:14 AM John Carlson <yottzumm at gmail.com> wrote:
>>
>>> For Aaron:  Another notice on PythonSeriializer.js and x3d.py
>>>
>>> PythonSerializer.js translates NavigationInfo.type to:
>>>
>>> NavigationInfo8 = x3d.NavigationInfo()
>>> NavigationInfo8.type = ["ANY","EXAMINE","WALK","FLY","LOOKAT"]
>>>
>>> Which appears OK to me.
>>>
>>> When I get X3D JSON output from x3d.py, I get:
>>>
>>>     {
>>>         "NavigationInfo":
>>>         {
>>>       {
>>>         "@type":""ANY" "EXAMINE" "WALK" "FLY" "LOOKAT""
>>>       }
>>>     },
>>>
>>>
>>> Which doesn't look right at all.
>>>
>>> I pretty much know that X3D JSON output from x3d.py has been iffy.  I
>>> wonder if Aaron has better output as X3D JSON with url fields especially.
>>> Can any JSON generating Python be shared yet?  Maybe after SIGGRAPH and
>>> Web3D Conference?
>>>
>>> Python is attached,and original .x3d.as well as JSON output
>>>
>>> Thanks for any additions to x3d.py!
>>>
>>> I am looking at the GraalPySerializer.js and realizing I left some
>>> semicolons in.  Retesting is going well, but apparently, I need to set up a
>>> function or alias in bash to do things right.
>>>
>>> John
>>>
>>
